EPS 850  High Temperature Masking Heat-resistant Silicone round Foam Cords

Ideal for applications that are exposed to extreme temperatures (-40 ° C) to + 200 ° C)

Density (specific weight): 250 ± 40 Rg / m³
Shore hardness: 45 ± 5 (country '00') <5 (Country 'A')
Tensile strength 0.75 N / mm² Tensile strength
Elongation at break: 100%
Min. Temperature: -40 ° C
Max. Temperature: + 200 ° C
Compression set (22h at 70 ° C): 15%.

Suitable for food applications and physiologically harmless.

Prosicon® Silicone Foam withstands temperatures between -40° C and max. +200° C.

High Temperature  Masking Heat-resistant  Silicone round Foam Cords

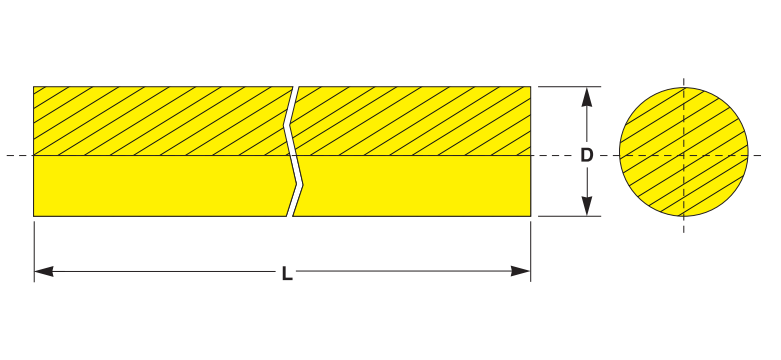

D L (Meter) Type Article No. Selection
2.00 25.00 Metrisch   EPS 850 / 02
2.40 25.00 Metrisch   EPS 850 / 02.4
3.00 25.00 Metrisch   EPS 850 / 03
3.60 25.00 Metrisch   EPS 850 / 03.6
4.00 25.00 Metrisch   EPS 850 / 04
4.60 25.00 Metrisch   EPS 850 / 04.6
5.00 25.00 Metrisch   EPS 850 / 05
5.10 25.00 Metrisch   EPS 850 / 05.1
6.00 25.00 Metrisch   EPS 850 / 06
7.00 25.00 Metrisch   EPS 850 / 07
8.00 25.00 Metrisch   EPS 850 / 08
9.00 25.00 Metrisch   EPS 850 / 09
10.00 25.00 Metrisch   EPS 850 / 10
10.80 25.00 Metrisch   EPS 850 / 10.8
12.00 25.00 Metrisch   EPS 850 / 12
13.00 25.00 Metrisch   EPS 850 / 13
15.00 25.00 Metrisch   EPS 850 / 15
16.00 25.00 Metrisch   EPS 850 / 16
18.00 25.00 Metrisch   EPS 850 / 18
20.00 25.00 Metrisch   EPS 850 / 20
25.00 25.00 Metrisch   EPS 850 / 25
26.00 25.00 Metrisch   EPS 850 / 26
29.00 25.00 Metrisch   EPS 850 / 29
30.00 25.00 Metrisch   EPS 850 / 30
31.00 25.00 Metrisch   EPS 850 / 31
36.00 10.00 Metrisch   EPS 850 / 36
42.00 10.00 Metrisch   EPS 850 / 42
47.00 10.00 Metrisch   EPS 850 / 47
50.00 10.00 Metrisch   EPS 850 / 50
55.00 10.00 Metrisch   EPS 850 / 55
60.00 10.00 Metrisch   EPS 850 / 60
2.3622 30.48 British Imperial System   EPS 850 / 0093
3.1750 15.24 British Imperial System   EPS 850 / 0125
3.9624 15.24 British Imperial System   EPS 850 / 0156
4.7498 15.24 British Imperial System   EPS 850 / 0187
6.3500 15.24 British Imperial System   EPS 850 / 0250
6.9850 15.24 British Imperial System   EPS 850 / 0275
7.9248 15.24 British Imperial System   EPS 850 / 0312
9.5250 15.24 British Imperial System   EPS 850 / 0375
11.0998 15.24 British Imperial System   EPS 850 / 0437
11.8110 7.62 British Imperial System   EPS 850 / 0465
12.7000 7.62 British Imperial System   EPS 850 / 0500
14.2748 7.62 British Imperial System   EPS 850 / 0562
15.8750 7.62 British Imperial System   EPS 850 / 0625
17.4498 7.62 British Imperial System   EPS 850 / 0687
19.0500 7.62 British Imperial System   EPS 850 / 0750
20.6502 7.62 British Imperial System   EPS 850 / 0813
22.2250 7.62 British Imperial System   EPS 850 / 0875
23.7998 7.62 British Imperial System   EPS 850 / 0937
25.4000 7.62 British Imperial System   EPS 850 / 1000
28.5750 7.62 British Imperial System   EPS 850 / 1125
31.7500 7.62 British Imperial System   EPS 850 / 1250
38.1000 7.62 British Imperial System   EPS 850 / 1500
44.4500 7.62 British Imperial System   EPS 850 / 1750
50.8000 7.62 British Imperial System   EPS 850 / 2000

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
