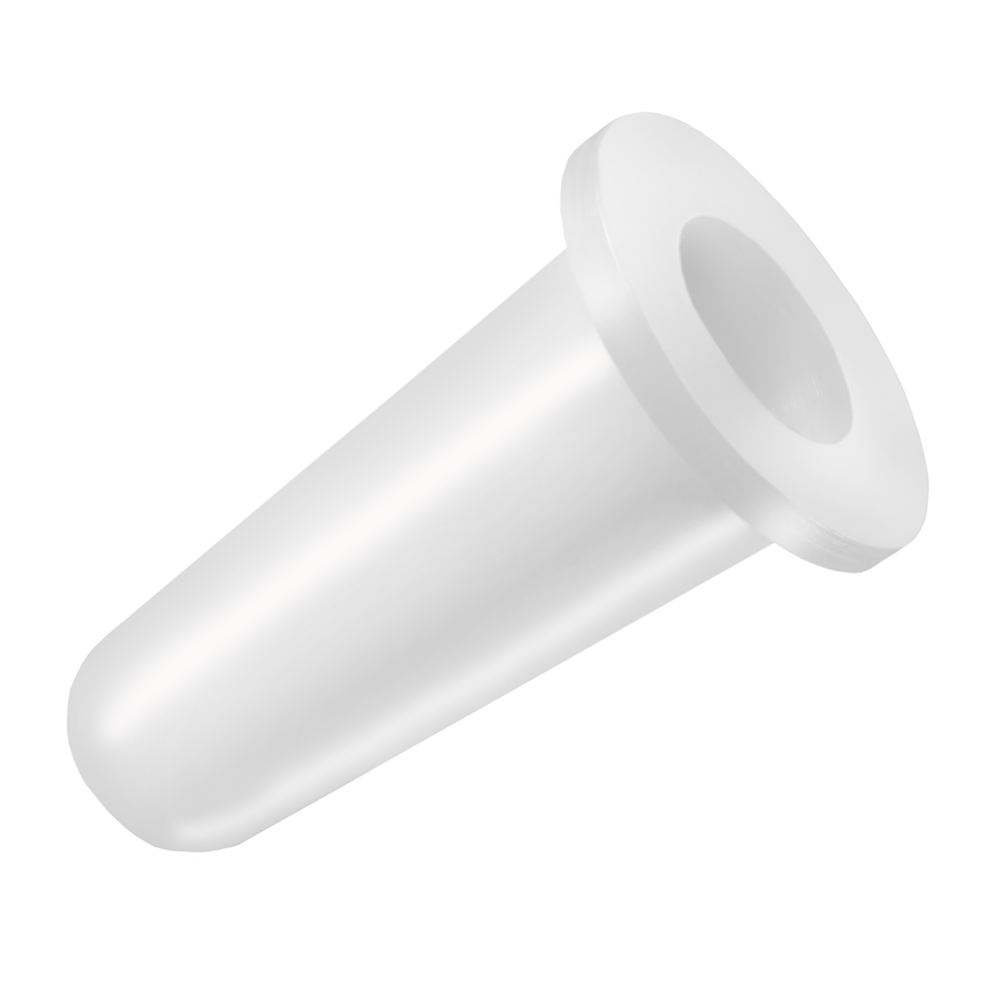

EPS 150  High Temperature Masking Silicone Cone Caps / Plugs

Dual Role Application.
Can be used as a plug or cap due to conical shaft design, ideal for closing grub screws, bolts and fitting bores with contact surfaces.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking Silicone Cone Caps / Plugs


d1 d2 D H Pack Article No. Selection
6.35 3.30 12.70 23.01 500   EPS 150 / 0250-0130
8.03 5.49 12.70 25.40 500   EPS 150 / 0316-0216
8.51 4.50 15.88 25.40 500   EPS 150 / 0335-0177
10.01 5.00 16.51 27.99 500   EPS 150 / 0394-0197
10.16 5.84 16.13 27.94 250   EPS 150 / 0400-0230
14.00 8.00 19.05 35.99 250   EPS 150 / 0551-0315
17.50 11.51 24.89 38.10 250   EPS 150 / 0689-0453
19.48 13.51 27.94 51.03 100   EPS 150 / 0767-0532
20.80 14.81 25.40 49.00 100   EPS 150 / 0819-0583
22.00 16.00 30.99 53.01 100   EPS 150 / 0866-0630

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
