EPS 125  Tapered Silicone Plugs - hollow core

Designed to perfectly fit pipes, bore holes and internal threads.

Hollow plug allows it to be used as a cap.

Conical shaft, without collar, lightweight construction with hollow core, high temperature masking.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

Tapered Silicone Plugs - hollow core

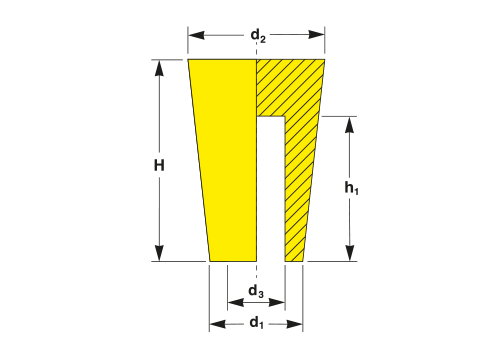

d1 d2 H d3 h1 Article No. Selection
25.00 26.95 25.40 10.75 19.05   EPS 125/ 1061
1.00 27.00 25.40 12.50 19.05   EPS 125/ 1063
0.00 27.94 25.40 13.00 19.05   EPS 125/ 1100
19.00 32.00 25.40 15.50 19.05   EPS 125/ 1260
0.00 33.99 25.40 17.00 19.05   EPS 125/ 1338
79.00 30.00 25.40 14.50 19.05   EPS 125/ 1181
97.00 36.98 25.40 19.90 19.05   EPS 125/ 1456
18.00 36.53 25.40 17.48 19.05   EPS 125/ 1438
94.00 34.16 25.40 15.37 19.05   EPS 125/ 1345
99.00 38.99 25.40 21.80 19.05   EPS 125/ 1535
2.00 41.00 25.40 25.00 19.05   EPS 125/ 1614
35.00 41.28 25.40 20.65 19.05   EPS 125/ 1625
4.96 52.98 25.40 32.26 19.05   EPS 125/ 2086
8.01 55.96 25.40 35.31 19.05   EPS 125/ 2203
0.01 62.71 25.40 30.96 15.88   EPS 125/ 2469
0.01 62.99 25.40 30.96 15.88   EPS 125/ 2480
3.98 63.50 25.40 34.93 15.88   EPS 125/ 2500
3.98 64.01 25.40 34.93 15.88   EPS 125/ 2520
7.94 68.28 25.40 38.89 15.88   EPS 125/ 2688
7.99 68.00 25.40 51.00 19.05   EPS 125/ 2677
1.93 75.01 25.40 42.88 15.88   EPS 125/ 2953
1.93 75.01 34.93 42.88 25.40   EPS 125/ 2953-1375
8.00 81.99 38.10 42.60 25.40   EPS 125/ 3228-1500
2.64 76.45 25.40 53.59 15.88   EPS 125/ 3010
6.20 88.90 38.10 50.80 25.40   EPS 125/ 3500-1500
5.01 89.99 25.40 49.61 12.70   EPS 125/ 3543-1000
5.01 89.99 38.99 62.50 30.00   EPS 125/ 3543-1535
2.55 101.60 38.10 57.15 25.40   EPS 125/ 4000-1500
2.98 103.00 38.99 71.50 30.00   EPS 125/ 4055-1535

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
