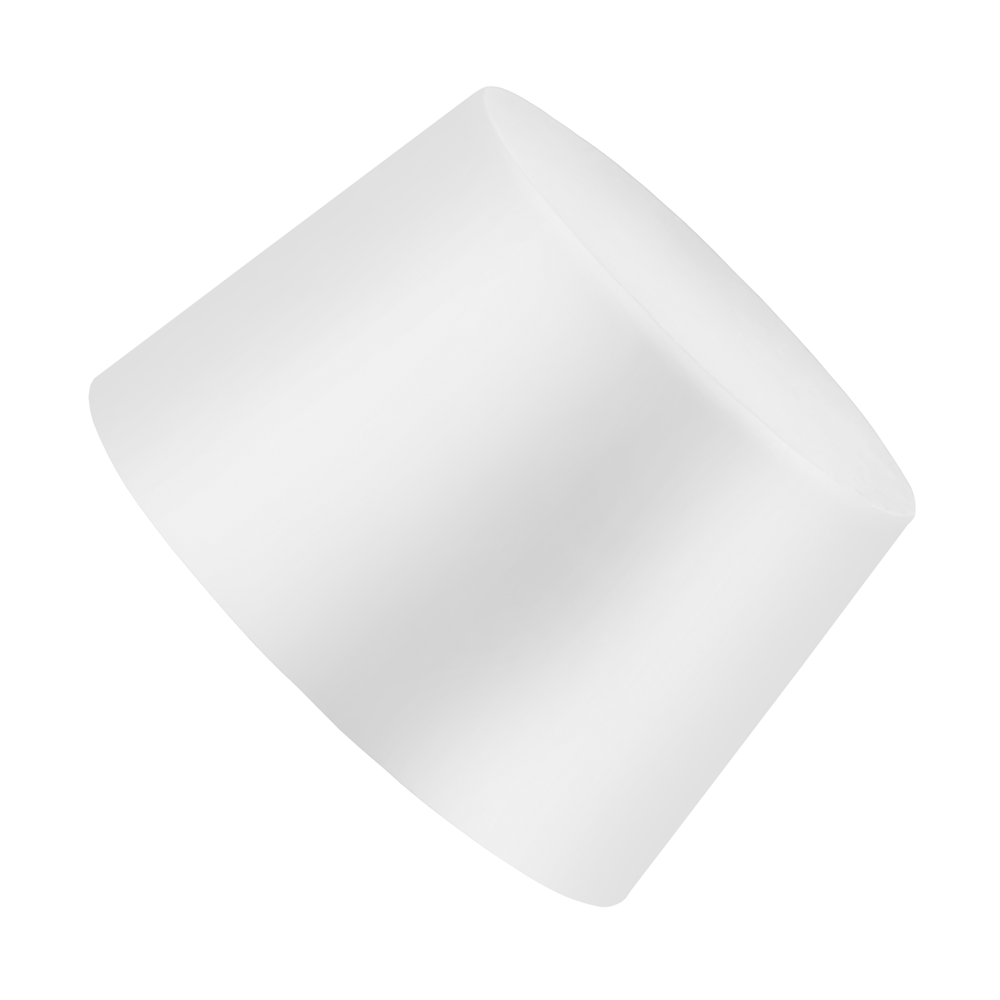

EPS 100  Tapered Silicone Plugs - solid

Designed to perfectly fit pipes, bore holes and internal threads.

Conical shaft, without collar, solid construction, high temperature masking.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

Tapered Silicone Plugs - solid


d1 d2 H Metric UNF Pack Article No. Selection
0.41 1.60 15.88 1000   EPS 100 / 0063-0625
0.41 7.09 24.99 1000   EPS 100 / 0279-0984
0.51 1.98 19.05 M 2 1000   EPS 100 / 0078-0750
0.51 1.98 25.40 M 2 1000   EPS 100 / 0078-1000
0.79 3.18 15.88 M 3 1000   EPS 100 / 0125
0.81 2.54 15.88 1000   EPS 100 / 0100-0625
0.81 2.54 25.40 1000   EPS 100 / 0100-1000
1.19 4.78 55.88 M 4 1000   EPS 100 / 0188-2200
1.19 5.00 27.89 1000   EPS 100 / 0197-1100
1.19 5.49 38.10 M 3 M 4 M 5 1000   EPS 100 / 0216-1500
1.50 4.50 15.01 1000   EPS 100 / 0177-0591
1.60 3.18 15.88 M 3 1000   EPS 100 / 0125-0625
1.60 4.75 15.88 M 3 M 4 1000   EPS 100 / 0187-0625
1.60 4.75 19.05 M 3 M 4 1000   EPS 100 / 0187-0750
1.60 4.75 25.40 M 3 M 4 1000   EPS 100 / 0187-1000
1.60 5.08 19.05 1000   EPS 100 / 0200-0750
2.20 7.01 24.99 1000   EPS 100 / 0276-0984
2.79 4.75 10.01 M 3 M 4 1000   EPS 100 / 0187-0394
3.00 7.00 19.99 1000   EPS 100 / 0276-0787
3.18 6.35 19.05 M 5 M 6 1/4“ 1000   EPS 100 / 0250-0750
3.18 6.35 25.40 M 5 M 6 1/4“ 1000   EPS 100 / 0250-1000
3.18 9.53 31.75 M 8 5/8“ 500   EPS 100 / 0375-1250
3.20 12.70 50.80 M 10 3/8“ 250   EPS 100 / 0500-2000
3.40 3.70 7.00 1000   EPS 100 / 0146-0276
3.99 8.00 19.99 1000   EPS 100 / 0315-0787
4.00 10.00 50.00 250   EPS 100 / 0394-1969
4.50 8.99 24.99 1000   EPS 100 / 0354-0984
4.70 5.54 6.35 1000   EPS 100 / 0218-0250
4.78 8.71 15.88 M 7 M 8 5/8“ 1000   EPS 100 / 0343-0625
4.78 8.71 19.05 M 7 M 8 5/8“ 1000   EPS 100 / 0343-0750
4.78 8.71 25.40 M 7 M 8 5/8“ 1000   EPS 100 / 0343-1000
5.00 7.00 16.00 1000   EPS 100 / 0276-0630
5.00 10.00 25.40 500   EPS 100 / 0394-1000
5.00 10.01 48.01 500   EPS 100 / 0394-1890
5.00 10.03 50.01 500   EPS 100 / 0395-1969
6.00 9.98 19.99 500   EPS 100 / 0393-0787
6.02 11.99 50.80 M 10 3/8“ 500   EPS 100 / 0472-2000
6.35 9.53 12.70 M 8 5/8“ 500   EPS 100 / 0375-0500
6.35 9.53 19.05 M 8 5/8“ 500   EPS 100 / 0375-0750
6.35 9.53 25.40 M 8 5/8“ 500   EPS 100 / 0375-1000
6.35 11.10 25.40 M 10 3/8“ 500   EPS 100 / 0437-1000
7.90 12.01 19.99 M 10 3/8“ 500   EPS 100 / 0473-0787
7.90 12.70 25.40 M 10 3/8“ 250   EPS 100 / 0500-1000
7.92 12.70 20.65 M 10 3/8“ 250   EPS 100 / 0500-0813
7.95 13.00 28.58 250   EPS 100 / 0512-1125
7.95 14.27 25.40 M 10 M 12 M 14 7/16“ 1/2“ 9/16“ 250   EPS 100 / 0562-1000
7.95 14.27 28.58 M 10 M 12 M 14 7/16“ 1/2“ 9/16“ 250   EPS 100 / 0562-1125
8.00 11.00 19.00 M 10 3/8“ 500   EPS 100 / 0433-0748
8.00 11.00 27.00 M 10 3/8“ 500   EPS 100 / 0433-1063
8.74 11.13 17.48 M 10 3/8“ 500   EPS 100 / 0438-0688
8.74 11.91 20.65 M 10 3/8“ 500   EPS 100 / 0469-0813
9.98 14.99 25.40 250   EPS 100 / 0590-1000
8.99 11.13 19.00 M 10 3/8“ 500   EPS 100 / 0438-0748
8.99 11.99 19.00 M 10 3/8“ 500   EPS 100 / 0472-0748
8.99 11.99 25.40 M 10 3/8“ 500   EPS 100 / 0472-1000
8.99 12.37 19.00 M 10 3/8“ 500   EPS 100 / 0487-0748
8.99 13.00 24.99 250   EPS 100 / 0512-0984
9.53 14.30 25.40 M 10 M 12 M 14 7/16“ 1/2“ 9/16“ 250   EPS 100 / 0563-1000
10.00 12.50 20.00 M 10 3/8“ 500   EPS 100 / 0492-0787
10.31 15.09 25.40 250   EPS 100 / 0594-1000
10.70 17.50 25.40 M 14 M 16 M 18 5/8“ 250   EPS 100 / 0689-1000
11.00 15.01 19.99 M 14 M 16 1/2“ 9/16“ 250   EPS 100 / 0591-0787
11.10 15.88 20.65 M 14 M 16 9/16“ 5/8“ 250   EPS 100 / 0625-0813
11.13 15.88 22.23 M 14 M 16 9/16“ 5/8“ 250   EPS 100 / 0625-0875
11.13 17.45 25.40 M 14 M 16 M 18 5/8“ 250   EPS 100 / 0687-1000
12.70 15.88 25.40 M 14 M 16 9/16“ 5/8“ 250   EPS 100 / 0625-1000
12.70 16.66 25.40 M 16 5/8“ 250   EPS 100 / 0656-1000
13.00 16.99 25.40 250   EPS 100 / 0669-1000
13.67 20.24 24.99 200   EPS 100 / 0797-0984
14.00 17.45 19.99 M 14 M 16 M 18 5/8“ 250   EPS 100 / 0687-0787
14.00 18.01 19.99 250   EPS 100 / 0709-0787
14.27 19.00 25.40 M 18 M 20 3/4“ 100   EPS 100 / 0748-1000
14.30 19.00 14.27 M 18 M 20 3/5“ 250   EPS 100 / 0750-0562
15.88 19.99 25.40 M 20 3/4“ 100   EPS 100 / 0787-1000
15.88 20.32 15.88 100   EPS 100 / 0800-0625
15.88 20.62 25.40 100   EPS 100 / 0812-1000
16.00 21.01 25.40 100   EPS 100 / 0827-1000
18.01 24.03 30.00 M 22 7/8“ 100   EPS 100 / 0946-1181
18.26 23.83 25.40 M 22 7/8“ 100   EPS 100 / 0938-1000
19.05 23.50 19.05 M 22 7/8“ 100   EPS 100 / 0925-0750
19.05 23.50 25.40 M 22 7/8“ 100   EPS 100 / 0925-1000
19.05 27.99 50.80 M 30 1 1/4“ 100   EPS 100 / 1102-2000
19.20 24.00 19.05 M 22 7/8“ 100   EPS 100 / 0945-0750
19.20 24.00 25.40 M 22 7/8“ 100   EPS 100 / 0945-1000
22.40 25.15 20.19 100   EPS 100 / 0990-0795
19.84 25.40 25.40 M 22 M 24 1“ 100   EPS 100 / 1000-1000
19.99 25.15 22.48 100   EPS 100 / 0990-0885
19.99 26.01 25.40 100   EPS 100 / 1024-1000
22.00 25.50 12.00 M 22 M 24 1“ 100   EPS 100 / 1004-0472
22.00 26.97 24.99 100   EPS 100 / 1062-0984
22.35 26.01 20.19 100   EPS 100 / 1024-0795
23.01 27.00 25.40 M 27 100   EPS 100 / 1063-1000
23.83 27.94 25.40 M 30 1 1/4“ 100   EPS 100 / 1100-1000
24.99 30.99 30.00 100   EPS 100 / 1220-1181
26.19 31.75 25.40 M 33 1 1/4“ 100   EPS 100 / 1250-1000
27.00 33.35 25.40 M 33 1 1/4“ 3/8“ 100   EPS 100 / 1313-1000
27.00 33.99 25.40 100   EPS 100 / 1338-1000
27.79 30.00 25.40 100   EPS 100 / 1181-1000
30.18 36.53 25.40 M 36 1 3/8“ 100   EPS 100 / 1438-1000
30.18 36.98 25.40 100   EPS 100 / 1456-1000
30.99 38.00 35.00 50   EPS 100 / 1496-1378
31.75 38.89 25.40 M 39 1 1/2“ 50   EPS 100 / 1531-1000
33.02 41.00 25.40 50   EPS 100 / 1614-1000
33.35 41.28 25.40 M 39 M 42 1 1/2“ 50   EPS 100 / 1625-1000
34.01 41.02 35.00 50   EPS 100 / 1615-1378
35.71 42.88 25.40 M 42 50   EPS 100 / 1688-1000
35.99 43.00 25.40 M 42 M 45 50   EPS 100 / 1693-1000
36.00 43.99 40.01 50   EPS 100 / 1732-1575
37.01 45.01 25.40 50   EPS 100 / 1772-1000
37.31 44.45 25.40 M 48 50   EPS 100 / 1750-1000
38.10 46.05 25.40 50   EPS 100 / 1813-1000
41.00 49.00 40.01 50   EPS 100 / 1929-1575
41.28 50.01 25.40 50   EPS 100 / 1969-1000
44.45 52.40 25.40 M 56 25   EPS 100 / 2063-1000
44.96 52.98 25.40 25   EPS 100 / 2086-1000
46.99 54.99 40.01 25   EPS 100 / 2165-1575
47.63 55.96 25.40 M 56 25   EPS 100 / 2203-1000
50.00 59.99 45.01 25   EPS 100 / 2362-1772
50.01 62.71 25.40 M 64 25   EPS 100 / 2469-1000
50.01 62.99 25.40 M 50 M 52 25   EPS 100 / 2480-1000
53.98 63.50 25.40 M 64 25   EPS 100 / 2500-1000
57.94 68.28 25.40 25   EPS 100 / 2688-1000
61.93 75.01 34.93 25   EPS 100 / 2953-1375
75.01 89.99 38.99 10   EPS 100 / 3543-1535
76.20 88.90 38.10 10   EPS 100 / 3500-1500
82.55 101.60 38.10 10   EPS 100 / 4000-1500
82.98 103.00 38.99 10   EPS 100 / 4055-1535
88.90 127.00 50.80 5   EPS 100 / 5000-2000

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
