EPS 600  High Temperature Masking Silicone Flat Caps – Easy Removal and Rib Security

Ideal for large diameters as well as long smooth axles and threaded bolts. Ergonomic top makes it easier to put on and take off.

Heat resistant Inner insertion lip, cylindrical shaft, round profile with easy-to-grip top

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Flat Caps – Easy Removal and Rib Security

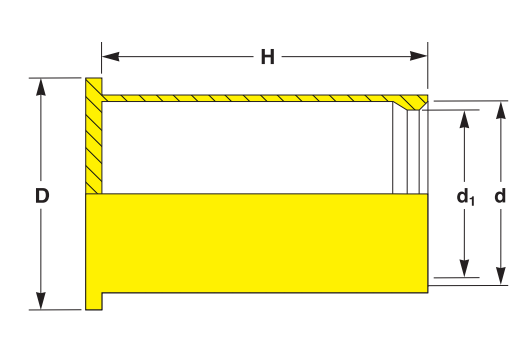

d D d1 H Pack Article No. Selection
6.35 16.51 3.18 50.80 250   EPS 600 / 0125-2000
6.60 16.76 3.43 29.97 500   EPS 600 / 0135-1180
7.14 17.30 3.96 50.80 250   EPS 600 / 0156-2000
7.16 17.32 3.99 29.97 500   EPS 600 / 0157-1180
7.37 17.53 4.19 25.81 500   EPS 600 / 0165-1016
7.67 17.83 4.50 29.97 500   EPS 600 / 0177-1180
7.75 17.91 4.57 50.80 250   EPS 600 / 0180-2000
7.92 18.08 4.75 34.98 500   EPS 600 / 0187-1377
7.92 18.08 4.75 44.37 250   EPS 600 / 0187-1747
9.12 19.28 5.94 50.80 250   EPS 600 / 0234-2000
9.17 19.33 5.99 29.97 250   EPS 600 / 0236-1180
9.40 15.80 5.00 37.00 500   EPS 600 / 0197-1180
9.65 19.81 6.48 23.11 250   EPS 600 / 0255-0910
9.65 19.81 6.48 29.97 250   EPS 600 / 0255-1180
10.03 20.19 6.86 30.48 250   EPS 600 / 0270-1200
10.16 20.32 6.99 29.97 250   EPS 600 / 0275-1180
10.64 20.80 7.47 33.78 250   EPS 600 / 0294-1330
11.18 21.34 8.00 24.74 250   EPS 600 / 0315-0974
11.18 21.34 8.00 29.97 250   EPS 600 / 0315-1180
11.18 21.34 8.00 36.20 250   EPS 600 / 0315-1425
11.30 21.46 8.13 17.02 250   EPS 600 / 0320-0670
11.56 21.72 8.38 38.10 250   EPS 600 / 0330-1500
12.19 22.35 9.02 38.10 250   EPS 600 / 0355-1500
12.32 22.48 9.14 25.40 250   EPS 600 / 0360-1000
12.70 22.86 9.53 25.40 250   EPS 600 / 0375-1000
12.70 22.86 9.53 36.09 250   EPS 600 / 0375-1421
12.83 22.99 9.65 25.40 250   EPS 600 / 0380-1000
13.18 23.34 10.01 29.97 250   EPS 600 / 0394-1180
14.17 24.33 11.00 29.97 250   EPS 600 / 0433-1180
14.30 24.46 11.13 24.13 250   EPS 600 / 0438-0950
14.63 24.79 11.46 30.86 250   EPS 600 / 0451-1215
14.63 24.79 11.46 50.80 250   EPS 600 / 0451-2000
15.49 25.65 12.32 12.70 250   EPS 600 / 0485-0500
15.49 25.65 12.32 19.05 250   EPS 600 / 0485-0750
15.49 25.65 12.32 25.73 250   EPS 600 / 0485-1013
16.12 26.29 12.32 40.64 250   EPS 600 / 0485-1600
15.67 25.83 12.50 29.97 250   EPS 600 / 0492-1180
16.66 26.82 13.49 29.97 100   EPS 600 / 0531-1180
18.06 28.22 14.88 13.00 250   EPS 600 / 0586-0512
18.08 28.24 14.91 9.50 250   EPS 600 / 0587-0374
18.40 28.56 18.40 85.10 50   EPS 600 / 0725-3120
18.62 28.78 15.44 12.52 250   EPS 600 / 0608-0493
18.62 28.78 15.44 25.15 250   EPS 600 / 0608-0990
18.62 28.78 15.44 29.97 100   EPS 600 / 0608-1180
18.97 29.13 15.80 29.97 100   EPS 600 / 0622-1180
18.97 29.13 15.80 40.01 100   EPS 600 / 0622-1575
20.62 30.78 17.45 29.97 100   EPS 600 / 0687-1180
20.68 30.84 17.50 90.91 50   EPS 600 / 0689-3579
21.59 30.96 18.42 38.10 50   EPS 600 / 0725-1500
24.77 34.93 21.59 10.41 100   EPS 600 / 0850-0410
26.19 36.35 23.01 88.90 50   EPS 600 / 0906-3500
27.64 37.80 24.46 76.20 50   EPS 600 / 0963-3000
28.07 38.23 24.89 38.10 50   EPS 600 / 0980-1500
26.90 38.00 24.90 42.00 50   EPS 600 / 0980-1654
31.57 41.73 28.40 13.72 100   EPS 600 / 1118-0540
31.75 41.91 28.58 127.00 50   EPS 600 / 1125-5000
34.42 44.58 31.24 127.00 50   EPS 600 / 1230-5000
34.67 44.83 31.50 44.70 50   EPS 600 / 1240-1760
35.89 46.05 32.72 104.85 25   EPS 600 / 1288-4128
42.98 53.14 39.80 38.53 50   EPS 600 / 1567-1517
50.17 60.33 46.99 46.99 50   EPS 600 / 1850-1850
51.97 62.13 48.79 40.01 50   EPS 600 / 1921-1575
60.17 70.33 57.00 46.00 25   EPS 600 / 2244-1811
60.33 70.49 57.15 48.77 25   EPS 600 / 2250-1920
66.68 76.84 63.50 61.47 25   EPS 600 / 2500-2420
70.74 80.90 67.56 18.44 25   EPS 600 / 2660-0726
74.30 84.40 69.90 69.60 25   EPS 600 / 2750-2670
79.38 89.00 76.20 74.17 25   EPS 600 / 3000-2920
83.29 92.68 80.11 18.54 25   EPS 600 / 3154-0730
84.18 94.34 81.00 10.49 25   EPS 600 / 3189-0413
84.46 94.62 81.28 25.30 25   EPS 600 / 3200-0996
85.67 95.83 82.50 19.89 25   EPS 600 / 3248-0783
86.66 96.82 83.49 17.30 25   EPS 600 / 3287-0681
88.57 98.73 85.39 6.50 25   EPS 600 / 3362-0256
90.17 100.33 87.00 17.91 25   EPS 600 / 3425-0705
91.19 101.35 88.01 20.80 25   EPS 600 / 3465-0819
92.08 102.24 88.90 86.87 25   EPS 600 / 3500-3420
95.17 105.33 92.00 16.79 25   EPS 600 / 3622-0661

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
