EPS 575  High Temperature Masking Silicone Internal Ribs Caps – Flat-Faced

Protective caps with internal ribs security. Round masking for pipe ends, axles, bolts, threads, tenons and parallel pins.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Internal Ribs Caps – Flat-Faced

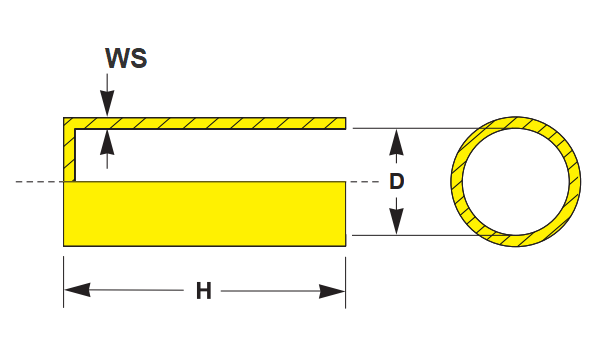

D H Metric UNF WS Pack Article No. Selection
1.78 25.40 1.52 1.000   EPS 575 / 0070-1000
2.54 25.40 M 3 1.52 1.000   EPS 575 / 0100-1000
2.54 28.45 M 3 1.52 1.000   EPS 575 / 0100-1120
3.05 10.16 1.52 1.000   EPS 575 / 0120-0400
3.05 25.40 1.52 1.000   EPS 575 / 0120-1000
3.68 28.45 1.52 1.000   EPS 575 / 0145-1120
3.76 25.40 M 4 1.52 1.000   EPS 575 / 0148-1000
4.37 20.32 M 5 1.52 1.000   EPS 575 / 0172-0800
4.45 25.40 1.52 1.000   EPS 575 / 0175-1000
4.70 28.45 1.52 1.000   EPS 575 / 0185-1120
5.59 28.45 1.52 1.000   EPS 575 / 0220-1120
5.59 41.91 1.52 1.000   EPS 575 / 0220-1650
5.66 38.10 M 6 1.52 1.000   EPS 575 / 0223-1500
5.94 38.10 1/4“ 1.52 1.000   EPS 575 / 0234-1500
7.49 6.35 M 8 5/16“ 1.52 1.000   EPS 575 / 0295-0250
7.49 38.10 M 8 5/16“ 1.52 500   EPS 575 / 0295-1500
7.62 28.45 1.52 500   EPS 575 / 0300-1120
7.62 41.91 1.52 500   EPS 575 / 0300-1650
9.02 38.10 1.52 500   EPS 575 / 0355-1500
9.53 28.45 M 10 1.52 500   EPS 575 / 0375-1120
9.53 38.10 M 10 1.52 500   EPS 575 / 0375-1500
9.98 18.49 1.52 500   EPS 575 / 0393-0728
10.54 38.10 1.52 500   EPS 575 / 0415-1500
11.10 25.40 1.52 500   EPS 575 / 0437-1000
11.18 18.49 1.52 500   EPS 575 / 0440-0728
11.58 28.45 M 12 1.52 500   EPS 575 / 0456-1120
11.58 38.10 M 12 1.52 500   EPS 575 / 0456-1500
12.19 38.10 1/2“ 1.52 500   EPS 575 / 0480-1500
13.59 38.10 M 14 1.52 500   EPS 575 / 0535-1500
14.27 38.10 M 16 1.52 500   EPS 575 / 0562-1500
14.99 17.98 1.52 500   EPS 575 / 0590-0708
15.24 38.10 1.52 250   EPS 575 / 0600-1500
16.26 22.86 1.52 250   EPS 575 / 0640-0900
16.26 50.80 1.52 250   EPS 575 / 0640-2000
16.89 18.59 1.52 250   EPS 575 / 0665-0732
17.45 8.38 M 18 1.52 250   EPS 575 / 0687-0330
18.34 115.70 1.52 100   EPS 575 / 0722-4555
18.69 18.49 M 20 1.52 250   EPS 575 / 0736-0728
20.60 18.49 M 22 7/8“ 1.52 250   EPS 575 / 0811-0728
21.72 38.10 1.52 250   EPS 575 / 0855-1500
23.39 18.49 1.52 250   EPS 575 / 0921-0728
24.64 101.60 M 25 1“ 1.52 100   EPS 575 / 0970-4000
24.89 38.10 1.52 250   EPS 575 / 0980-1500
25.40 16.51 M 27 1.52 250   EPS 575 / 1000-0650
30.99 17.02 1.52 250   EPS 575 / 1220-0670
32.79 22.99 1.52 100   EPS 575 / 1291-0905
39.50 27.99 1.52 100   EPS 575 / 1555-1102
40.01 17.02 1.52 100   EPS 575 / 1575-0670
41.88 27.99 1.52 100   EPS 575 / 1649-1102
45.01 17.02 1.52 100   EPS 575 / 1772-0670
46.99 27.99 1.52 100   EPS 575 / 1850-1102
49.71 38.48 1.52 100   EPS 575 / 1957-1515
57.10 25.98 1.52 100   EPS 575 / 2248-1023
73.28 25.40 1.52 50   EPS 575 / 2885-1000

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
