EPS 525  High Temperature Masking Silicone Straight Caps - Dome Top

Cylindrical, smooth shaft design, round profile, dome top. Designed to provide complete protection for masking applications.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Straight Caps -  Dome Top

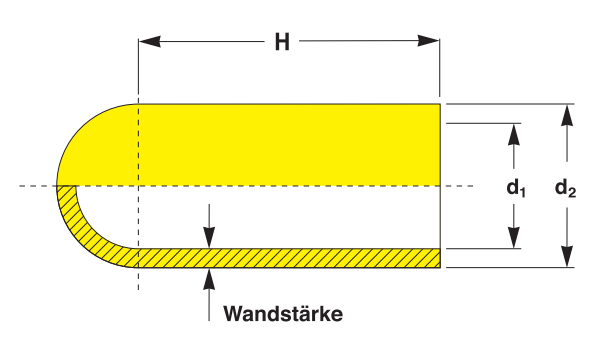

d1 d2 H WS Metric UNF Pack Article No. Selection
0.51 3.56 12.70 1.52 1.000   EPS 525 / 0020-0500
0.89 3.43 12.70 1.27 1.000   EPS 525 / 0035-0500
1.02 3.32 12.70 1.15 1.000   EPS 525 / 0040-0500
1.02 3.30 19.05 1.15 1.000   EPS 525 / 0040-0750
1.57 3.86 12.70 1.15 1.000   EPS 525 / 0062-0500
1.57 3.81 19.05 1.12 1.000   EPS 525 / 0062-0750
1.57 4.62 25.40 1.35 1.000   EPS 525 / 0062-1000
1.78 4.08 25.40 1.15 1.000   EPS 525 / 0070-1000
2.03 4.57 12.70 1.27 1.000   EPS 525 / 0080-0500
2.03 5.08 19.05 1.52 1.000   EPS 525 / 0080-0750
2.03 4.72 25.40 1.35 1.000   EPS 525 / 0080-1000
2.36 4.95 12.70 1.30 1.000   EPS 525 / 0093-0500
2.36 4.95 19.05 1.30 1.000   EPS 525 / 0093-0750
2.36 4.95 25.40 1.30 1.000   EPS 525 / 0093-1000
2.54 5.13 12.70 1.30 M 3 1.000   EPS 525 / 0100-0500
2.54 5.13 19.05 1.30 M 3 1.000   EPS 525 / 0100-0750
2.54 5.13 25.40 1.30 M 3 1.000   EPS 525 / 0100-1000
2.54 5.59 38.10 1.52 1.000   EPS 525 / 0100-1500
2.77 5.82 12.70 1.52 1.000   EPS 525 / 0109-0500
2.77 5.36 19.05 1.30 1.000   EPS 525 / 0109-0750
2.77 5.36 25.40 1.30 1.000   EPS 525 / 0109-1000
3.05 5.59 6.35 1.27 1.000   EPS 525 / 0120-0250
3.05 5.59 10.16 1.27 1.000   EPS 525 / 0120-0400
3.18 5.77 12.70 1.30 1.000   EPS 525 / 0125-0500
3.18 5.77 19.05 1.30 1.000   EPS 525 / 0125-0750
3.18 5.77 25.40 1.30 1.000   EPS 525 / 0125-1000
3.18 6.22 38.10 1.52 1.000   EPS 525 / 0125-1500
3.43 6.48 15.88 1.52 1.000   EPS 525 / 0135-0625
3.48 6.53 12.70 1.52 1.000   EPS 525 / 0137-0500
3.48 6.53 25.40 1.52 1.000   EPS 525 / 0137-1000
3.56 6.60 12.70 1.52 1.000   EPS 525 / 0140-0500
3.56 6.60 25.40 1.52 1.000   EPS 525 / 0140-1000
3.56 6.60 38.10 1.52 1.000   EPS 525 / 0140-1500
3.76 6.81 12.70 1.52 M 4 1.000   EPS 525 / 0148-0500
3.76 6.81 19.05 1.52 M 4 1.000   EPS 525 / 0148-0750
3.76 6.81 25.40 1.52 M 4 1.000   EPS 525 / 0148-1000
3.76 6.81 38.10 1.52 M 4 1.000   EPS 525 / 0148-1500
3.96 7.01 12.70 1.52 1.000   EPS 525 / 0156-0500
3.96 7.01 25.40 1.52 1.000   EPS 525 / 0156-1000
3.96 7.01 31.75 1.52 1.000   EPS 525 / 0156-1250
3.96 7.01 38.10 1.52 1.000   EPS 525 / 0156-1500
4.19 7.24 25.40 1.52 1.000   EPS 525 / 0165-1000
4.19 7.24 38.10 1.52 1.000   EPS 525 / 0165-1500
4.19 7.24 50.80 1.52 1.000   EPS 525 / 0165-2000
4.37 7.42 12.70 1.52 M 5 1.000   EPS 525 / 0172-0500
4.37 7.42 25.40 1.52 M 5 1.000   EPS 525 / 0172-1000
4.37 7.42 38.10 1.52 M 5 1.000   EPS 525 / 0172-1500
4.57 7.62 25.40 1.52 1.000   EPS 525 / 0180-1000
4.75 7.80 12.70 1.52 1.000   EPS 525 / 0187-0500
4.75 7.80 15.49 1.52 1.000   EPS 525 / 0187-0610
4.75 7.80 19.05 1.52 1.000   EPS 525 / 0187-0750
4.75 7.80 25.40 1.52 1.000   EPS 525 / 0187-1000
4.75 7.80 38.10 1.52 1.000   EPS 525 / 0187-1500
5.00 8.05 12.70 1.52 1.000   EPS 525 / 0197-0500
5.00 8.05 25.40 1.52 1.000   EPS 525 / 0197-1000
5.54 8.59 25.40 1.52 1.000   EPS 525 / 0218-1000
5.66 8.71 12.70 1.52 M 6 1.000   EPS 525 / 0223-0500
5.66 8.71 19.05 1.52 M 6 1.000   EPS 525 / 0223-0750
5.66 8.71 25.40 1.52 M 6 1.000   EPS 525 / 0223-1000
5.66 8.71 38.10 1.52 M 6 1.000   EPS 525 / 0223-1500
5.66 8.71 54.99 1.52 M 6 1.000   EPS 525 / 0223-2165
6.35 9.40 12.70 1.52 1.000   EPS 525 / 0250-0500
6.35 9.40 25.40 1.52 1.000   EPS 525 / 0250-1000
6.35 9.40 38.10 1.52 1.000   EPS 525 / 0250-1500
6.60 9.65 12.70 1.52 1.000   EPS 525 / 0260-0500
6.60 9.65 25.40 1.52 500   EPS 525 / 0260-1000
7.14 10.19 12.70 1.52 500   EPS 525 / 0281-0500
7.14 10.19 19.05 1.52 500   EPS 525 / 0281-0750
7.14 10.19 25.40 1.52 500   EPS 525 / 0281-1000
7.14 10.19 50.80 1.52 500   EPS 525 / 0281-2000
7.49 10.54 12.70 1.52 M 8 5/16“ 500   EPS 525 / 0295-0500
7.49 10.54 19.05 1.52 M 8 5/16“ 500   EPS 525 / 0295-0750
7.49 10.54 25.40 1.52 M 8 5/16“ 500   EPS 525 / 0295-1000
7.49 10.54 38.10 1.52 M 8 5/16“ 500   EPS 525 / 0295-1500
7.49 10.54 59.69 1.52 M 8 5/16“ 500   EPS 525 / 0295-2350
7.70 11.00 25.40 1.65 M 8 5/16“ 500   EPS 525 / 0303-1000
7.92 10.97 12.70 1.52 M 8 5/16“ 500   EPS 525 / 0312-0500
7.92 10.97 25.40 1.52 M 8 5/16“ 500   EPS 525 / 0312-1000
7.92 10.97 38.10 1.52 M 8 5/16“ 500   EPS 525 / 0312-1500
7.92 10.97 50.80 1.52 M 8 5/16“ 500   EPS 525 / 0312-2000
8.64 11.68 12.70 1.52 500   EPS 525 / 0340-0500
8.64 11.68 25.40 1.52 500   EPS 525 / 0340-1000
8.64 11.68 38.10 1.52 500   EPS 525 / 0340-1500
8.64 11.68 50.80 1.52 500   EPS 525 / 0340-2000
9.02 12.07 25.40 1.52 500   EPS 525 / 0355-1000
9.02 12.07 38.10 1.52 500   EPS 525 / 0355-1500
9.30 12.34 25.40 1.52 500   EPS 525 / 0366-1000
9.30 12.34 38.10 1.52 500   EPS 525 / 0366-1500
9.53 12.57 12.70 1.52 M 10 500   EPS 525 / 0375-0500
9.53 12.57 19.05 1.52 M 10 500   EPS 525 / 0375-0750
9.53 12.57 25.40 1.52 M 10 500   EPS 525 / 0375-1000
9.53 12.57 38.10 1.52 M 10 500   EPS 525 / 0375-1500
9.53 12.57 50.01 1.52 M 10 250   EPS 525 / 0375-1969
10.31 13.36 25.40 1.52 7/16“ 250   EPS 525 / 0406-1000
10.31 13.36 38.10 1.52 7/16“ 250   EPS 525 / 0406-1500
11.10 14.15 6.35 1.52 250   EPS 525 / 0437-0250
11.10 14.15 19.05 1.52 250   EPS 525 / 0437-0750
11.10 14.15 25.40 1.52 250   EPS 525 / 0437-1000
11.10 14.15 50.80 1.52 250   EPS 525 / 0437-2000
11.58 14.63 12.70 1.52 M 12 250   EPS 525 / 0456-0500
11.58 14.63 19.05 1.52 M 12 250   EPS 525 / 0456-0750
11.58 14.63 25.40 1.52 M 12 250   EPS 525 / 0456-1000
11.58 14.63 38.10 1.52 M 12 250   EPS 525 / 0456-1500
11.58 14.63 50.01 1.52 M 12 250   EPS 525 / 0456-1969
11.89 14.94 25.40 1.52 250   EPS 525 / 0468-1000
11.89 14.94 38.10 1.52 250   EPS 525 / 0468-1500
12.07 15.11 101.60 1.52 250   EPS 525 / 0475-4000
12.70 15.75 19.05 1.52 250   EPS 525 / 0500-0750
12.70 15.75 38.10 1.52 250   EPS 525 / 0500-1500
12.70 15.75 76.20 1.52 250   EPS 525 / 0500-3000
12.70 15.75 101.60 1.52 250   EPS 525 / 0500-4000
13.59 16.64 19.05 1.52 M 14 250   EPS 525 / 0535-0750
13.59 16.64 25.40 1.52 M 14 250   EPS 525 / 0535-1000
13.59 16.64 38.10 1.52 M 14 250   EPS 525 / 0535-1500
13.59 16.64 76.20 1.52 M 14 250   EPS 525 / 0535-3000
14.27 17.32 16.74 1.52 M 16 250   EPS 525 / 0562-0659
14.27 17.32 20.32 1.52 M 16 250   EPS 525 / 0562-0800
14.27 17.32 27.94 1.52 M 16 250   EPS 525 / 0562-1100
14.27 17.32 38.10 1.52 M 16 250   EPS 525 / 0562-1500
15.24 18.29 38.10 1.52 250   EPS 525 / 0600-1500
15.88 18.92 19.05 1.52 250   EPS 525 / 0625-0750
15.88 18.92 28.58 1.52 250   EPS 525 / 0625-1125
15.88 18.92 31.75 1.52 250   EPS 525 / 0625-1250
15.88 18.92 38.10 1.52 250   EPS 525 / 0625-1500
15.88 18.92 63.50 1.52 250   EPS 525 / 0625-2500
17.45 20.50 15.88 1.52 M 18 250   EPS 525 / 0687-0625
17.45 20.50 25.40 1.52 M 18 100   EPS 525 / 0687-1000
17.45 20.50 31.75 1.52 M 18 100   EPS 525 / 0687-1250
17.45 20.50 38.10 1.52 M 18 100   EPS 525 / 0687-1500
17.45 20.50 44.45 1.52 M 18 100   EPS 525 / 0687-1750
17.45 20.50 63.50 1.52 M 18 100   EPS 525 / 0687-2500
17.45 20.50 114.30 1.52 M 18 100   EPS 525 / 0687-4500
19.05 22.10 38.10 1.52 M 20 100   EPS 525 / 0750-1500
19.05 22.10 44.45 1.52 M 20 100   EPS 525 / 0750-1750
19.05 22.10 50.80 1.52 M 20 100   EPS 525 / 0750-2000
19.05 22.10 88.90 1.52 M 20 100   EPS 525 / 0750-3500
19.05 22.10 109.22 1.52 M 20 100   EPS 525 / 0750-4300
19.81 22.86 38.10 1.52 100   EPS 525 / 0780-1500
20.62 23.67 25.40 1.52 M 22 7/8“ 100   EPS 525 / 0812-1000
20.62 23.67 38.10 1.52 M 22 7/8“ 100   EPS 525 / 0812-1500
21.46 24.51 38.10 1.52 100   EPS 525 / 0845-1500
21.46 24.51 72.24 1.52 100   EPS 525 / 0845-2844
22.23 25.27 25.40 1.52 100   EPS 525 / 0875-1000
22.23 25.27 38.10 1.52 100   EPS 525 / 0875-1500
23.80 26.85 25.40 1.52 100   EPS 525 / 0937-1000
23.80 26.85 38.10 1.52 100   EPS 525 / 0937-1500
24.64 27.69 38.10 1.52 M 25 1“ 100   EPS 525 / 0970-1500
24.64 27.69 101.60 1.52 M 25 1“ 100   EPS 525 / 0970-4000
25.40 28.45 20.83 1.52 M 27 100   EPS 525 / 1000-0820
25.40 28.45 38.10 1.52 M 27 100   EPS 525 / 1000-1500
25.40 28.45 50.80 1.52 M 27 100   EPS 525 / 1000-2000
26.97 30.02 25.40 1.52 100   EPS 525 / 1062-1000
26.97 30.02 38.10 1.52 100   EPS 525 / 1062-1500
26.97 30.02 50.80 1.52 100   EPS 525 / 1062-2000
26.97 30.02 86.72 1.52 100   EPS 525 / 1062-3414
27.51 30.56 76.20 1.52 M 30 100   EPS 525 / 1083-3000
28.58 31.62 38.10 1.52 100   EPS 525 / 1125-1500
30.15 33.20 38.10 1.52 M 33 100   EPS 525 / 1187-1500
31.75 34.80 28.58 1.52 100   EPS 525 / 1250-1125
31.75 34.80 38.10 1.52 100   EPS 525 / 1250-1500
34.29 37.34 38.10 1.52 M 36 100   EPS 525 / 1350-1500
34.29 37.34 44.45 1.52 100   EPS 525 / 1350-1750
34.93 37.97 38.10 1.52 50   EPS 525 / 1375-1500
35.05 38.10 25.40 1.52 50   EPS 525 / 1380-1000
35.05 38.10 38.10 1.52 50   EPS 525 / 1380-1500
38.10 41.15 25.40 1.52 M 39 1 1/4“ 50   EPS 525 / 1500-1000
38.10 41.15 38.10 1.52 M 39 1 1/4“ 50   EPS 525 / 1500-1500
38.10 41.15 44.45 1.52 M 39 1 1/4“ 50   EPS 525 / 1500-1750
41.28 44.32 50.80 1.52 50   EPS 525 / 1625-2000
44.45 47.50 38.10 1.52 50   EPS 525 / 1750-1500
44.45 47.50 50.80 1.52 50   EPS 525 / 1750-2000
47.63 50.67 38.10 1.52 50   EPS 525 / 1875-1500
47.63 50.67 50.80 1.52 50   EPS 525 / 1875-2000
50.80 53.85 25.40 1.52 50   EPS 525 / 2000-1000
50.80 53.85 50.80 1.52 25   EPS 525 / 2000-2000
53.47 56.52 50.80 1.52 25   EPS 525 / 2105-2000

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
