EPS 450  High Temperature Masking Silicone Multi-Flanged Plugs - centre pull tab

Multi-Flanged Plugs are designed to mask plain holes and internal threads.

Flexible fins allow the plug to fit a range of hole sizes.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Multi-Flanged Plugs - centre pull tab

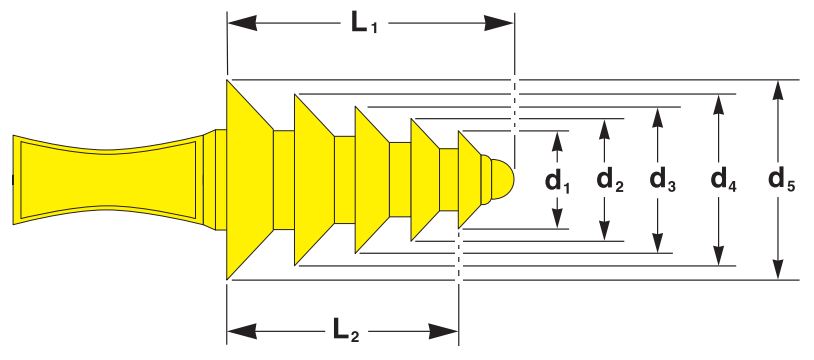

Dim d1 d2 d3 d4 d5 L1 L2 Shore A Col Pack Article No. Selection
M 4 - M 12 4.00 6.00 8.00 10.00 ---- 10.63 13.60 60 Blau 500   EPS 450 / 4-10
M 8 - M 14 8.00 10.00 12.00 14.00 16.00 19.00 23.50 60 Braun 200   EPS 450 / 8-16
M 10 - M 16 10.00 12.00 14.00 16.00 18.00 19.00 24.00 60 Grün 200   EPS 450 /10-18

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
