EPS 425  High Temperature Masking Silicone Compression Plugs

Compression Plugs are designed to mask plain holes and internal threads.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Compression Plugs

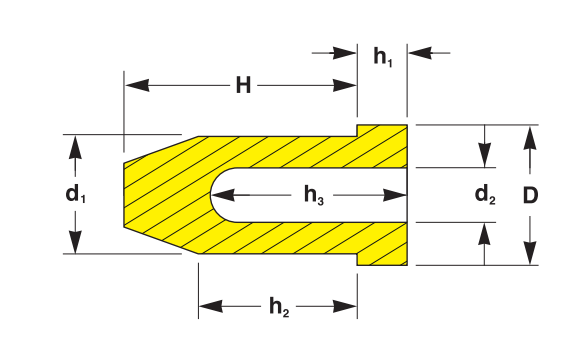

d1 d2 D H h1 h2 Article No. Selection
5.94 3.18 9.53 13.49 - 3.18 9.53 13.49   EPS 425 / 0234
6.35 3.18 8.89 13.49 - 3.18 9.53 12.70   EPS 425 / 0250
6.90 3.00 8.40 12.00 - 2.50 9.00 5.00   EPS 425 / 0272
7.24 3.86 11.07 14.35 - 3.56 10.72 13.44   EPS 425 / 0285
8.57 3.96 12.70 15.09 - 3.18 11.13 14.30   EPS 425 / 0338
7.80 3.50 9.20 14.00 - 2.50 10.25 14.50   EPS 425 / 0307
7.95 3.81 10.95 14.68 - 3.18 10.54 14.27   EPS 425 / 0313
8.89 4.75 12.70 17.25 - 4.75 11.43 16.51   EPS 425 / 0350
10.44 4.50 16.94 14.80 - 3.50 11.27 15.30   EPS 425 / 0411
10.50 4.50 12.70 16.00 - 3.50 12.43 16.50   EPS 425 / 0413
11.95 5.56 14.30 19.06 - 4.76 12.70 16.69   EPS 425 / 0471
13.45 5.00 15.35 18.00 - 3.50 12.68 18.50   EPS 425 / 0530
15.94 7.95 19.05 23.84 - 4.76 17.48 23.04   EPS 425 / 0628
17.90 7.50 22.00 25.40 - 5.00 18.69 26.40   EPS 425 / 0705
18.35 20.85 22.00 19.85 - 5.00 8.00 20.85   EPS 425 / 0722
19.11 8.74 21.34 22.24 - 4.76 15.88 21.44   EPS 425 / 0753
21.00 11.00 25.40 23.80 - 5.00 15.95 22.80   EPS 425 / 0827
21.03 9.63 25.40 24.13 - 5.26 15.24 24.13   EPS 425 / 0828
22.28 9.58 25.40 22.23 - 6.35 15.88 22.23   EPS 425 / 0877
22.42 9.53 25.40 23.83 - 4.93 17.48 23.19   EPS 425 / 0883
27.43 15.24 32.77 22.23 - 6.35 15.88 22.61   EPS 425 / 1080
28.45 11.91 34.93 34.93 - 6.35 26.99 33.34   EPS 425 / 1120
38.35 24.38 43.69 28.45 - 6.86 22.10 28.58   EPS 425 / 1510

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
