EPS 375  High Temperature Masking Silicone Push-Fit Plugs with Handle

Silicone Hollow Plugs with handles are designed to plug plain and threaded holes; they will mask off the hole and allow finishing up to it.

Central pull tab for easy and quick insertion and removal

Withstands temperatures up to 600°F (316°C)

Recommended for powder coating, e-coating, plating & anodizing

Hollow to make it lighter and more conforming

Tapered to fit into a range of hole sizes

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Push-Fit Plugs with Handle

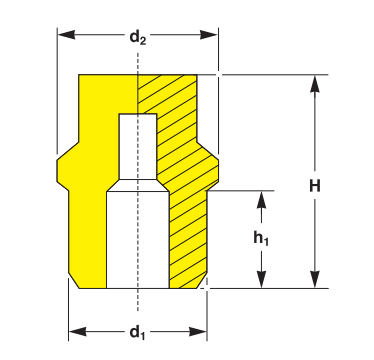

d1 d2 h1 H Metric Shore A Article No. Selection
2.70 3.50 5.30 20.80 - M 3 55 1.000   EPS 375 / 0107
3.60 4.10 5.80 21.80 - M 4 55 1.000   EPS 375 / 0141
4.50 5.30 5.60 20.80 - M 5 55 1.000   EPS 375 / 0178
5.20 6.20 4.30 14.00 - 55 1.000   EPS 375 / 0205
5.30 6.30 7.50 24.50 - 55 500   EPS 375 / 0208
5.30 6.40 5.10 14.50 - 55 500   EPS 375 / 0210
5.50 6.60 5.10 11.40 - M 6 55 500   EPS 375 / 0218
5.50 6.60 7.10 23.40 - 55 500   EPS 375 / 0218L
6.80 9.00 14.50 32.30 - 55 500   EPS 375 / 0268
7.10 8.10 5.10 12.70 - M 8 55 500   EPS 375 / 0278
7.10 8.10 7.10 22.70 - M 8 55 500   EPS 375 / 0278L
7.20 8.60 4.20 12.00 - 55 500   EPS 375 / 0283S
7.20 8.50 5.10 14.90 - 55 500   EPS 375 / 0283
7.20 8.40 7.50 22.80 - 55 500   EPS 375 / 0283L
8.50 9.80 6.40 15.20 - 55 500   EPS 375 / 0336
8.50 9.80 8.40 25.30 - 55 500   EPS 375 / 0336L
9.00 10.20 6.20 17.50 - 55 250   EPS 375 / 0354
9.10 10.40 6.10 15.60 - M 10 55 250   EPS 375 / 0358
9.10 10.40 7.00 24.00 - M 10 55 250   EPS 375 / 0358L
10.00 11.40 8.90 19.10 - 55 250   EPS 375 / 0394
10.80 12.40 8.80 20.00 - M 12 55 250   EPS 375 / 0426
11.00 12.20 8.20 20.30 - 55 250   EPS 375 / 0433
11.50 13.00 8.90 19.10 - 55 250   EPS 375 / 0451
12.10 14.00 7.60 22.00 - 55 250   EPS 375 / 0477
13.00 14.00 7.60 22.20 - M 14 55 250   EPS 375 / 0510
14.80 17.00 10.40 23.00 - M 16 55 100   EPS 375 / 0583
14.90 16.60 10.30 23.00 - 55 100   EPS 375 / 0587
16.30 18.60 9.50 32.60 - M 18 55 100   EPS 375 / 0643
18.40 20.30 12.30 28.70 - 55 100   EPS 375 / 0724S
18.40 20.60 13.00 28.60 - M 20 55 100   EPS 375 / 0724
18.70 20.50 23.00 39.00 - 55 100   EPS 375 / 0736
21.00 23.20 9.50 32.60 - M 22 55 100   EPS 375 / 0825
21.30 23.90 13.60 33.10 - M 24 55 100   EPS 375 / 0840
22.80 24.10 16.00 37.90 - 55 100   EPS 375 / 0896

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
