EPS 350  High Temperature Masking Dual Flanged Pull Plugs

Designed for weld nuts of varying thread sizes.

Will not blow out due to air pressure

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking Dual Flanged Pull Plugs

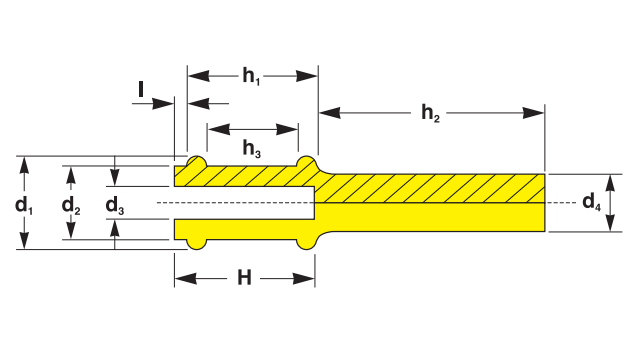

d1 d2 d3 d4 h1 h2 h3 H I Shore A Color Pack Article No. Selection
6.93 4.06 1.02 2.03 9.37 15.34 6.22 26.75 1.57 40-45 Schwarz 500   EPS 350 / M5
7.80 5.00 1.85 5.00 10.26 20.42 6.73 9.14 2.03 40-45 Grün 500   EPS 350 / M6
9.50 6.71 3.28 5.59 12.32 19.76 8.76 10.41 2.03 40-45 Blau 500   EPS 350 / M8XL
9.50 6.71 3.28 3.81 11.56 20.52 8.00 10.41 2.03 40-45 Rot 500   EPS 350 / M8
9.53 6.63 3.56 5.33 10.67 20.57 7.11 12.95 1.78 40-45 Blau 500   EPS 350 / 0261
10.67 6.86 3.81 5.72 9.88 19.05 6.73 15.88 3.18 40-45 Weiss 500   EPS 350 / 0270A
10.80 8.00 4.57 5.08 10.67 20.42 6.60 9.14 2.03 40-45 Schwarz 500   EPS 350 / 0315
11.30 8.51 5.08 3.81 10.16 20.42 6.60 9.14 2.03 40-45 Grün 500   EPS 350 / 0335
11.30 8.51 5.08 3.81 12.55 20.42 8.99 11.43 2.03 40-45 Grün 500   EPS 350 / M10
11.30 8.51 5.08 6.99 12.55 20.42 8.99 11.43 2.03 40-45 Pink 500   EPS 350 / 0335L
13.00 10.26 5.08 5.61 13.97 25.40 9.91 9.14 2.03 40-45 Gelb 250   EPS 350 / 0404
13.00 10.31 5.08 5.61 10.16 27.81 6.60 9.14 2.03 40-45 Lila 250   EPS 350 / 0410
13.00 10.31 5.08 5.61 15.16 26.80 11.61 14.15 2.03 40-45 Lila 250   EPS 350 / M12
13.21 10.16 5.08 7.62 15.37 27.05 11.30 17.91 2.03 40-45 Gelb 250   EPS 350 / 0400
16.99 13.46 7.87 10.16 18.03 32.00 13.97 20.57 2.03 40-45 Grün 100   EPS 350 / 0530
17.40 13.59 7.11 8.89 17.53 31.24 13.97 16.51 2.03 40-45 Weiss 100   EPS 350 / M16
21.01 16.99 10.52 12.29 21.59 34.38 18.01 20.55 2.03 40-45 Blau 100   EPS 350 / M20

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
