EPS 306  High Temperature Masking Silicone Pull Plugs

Ideal for protecting internal threads and bores and through bores with and without internal threads when painting, dip painting and electroplating.

Cylindrical shaft design.

Central pull tab for easy removal.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Pull Plugs

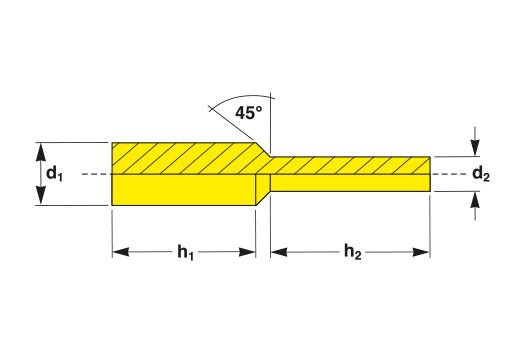

d1 d2 h1 h2 Shore A Pack Article No. Selection
1.57 1.17 9.53 8.56 55 500   EPS 306 / 00157-00117
1.57 1.02 12.70 12.70 55 500   EPS 306 / 00157-00102
1.60 1.14 15.88 15.88 55 500   EPS 306 / 00160-00114
1.70 1.19 15.88 15.49 55 500   EPS 306 / 00170-00119
1.85 1.17 15.54 14.99 55 500   EPS 306 / 00185-00117
2.03 1.14 25.40 25.40 55 500   EPS 306 / 00203-00114
2.31 1.32 15.88 15.88 55 500   EPS 306 / 00231-00132
2.31 1.32 25.40 25.40 55 500   EPS 306 / 00231-00132-02
2.36 1.27 15.88 15.88 55 500   EPS 306 / 00236-00127
2.36 1.60 17.78 17.78 55 500   EPS 306 / 00236-00160
2.41 1.32 25.40 25.40 55 500   EPS 306 / 00241-00132
2.64 1.57 15.88 15.88 50 500   EPS 306 / 00264-00157
2.67 2.08 25.40 25.40 50 500   EPS 306 / 00267-00208
2.77 1.57 15.88 15.88 50 500   EPS 306 / 00277-00157
2.77 1.57 25.40 25.40 50 500   EPS 306 / 00277-00157-02
3.00 2.08 25.40 25.40 50 500   EPS 306 / 00300-00208
3.18 1.57 15.88 15.88 50 500   EPS 306 / 00318-00157
3.30 2.36 15.88 17.78 50 500   EPS 306 / 00330-00236
3.30 2.36 25.40 25.40 50 500   EPS 306 / 00330-00236-02
3.56 2.16 15.88 14.17 50 500   EPS 306 / 00356-00216
3.61 2.29 31.75 31.75 50 500   EPS 306 / 00316-00229
3.91 1.57 15.88 15.88 50 500   EPS 306 / 00391-00157
3.96 1.57 15.88 19.05 50 500   EPS 306 / 00396-00157
3.96 2.36 31.75 31.75 50 500   EPS 306 / 00396-00236
4.01 2.08 25.40 25.40 50 500   EPS 306 / 00401-00208
4.01 2.08 31.75 31.75 50 500   EPS 306 / 00401-00208-02
4.01 2.36 38.10 38.10 50 500   EPS 306 / 00401-00236
4.06 2.39 19.81 19.81 50 500   EPS 306 / 00401-00239
4.11 2.44 15.88 14.76 50 500   EPS 306 / 00411-00244
4.45 3.12 31.75 31.75 50 500   EPS 306 / 00445-00312
4.75 2.79 15.88 15.88 50 500   EPS 306 / 00475-00279
4.83 3.56 31.75 31.75 50 500   EPS 306 / 00483-00356
4.83 2.79 57.15 57.15 50 500   EPS 306 / 00483-00279
4.95 2.79 15.88 15.88 50 500   EPS 306 / 00495-00279
4.95 2.79 25.40 25.40 50 500   EPS 306 / 00495-00279-02
4.95 3.18 31.75 31.75 50 500   EPS 306 / 00495-00318
5.00 2.79 25.40 25.40 50 500   EPS 306 / 00500-00279
5.54 3.30 25.40 25.40 50 500   EPS 306 / 00554-00330
5.54 3.30 31.75 31.75 50 500   EPS 306 / 00554-00330-02
5.72 3.18 25.40 25.40 50 500   EPS 306 / 00572-00318
5.99 4.50 10.16 10.16 50 500   EPS 306 / 00599-00450
5.99 4.19 31.75 31.75 50 500   EPS 306 / 00599-00419
6.20 4.32 31.75 31.75 50 500   EPS 306 / 00620-00432
6.35 3.18 31.75 31.75 50 500   EPS 306 / 00635-00318
6.53 3.30 25.40 25.40 50 500   EPS 306 / 00653-00330
6.53 3.30 31.75 31.75 50 500   EPS 306 / 00653-00330-02
6.60 3.30 25.40 25.40 50 500   EPS 306 / 00660-00330
6.73 4.72 31.75 31.75 50 500   EPS 306 / 00673-00472
6.99 3.18 23.80 23.37 50 500   EPS 306 / 00699-00318
6.99 3.71 50.80 50.80 50 500   EPS 306 / 00699-00371
7.14 3.51 25.40 25.40 50 500   EPS 306 / 00714-00351
7.14 3.51 31.75 31.75 50 500   EPS 306 / 00714-00351-02
7.50 4.50 30.00 30.00 50 500   EPS 306 / 00750-00450
7.92 3.73 25.40 25.40 50 500   EPS 306 / 00792-00373
7.92 3.86 31.75 31.75 50 500   EPS 306 / 00792-00386
8.03 3.86 25.40 21.59 50 500   EPS 306 / 00803-00386
8.43 6.35 28.58 20.29 50 500   EPS 306 / 00843-00635
8.46 6.38 19.23 26.67 50 500   EPS 306 / 00846-00638
8.51 3.89 25.40 25.40 50 500   EPS 306 / 00851-00389
8.51 3.89 31.75 31.75 50 500   EPS 306 / 00851-00389-02
8.89 4.90 22.86 25.40 50 500   EPS 306 / 00889-00490
9.02 3.99 25.40 25.40 50 250   EPS 306 / 00902-00399
9.40 4.07 30.00 30.00 50 250   EPS 306 / 00940-00407
9.53 3.99 25.40 25.40 50 250   EPS 306 / 00953-00399
9.53 4.75 31.75 31.75 50 250   EPS 306 / 00953-00475
9.75 3.91 25.40 25.40 50 250   EPS 306 / 00975-00391
9.75 3.91 31.75 31.75 50 250   EPS 306 / 00975-00391-02
9.75 3.91 50.80 50.80 50 250   EPS 306 / 00975-00391-03
9.86 3.99 25.40 25.40 50 250   EPS 306 / 00986-00399
10.16 3.99 12.70 12.70 45 250   EPS 306 / 01016-00399
10.16 3.99 25.40 25.40 45 250   EPS 306 / 01016-00399-02
10.36 4.85 25.63 25.40 45 250   EPS 306 / 01036-00485
10.52 3.99 13.34 19.18 45 250   EPS 306 / 01052-00399
10.52 3.99 25.40 25.40 45 250   EPS 306 / 01052-00399-02
11.10 7.62 38.10 38.10 45 250   EPS 306 / 01110-00762
11.18 6.60 25.40 25.40 45 250   EPS 306 / 01118-00660
11.18 3.99 50.80 50.80 45 250   EPS 306 / 01118-00399
11.28 6.48 25.40 25.15 45 250   EPS 306 / 01128-00648
11.28 6.48 31.75 31.75 45 250   EPS 306 / 01128-00648-02
11.30 6.48 25.40 25.40 45 250   EPS 306 / 01130-00648
11.89 6.35 25.40 25.40 45 250   EPS 306 / 01189-00635
11.99 6.17 25.40 25.40 45 250   EPS 306 / 01199-00617
12.60 6.35 25.40 25.40 45 250   EPS 306 / 01260-00635
12.60 6.35 50.80 50.80 45 100   EPS 306 / 01260-00635-02
12.70 6.35 25.40 25.40 45 100   EPS 306 / 01270-00635
12.95 6.50 25.40 24.28 45 100   EPS 306 / 01295-00650
13.46 6.35 25.40 25.40 45 100   EPS 306 / 01346-00635
13.46 6.35 52.37 52.37 45 100   EPS 306 / 01346-00635-02
14.00 6.35 30.00 30.00 45 100   EPS 306 / 01400-00635
14.48 7.92 25.40 25.40 45 100   EPS 306 / 01448-00792
14.50 7.70 44.45 44.45 45 100   EPS 306 / 01450-00770
14.73 8.00 38.10 38.10 45 100   EPS 306 / 01473-00800
14.99 6.35 25.40 25.40 45 100   EPS 306 / 01499-00635
15.54 6.35 25.40 25.40 45 100   EPS 306 / 01554-00635
15.54 8.26 50.80 50.80 45 100   EPS 306 / 01554-00826
15.75 8.36 38.10 38.10 45 100   EPS 306 / 01575-00836
16.26 9.53 25.40 25.40 45 100   EPS 306 / 01626-00953
16.26 9.53 45.01 45.01 45 100   EPS 306 / 01626-00953-02
17.02 11.94 38.10 38.10 45 100   EPS 306 / 01702-01194
17.02 11.96 44.45 38.10 45 100   EPS 306 / 01702-01196
17.78 9.53 25.40 25.40 45 100   EPS 306 / 01778-00953
17.78 9.53 31.75 31.75 45 100   EPS 306 / 01778-00953-02
17.78 9.53 38.10 38.10 45 100   EPS 306 / 01778-00953-03
17.96 9.53 31.75 33.68 45 100   EPS 306 / 01796-00953
18.49 9.53 28.58 27.94 45 100   EPS 306 / 01849-00953
18.52 8.00 25.40 25.40 45 100   EPS 306 / 01852-00800
18.52 9.80 38.10 38.10 45 100   EPS 306 / 01852-00980
19.05 9.53 25.40 25.40 45 100   EPS 306 / 01905-00953
19.56 9.53 25.40 23.55 45 100   EPS 306 / 01956-00953
19.56 9.53 28.58 28.58 45 50   EPS 306 / 01956-00953-02
19.56 10.36 38.10 38.10 45 50   EPS 306 / 01956-01036
19.56 10.36 49.78 53.34 45 50   EPS 306 / 01956-01036-02
20.27 10.16 16.51 20.32 45 50   EPS 306 / 02027-01016
20.50 10.87 31.75 31.75 40-45 50   EPS 306 / 02050-01087
20.50 10.87 38.10 38.10 40-45 50   EPS 306 / 02050-01087-02
20.55 8.00 25.40 25.40 40-45 50   EPS 306 / 02055-00800
21.41 9.53 50.80 50.80 40-45 50   EPS 306 / 02141-00953
21.59 11.43 57.15 57.15 40-45 50   EPS 306 / 02159-01143
22.56 9.45 25.40 25.40 40-45 50   EPS 306 / 02256-00945
22.76 9.53 25.40 25.40 40-45 50   EPS 306 / 02276-00953
22.78 9.53 38.10 38.10 40-45 50   EPS 306 / 02278-00953
25.40 9.53 25.40 25.40 40-45 50   EPS 306 / 02540-00953
25.91 9.53 25.40 24.64 40-45 50   EPS 306 / 02591-00953
25.91 9.53 31.75 31.75 40-45 50   EPS 306 / 02591-00953-02
30.00 12.00 50.00 30.00 40-45 50   EPS 306 / 03000-01200
30.99 9.53 31.75 31.75 40-45 50   EPS 306 / 03099-00953
32.50 15.00 50.00 30.00 40-45 50   EPS 306 / 03250-01500
35.05 12.70 25.40 25.40 40-45 50   EPS 306 / 03505-01270
35.05 18.57 38.10 38.10 40-45 25   EPS 306 / 03505-01857
36.83 12.70 25.40 25.40 40-45 25   EPS 306 / 03683-01270
40.01 19.99 35.00 35.00 40-45 25   EPS 306 / 04001-01999
42.00 22.50 50.00 30.00 40-45 25   EPS 306 / 04200-02250
43.51 22.00 70.00 70.00 40-45 25   EPS 306 / 04351-02200

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
