EPS 300  High Temperature Masking Silicone Pull Plugs

The flange pull plugs (also called pull plugs ) are designed to close the threaded bushes cleanly with a pressure pull.

Ideal for protecting internal threads and bores during painting, dip painting and electroplating processes.

Cylindrical shaft design.

Central pull tab.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Pull Plugs

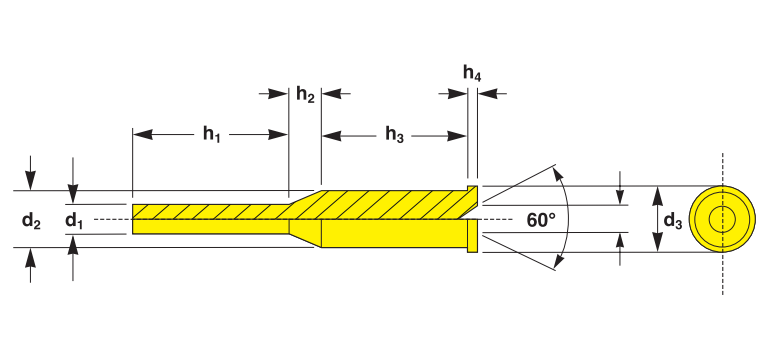

Metric d1 d2 d3 h3 h1 h4 h2 Shore A Color Pack Article No. Selection
M 5 2.49 4.39 6.35 25.40 25.40 1.52 0.64 40-45 Rot 500   EPS 300 / 0173
3.05 4.32 7.62 25.40 25.40 1.52 0.64 40-45 Natur 500   EPS 300 / 0170
M 6 3.18 5.54 8.64 25.40 26.19 1.78 1.73 40-45 Blau 500   EPS 300 / 0218
3.18 5.84 8.89 25.40 26.19 1.78 2.51 40-45 Grau 500   EPS 300 / 0230
3.30 5.33 9.14 12.70 12.70 1.02 1.02 40-45 Weiss 500   EPS 300 / 0210
M 8 4.06 7.24 10.16 25.40 26.97 1.78 2.49 40-45 Gelb 500   EPS 300 / 0285
4.06 8.51 11.68 25.40 26.19 1.78 3.25 40-45 Orange 500   EPS 300 / 0335
M 10 4.75 8.89 12.01 25.40 26.97 1.78 3.76 40-45 Pink 500   EPS 300 / 0350
5.97 10.67 13.72 25.40 26.97 1.78 4.27 40-45 Grün 250   EPS 300 / 0420
M 12 6.10 11.30 14.22 25.40 26.97 1.78 4.83 40-45 Lila 250   EPS 300 / 0445
6.48 12.45 15.49 25.40 25.40 1.98 3.00 40-45 Weiß 250   EPS 300 / 0490
M 14 6.99 13.85 16.85 25.40 25.40 1.80 3.50 40-45 Rot-Braun 250   EPS 300 / 0545
7.49 14.73 17.78 25.40 25.40 1.80 3.61 40-45 Rot 250   EPS 300 / 0580

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
