EPS 225  High Temperature Masking Silicone Washer Plugs

Silicone washer plugs are designed for masking around a hole for grounding purposes or it can be used as a dual plug.

For closing internal threads and bore holes.

The plug can be used for 2 dimensions and masks the sealing surface around the through hole..

With 2 different, conical pins, with a central protective collar, fits 2 sizes per plug.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Washer Plugs

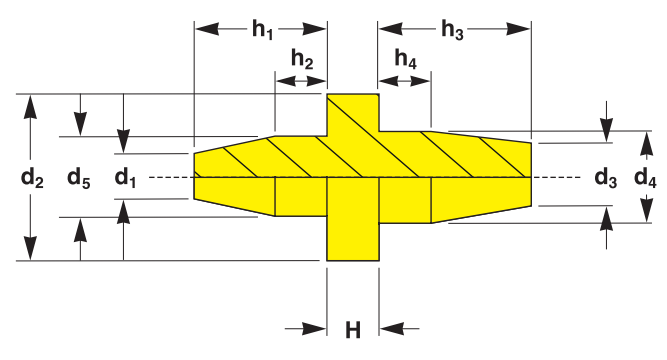

d1 d5 h1 d3 d4 h3 h2 h4 H d2 Pack Article No. Selection
1.40 2.62 5.80 1.80 3.30 7.20 2.00 2.00 5.00 6.40 1.000   EPS 225 / 0103
1.40 2.80 5.80 1.90 3.70 7.40 2.00 2.00 5.00 7.00 1.000   EPS 225 / M3
1.60 3.30 12.70 3.30 5.10 12.70 5.00 5.00 5.00 6.40 1.000   EPS 225 / 0130-0250-0200
1.60 3.30 12.70 2.50 4.60 12.70 3.00 3.80 5.00 7.90 1.000   EPS 225 / 0130-0312-0180
1.60 3.30 12.70 7.20 9.53 12.70 4.60 4.60 4.80 12.70 500   EPS 225 / 0130-0500-0375
1.60 3.94 12.70 3.70 6.05 12.70 5.00 5.00 4.80 9.50 500   EPS 225 / 0155-0375-0238
1.60 3.94 12.70 3.70 6.05 12.70 5.00 5.00 5.00 7.90 1.000   EPS 225 / 0155-0312-0238
1.80 3.20 11.50 3.80 6.50 12.70 3.00 3.80 5.00 15.90 500   EPS 225 / 0127-0625-0256
1.80 3.30 12.70 2.00 3.56 12.70 3.00 3.00 5.00 9.50 1.000   EPS 225 / 0130-0375-0140
1.80 3.30 12.70 2.00 3.60 12.70 3.30 3.50 4.80 6.40 1.000   EPS 225 / 0130-0250-0140
1.80 3.60 7.20 2.40 4.70 9.40 2.00 2.40 5.00 9.00 1.000   EPS 225 / M4
1.80 3.90 12.70 2.60 5.08 12.70 3.50 3.50 4.00 6.40 1.000   EPS 225 / 0155-0250-0200
1.90 3.15 9.80 3.30 6.40 13.00 3.50 4.50 5.50 8.10 1.000   EPS 225 / 0124-0319-0252
2.00 3.30 7.50 3.00 5.30 10.00 2.50 3.00 5.00 12.70 500   EPS 225 / 0130
2.00 3.52 11.50 2.80 5.05 12.70 3.00 3.50 5.00 9.50 500   EPS 225 / 0140-0375-0200
2.00 3.56 12.70 2.50 4.57 12.70 3.80 3.80 4.80 12.70 500   EPS 225 / 0140-0500-0180
2.00 3.60 12.70 4.00 6.40 12.70 3.80 3.80 4.80 12.70 500   EPS 225 / 0140-0500-0250
2.00 3.60 12.70 4.00 6.40 12.70 3.80 3.80 4.90 15.90 500   EPS 225 / 0140-0625-0250
2.00 3.90 12.70 6.50 9.90 12.70 3.50 4.50 4.90 12.70 500   EPS 225 / 0155-0500-0390
2.30 3.60 12.70 3.00 4.60 12.70 2.50 2.50 5.00 7.90 1.000   EPS 225 / 0142
2.30 3.61 12.70 3.00 4.57 12.70 2.50 2.50 4.80 6.40 1.000   EPS 225 / 0142-0250-0180
2.30 4.50 9.00 2.80 5.70 11.40 2.30 2.80 5.00 9.50 1.000   EPS 225 / M5
2.30 4.57 12.70 3.70 6.05 12.70 3.50 3.50 5.00 6.40 1.000   EPS 225 / 0180-0250-0238
2.50 4.50 12.70 3.20 5.70 12.70 3.30 3.80 5.00 10.00 1.000   EPS 225 / 0177-0394-0224
2.50 4.57 12.70 2.50 4.57 12.70 3.80 3.80 4.80 6.40 1.000   EPS 225 / 0180-0250-0180
2.50 4.57 12.70 2.80 5.08 12.70 2.50 3.00 4.80 7.00 1.000   EPS 225 / 0180-0275-0200
2.50 4.57 12.70 3.00 5.72 12.70 2.50 3.00 4.80 8.90 500   EPS 225 / 0180-0350-0225
2.50 4.60 12.70 2.50 4.60 12.70 3.50 3.50 5.00 9.50 500   EPS 225 / 0180-0375-0180
2.50 4.60 12.70 3.00 5.10 12.70 2.50 3.00 4.80 12.70 500   EPS 225 / 0180-0500-0200
2.50 4.60 12.70 3.00 5.10 12.70 3.00 3.50 4.80 9.50 500   EPS 225 / 0180-0375-0200
2.50 5.08 10.60 3.50 6.96 13.40 2.60 3.40 5.00 9.50 250   EPS 225 / 0200
2.60 3.56 12.20 4.80 6.05 12.20 8.20 3.20 4.90 15.90 500   EPS 225 / 0140-0625-0238
2.60 5.30 10.60 3.40 6.70 13.40 2.60 3.40 5.00 12.50 250   EPS 225 / M6
2.80 4.57 12.70 4.00 6.35 12.70 3.80 3.80 4.80 9.50 500   EPS 225 / 0180-0375-0250
2.80 5.10 12.70 3.80 7.00 12.70 3.00 3.50 5.00 7.90 500   EPS 225 / 0275-0312-0200
3.00 5.10 12.70 3.50 6.00 12.70 2.50 3.00 5.00 7.90 500   EPS 225 / 0200-0312
3.20 5.00 12.50 4.80 7.00 12.70 3.50 4.50 5.00 9.50 500   EPS 225 / 0198-0375-0274
3.50 5.30 12.70 4.50 7.00 12.70 3.00 3.00 5.00 9.50 250   EPS 225 / 0209
3.50 6.05 12.70 3.80 6.35 12.70 3.50 3.80 5.00 12.70 250   EPS 225 / 0238-0500-0250
3.60 7.10 14.20 4.30 8.70 17.40 3.60 4.30 5.00 17.00 250   EPS 225 / M8
3.80 6.40 12.70 3.80 6.40 12.70 5.00 5.00 5.00 9.50 250   EPS 225 / 0250-0375-0250
3.90 5.10 12.50 3.90 7.00 13.00 5.50 5.50 5.00 7.90 500   EPS 225 / 0200-0312-0275
4.00 6.75 12.70 15.30 16.30 12.70 3.50 5.00 5.00 30.00 100   EPS 225 / 0265-1180-0640
4.00 6.73 12.70 15.50 19.43 12.70 3.50 5.00 5.00 30.00 50   EPS 225 / 0265-1180-0765
4.00 6.99 12.70 7.20 9.53 12.70 5.10 5.10 5.10 12.70 250   EPS 225 / 0275-0500-0375
4.10 5.08 13.30 4.60 6.05 13.30 3.20 3.20 4.80 12.70 250   EPS 225 / 0200-0500-0238
4.40 6.99 12.70 7.00 9.53 17.80 3.20 4.70 0.00 9.50 250   EPS 225 / 0275
4.80 9.60 19.20 5.40 10.70 21.40 4.80 5.40 5.00 21.00 100   EPS 225 / M10
5.00 8.40 12.70 5.00 8.40 12.70 4.20 4.20 5.00 20.00 100   EPS 225 / 0331
5.50 10.90 21.80 6.40 12.70 25.40 5.50 6.40 5.00 24.00 100   EPS 225 / M12
7.20 9.52 12.70 9.90 11.55 12.70 5.00 5.00 5.00 12.70 100   EPS 225 / 0375-0500-0455
7.20 9.53 12.70 10.00 13.00 12.70 5.00 5.00 5.00 20.00 100   EPS 225 / 0375-0787-0512
7.20 9.50 12.70 9.90 11.60 12.70 4.50 5.00 5.00 27.90 100   EPS 225 / 0375-1100-0455
7.20 9.91 12.70 8.10 11.60 12.70 5.00 5.00 5.00 12.70 100   EPS 225 / 0390-0500-0455
7.30 8.79 12.70 8.90 10.49 12.70 4.50 4.50 5.00 15.90 100   EPS 225 / 0346
7.80 14.00 12.70 12.10 18.00 12.70 6.00 6.40 5.00 24.00 100   EPS 225 / 0551-0945-0709
11.50 14.00 12.70 14.00 17.50 12.70 3.50 3.50 5.00 20.00 100   EPS 225 / 0551

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
