EPS 200  High Temperature Masking Silicone Flangeless Plugs - with Centre Pull Tab

Flangeless Plugs have a tapered design and hollow core to allow a single plug to be used in both threaded or non-threaded holes of varying sizes.

Protect bore holes and internal threads without masking surrounding area.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature  Masking  Silicone Flangeless Plugs -  with Centre Pull Tab

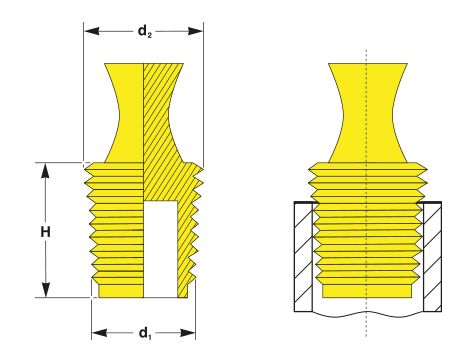

d1 d2 H Shore A Pack Article No. Selection
2.01 3.99 19.05 50 500   EPS 200 / 0157-0079
3.99 5.99 25.40 80 250   EPS 200 / 0236-0157
4.78 10.54 25.40 70 1.000   EPS 200 / 0415-0188
5.99 8.00 25.40 80 250   EPS 200 / 0315-0236
7.95 10.31 25.40 75 250   EPS 200 / 0406-0313
8.00 10.01 25.40 80 250   EPS 200 / 0394-0315
10.01 11.99 25.40 75 250   EPS 200 / 0472-0394
10.31 11.89 25.40 75 250   EPS 200 / 0468-0406
10.54 16.28 25.40 70 500   EPS 200 / 0641-0415
11.89 14.27 25.40 75 250   EPS 200 / 0562-0468
11.99 14.00 25.40 75 250   EPS 200 / 0551-0472
14.00 16.00 25.40 75 250   EPS 200 / 0630-0551
14.27 15.88 25.40 75 250   EPS 200 / 0625-0562
15.88 18.24 25.40 75 250   EPS 200 / 0718-0625
16.00 18.01 25.40 75 250   EPS 200 / 0709-0630
16.28 22.05 25.40 70 100   EPS 200 / 0868-0641
18.01 19.99 25.40 70 100   EPS 200 / 0787-0709
18.24 19.05 25.40 70 250   EPS 200 / 0750-0718
19.05 22.23 25.40 70 100   EPS 200 / 0875-0750
19.99 22.50 25.40 70 100   EPS 200 / 0886-0787
22.05 27.79 25.40 70 100   EPS 200 / 1094-0868
22.23 25.40 25.40 65 100   EPS 200 / 1000-0875
22.50 24.00 25.40 70 100   EPS 200 / 0945-0886
24.00 26.01 25.40 65 100   EPS 200 / 1024-0945
25.40 28.58 25.40 65 100   EPS 200 / 1125-1000
26.01 27.99 25.40 65 100   EPS 200 / 1102-1024
27.79 33.53 25.40 70 100   EPS 200 / 1320-1094
28.58 31.75 25.40 65 100   EPS 200 / 1250-1125
33.53 39.29 25.40 70 100   EPS 200 / 1547-1320
39.29 45.06 25.40 70 100   EPS 200 / 1774-1547
45.06 50.80 25.40 70 100   EPS 200 / 2000-1774

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
