SRM 3600 DIN  Sprayout-Safety-Steel-Ring DIN

This range is designed for installation over flange joints to prevent injury and damage in the event of a hazardous spray out.
Steel Rings SRM 3600 are used for high temperature and/or pressure applications when PP spray shields are unsuitable for the design conditions.

Stainless steel spray shields in 316 are suitable for maximum operating temperature of 1100 °C and maximum operating pressures of 240 bar.

Stainless steel ASTM 316 for high temperature resistance.

Sizes up to DN 600.

Material : Stainless steel ASTM 316

Sprayout-Safety-Steel-Ring DIN


Nominal
Size
150 lbs. 300 lbs. 400 lbs. 600 lbs. Flange
Diameter
BSP
D
Flange
Diameter
Inch
D

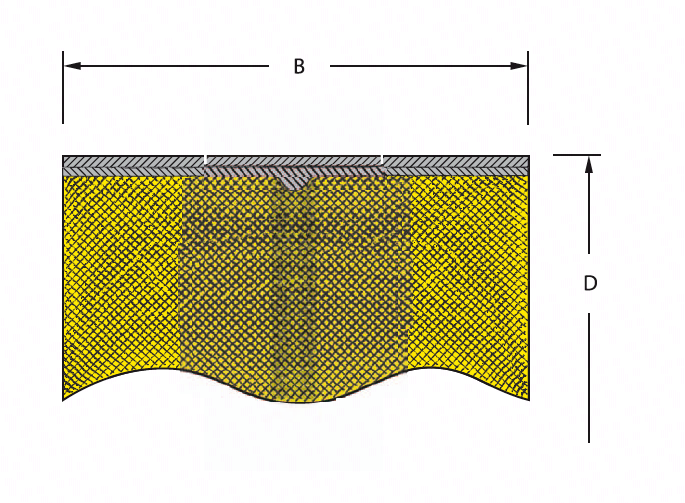

Ring
Width
B
Article No. Selection
DN 10 75.0 50.0   SRM DN 10/PN 6
DN 10 90.0 90.0 90.0 90.0 50.0   SRM DN 10/PN 10-40
DN 10 90.0 90.0 90.0 90.0 70.0   SRM DN 10/PN 10-40
DN 10 100.0 100.0 50.0   SRM DN 10/PN 64-100
DN 15 80.0 50.0   SRM DN 15/PN 6
DN 15 95.0 95.0 95.0 95.0 50.0   SRM DN 15/PN 10-40
DN 15 95.0 95.0 95.0 95.0 70.0   SRM DN 15/PN 10-40
DN 15 105.0 105.0 50.0   SRM. DN 15/PN 64-100
DN 15 105.0 105.0 70.0   SRM DN 15/PN 64-100
DN 20 90.0 50.0   SRM DN 20/PN 6
DN 20 90.0 70.0   SRM DN 20/PN 6
DN 20 105.0 105.0 105.0 105.0 50.0   SRM. DN 20/PN 10-40
DN 20 105.0 105.0 105.0 105.0 70.0   SRM DN 20/PN 10-40
DN 25 100.0 50.0   SRM DN 25/PN 6
DN 25 115.0 115.0 115.0 115.0 50.0   SRM. DN 25/PN 10-40
DN 25 115.0 115.0 115.0 115.0 70.0   SRM. DN 25/PN 10-40
DN 25 140.0 140.0 50.0   SRM. DN 25/PN 64-100
DN 25 140.0 140.0 70.0   SRM DN 25/PN 64-100
DN 32 120.0 50.0   SRM DN 32/PN 6
DN 32 140.0 140.0 140.0 140.0 50.0   SRM. DN 32/PN 10-40
DN 32 140.0 140.0 140.0 140.0 70.0   SRM DN 32/PN 10-40
DN 40 130.0 50.0   SRM DN 40/PN 6
DN 40 150.0 150.0 150.0 150.0 50.0   SRM. DN 40/PN 10-40
DN 40 150.0 150.0 150.0 150.0 70.0   SRM DN 40/PN 10-40
DN 40 170.0 170.0 50.0   SRM DN 40/PN 64-100
DN 50 140.0 50.0   SRM. DN 50/PN 6
DN 50 140.0 70.0   SRM DN 50/PN 6
DN 50 165.0 165.0 165.0 165.0 50.0   SRM. DN 50/PN 10-40
DN 50 165.0 165.0 165.0 165.0 70.0   SRM. DN 50/PN 10-40
DN 50 180.0 50.0   SRM DN 50/PN 64
DN 50 195.0 50.0   SRM DN 50/PN 100
DN 65 160.0 50.0   SRM DN 65/PN 6
DN 65 160.0 70.0   SRM DN 65/PN 6
DN 65 185.0 185.0 185.0 185.0 50.0   SRM. DN 65/PN 10-40
DN 65 185.0 185.0 185.0 185.0 70.0   SRM DN 65/PN 10-40
DN 65 205.0 50.0   SRM DN 65/PN 64
DN 65 220.0 50.0   SRM. DN 65/PN 100
DN 65 220.0 70.0   SRM. DN 65/PN 100
DN 80 190.0 50.0   SRM DN 80/PN 6
DN 80 190.0 70.0   SRM DN 80/PN 6
DN 80 200.0 200.0 200.0 200.0 50.0   SRM. DN 80/PN 10-40
DN 80 200.0 200.0 200.0 200.0 70.0   SRM. DN 80/PN 10-40
DN 80 215.0 50.0   SRM DN 80/PN 64
DN 80 230.0 50.0   SRM DN 80/PN 100
DN 100 210.0 50.0   SRM DN 100/PN 6
DN 100 210.0 70.0   SRM DN 100/PN 6
DN 100 200.0 200.0 50.0   SRM. DN 100/PN 10-16
DN 100 200.0 200.0 70.0   SRM. DN 100/PN 10-16
DN 100 235.0 235.0 50.0   SRM DN 100/PN 25-40
DN 100 235.0 235.0 70.0   SRM DN 100/PN 25-40
DN 100 250.0 50.0   SRM DN 100/PN 64
DN 100 250.0 70.0   SRM DN 100/PN 64
DN 100 265.0 50.0   SRM DN 100/PN 100
DN 100 265.0 70.0   SRM DN 100/PN 100
DN 125 240.0 50.0   SRM DN 125/PN 6
DN 125 240.0 70.0   SRM DN 125/PN 6
DN 125 250.0 250.0 50.0   SRM DN 125/PN 10-16
DN 125 250.0 250.0 70.0   SRM DN 125/PN 10-16
DN 125 270.0 270.0 50.0   SRM DN 125/PN 25-40
DN 125 270.0 270.0 70.0   SRM DN 125/PN 25-40
DN 125 295.0 50.0   SRM DN 125/PN 64
DN 125 315.0 50.0   SRM DN 125/PN 100
DN 150 265.0 50.0   SRM DN 150/PN 6
DN 150 265.0 70.0   SRM DN 150/PN 6
DN 150 285.0 285.0 50.0   SRM. DN 150/PN 10-16
DN 150 285.0 285.0 70.0   SRM DN 150/PN 10-16
DN 150 300.0 300.0 50.0   SRM DN 150/PN 25-40
DN 150 300.0 300.0 70.0   SRM DN 150/PN 25-40
DN 150 345.0 50.0   SRM DN 150/PN 64
DN 150 355.0 50.0   SRM DN 150/PN 100
DN 200 320.0 50.0   SRM. DN 200/PN 6
DN 200 320.0 70.0   SRM. DN 200/PN 6
DN 200 340.0 340.0 50.0   SRM. DN 200/PN 10-16
DN 200 340.0 340.0 70.0   SRM. DN 200/PN 10-16
DN 200 360.0 50.0   SRM. DN 200/PN 25
DN 200 360.0 70.0   SRM. DN 200/PN 25
DN 200 375.0 50.0   SRM. DN 200/PN 40
DN 200 375.0 70.0   SRM. DN 200/PN 40
DN 200 415.0 50.0   SRM. DN 200/PN 64
DN 200 430.0 50.0   SRM. DN 200/PN 100
DN 250 375.0 50.0   SRM. DN 250/PN 6
DN 250 375.0 70.0   SRM. DN 250/PN 6
DN 250 395.0 50.0   SRM. DN 250/PN 10
DN 250 395.0 70.0   SRM. DN 250/PN 10
DN 250 405.0 50.0   SRM. DN 250/PN 16
DN 250 425.0 50.0   SRM. DN 250/PN 25
DN 250 425.0 70.0   SRM. DN 250/PN 25
DN 250 450.0 50.0   SRM. DN 250/PN 40
DN 250 450.0 70.0   SRM. DN 250/PN 40
DN 250 470.0 50.0   SRM. DN 250/PN 64
DN 250 505.0 50.0   SRM. DN 250/PN 100
DN 250 505.0 70.0   SRM. DN 250/PN 100
DN 300 440.0 50.0   SRM. DN 300/PN 6
DN 300 440.0 70.0   SRM. DN 300/PN 6
DN 300 445.0 50.0   SRM. DN 300/PN 10
DN 300 445.0 70.0   SRM. DN 300/PN 10
DN 300 460.0 50.0   SRM. DN 300/PN 16
DN 300 485.0 50.0   SRM. DN 300/PN 25
DN 300 485.0 70.0   SRM. DN 300/PN 25
DN 300 515.0 50.0   SRM. DN 300/PN 40
DN 300 515.0 70.0   SRM. DN 300/PN 40
DN 300 530.0 50.0   SRM. DN 300/PN 64
DN 300 585.0 50.0   SRM. DN 300/PN 100
DN 350 490.0 50.0   SRM. DN 350/PN 6
DN 350 490.0 70.0   SRM. DN 350/PN 6
DN 350 505.0 50.0   SRM. DN 350/PN 10
DN 350 505.0 70.0   SRM. DN 350/PN 10
DN 350 520.0 50.0   SRM. DN 350/PN 16
DN 350 555.0 50.0   SRM. DN 350/PN 25
DN 350 555.0 70.0   SRM. DN 350/PN 25
DN 350 580.0 50.0   SRM. DN 350/PN 40
DN 350 580.0 70.0   SRM. DN 350/PN 40
DN 350 600.0 50.0   SRM. DN 350/PN 64
DN 350 655.0 50.0   SRM. DN 350/PN 100
DN 400 540.0 50.0   SRM. DN 400/PN 6
DN 400 540.0 70.0   SRM. DN 400/PN 6
DN 400 565.0 50.0   SRM. DN 400/PN 10
DN 400 565.0 70.0   SRM. DN 400/PN 10
DN 400 580.0 50.0   SRM. DN 400/PN 16
DN 400 580.0 70.0   SRM. DN 400/PN 16
DN 400 620.0 50.0   SRM. DN 400/PN 25
DN 400 620.0 70.0   SRM. DN 400/PN 25
DN 400 660.0 50.0   SRM. DN 400/PN 40
DN 400 670.0 50.0   SRM. DN 400/PN 64
DN 400 670.0 70.0   SRM. DN 400/PN 64
DN 500 645.0 50.0   SRM. DN 500/PN 6
DN 500 645.0 70.0   SRM. DN 500/PN 6
DN 500 670.0 50.0   SRM. DN 500/PN 10
DN 500 670.0 70.0   SRM. DN 500/PN 10
DN 500 715.0 50.0   SRM. DN 500/PN 16
DN 500 730.0 50.0   SRM. DN 500/PN 25
DN 500 730.0 70.0   SRM. DN 500/PN 25
DN 500 755.0 50.0   SRM. DN 500/PN 40
DN 500 755.0 70.0   SRM. DN 500/PN 40
DN 600 755.0 50.0   SRM. DN 600/PN 6
DN 600 755.0 70.0   SRM. DN 600/PN 6
DN 600 780.0 50.0   SRM. DN 600/PN 10
DN 600 780.0 70.0   SRM. DN 600/PN 10
DN 600 840.0 50.0   SRM. DN 600/PN 16
DN 600 845.0 50.0   SRM. DN 600/PN 25
DN 700 860.0 50.0   SRM. DN 700/PN 6
DN 700 860.0 70.0   SRM. DN 700/PN 6
DN 700 895.0 50.0   SRM. DN 700/PN 10
DN 700 895.0 70.0   SRM. DN 700/PN 10
DN 700 910.0 50.0   SRM. DN 700/PN 16
DN 700 960.0 50.0   SRM. DN 700/PN 25
DN 800 975.0 50.0   SRM. DN 800/PN 6
DN 800 975.0 70.0   SRM. DN 800/PN 6
DN 800 1015.0 50.0   SRM. DN 800/PN 10
DN 800 1015.0 70.0   SRM. DN 800/PN 10
DN 800 1025.0 50.0   SRM. DN 800/PN 16
DN 800 1085.0 50.0   SRM. DN 800/PN 25
DN 900 1075.0 50.0   SRM. DN 900/PN 6
DN 900 1075.0 70.0   SRM. DN 900/PN 6
DN 900 1115.0 50.0   SRM. DN 900/PN 10
DN 900 1125.0 50.0   SRM. DN 900/PN 16
DN 900 1185.0 50.0   SRM. DN 900/PN 25
DN 1000 1175.0 50.0   SRM. DN1000/PN 6
DN 1000 1175.0 70.0   SRM. DN1000/PN 6
DN 1000 1230.0 50.0   SRM. DN1000/PN 10
DN 1000 1255.0 50.0   SRM. DN1000/PN 16
DN 1000 1320.0 50.0   SRM. DN1000/PN 25

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
