SRM 3600 ANSI  Sprayout-Safety-Steel-Ring ANSI

This range is designed for installation over flange joints to prevent injury and damage in the event of a hazardous spray out. Steel Rings SRM 3600 are used for high temperature and/or pressure applications when PP spray shields are unsuitable for the design conditions.

Stainless steel spray shields in “316” are suitable for maximum operating temperature of 1100 °C and maximum operating pressures of 240 bar.

Stainless steel ASTM 316 for high temperature resistance.

Sizes up to ANSI 24. 600

Material : Stainless steel ASTM 316

Sprayout-Safety-Steel-Ring ANSI


Nominal
Size
150 lbs. 300 lbs. 400 lbs. 600 lbs. Flange
Diameter
BSP
D
Flange
Diameter
Inch
D

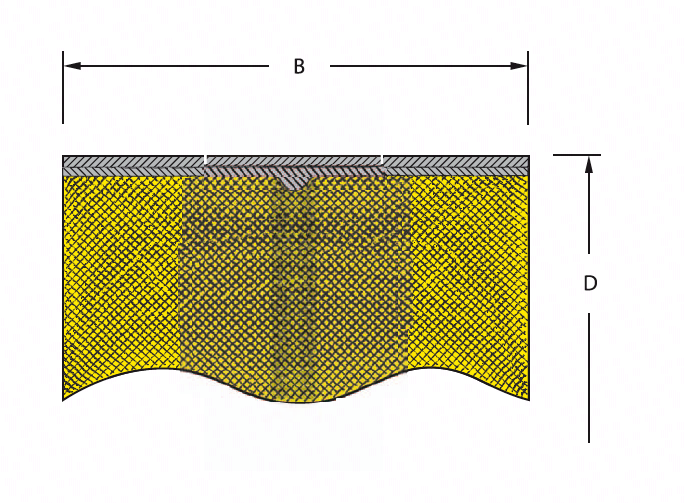

Ring
Width
B
Article No. Selection
ANSI .1/2 o 89.0 3.1/2 50.0   SRM .1/2 150
ANSI .1/2 o o o 95.0 3.3/4 50.0   SRM. .1/2 300-600
ANSI .3/4 o 99.0 3.7/8 50.0   SRM. .3/4 150
ANSI .3/4 o o o 117.0 4.5/8 50.0   SRM. .3/4 300-600
ANSI 1. o 108.0 4.1/4 50.0   SRM. 1. 150
ANSI 1. o o o 124.0 4.7/8 50.0   SRM 1. 300-600
ANSI 1.1/4 o 117.0 4.5/8 50.0   SRM. 1.1/4 150
ANSI 1.1/4 o o o 133.0 5.1/4 50.0   SRM 1.1/4 300-600
ANSI 1.1/2 o 127.0 5. 50.0   SRM 1.1/2 150
ANSI 1.1/2 o o o 155.0 6.1/8 50.0   SRM. 1.1/2 300-600
ANSI 2. o 152.0 6. 50.0   SRM. 2. 150
ANSI 2. o o o 165.0 6.1/2 50.0   SRM. 2. 300-600
ANSI 2.1/2 o 178.0 7. 50.0   SRM 2.1/2 150
ANSI 2.1/2 o o o 191.0 7.1/2 50.0   SRM 2.1/2 300-600
ANSI 3. o 191.0 7.1/2 50.0   SRM 3. 150
ANSI 3. o o o 210.0 8.1/4 50.0   SRM 3. 300-600
ANSI 3.1/2 o 216.0 8.1/2 50.0   SRM 3.1/2 150
ANSI 3.1/2 o o o 229.0 9. 50.0   SRM 3.1/2 300-600
ANSI 4. o 229.0 9. 50.0   SRM 4. 150
ANSI 4. o o 254.0 10. 50.0   SRM 4. 300-400
ANSI 4. o 273.0 10.3/4 50.0   SRM 4. 600
ANSI 5. o 254.0 10. 50.0   SRM 5. 150
ANSI 5. o o 280.0 11. 50.0   SRM. 5. 300-400
ANSI 5. o 330.0 13. 50.0   SRM 5. 600
ANSI 6. o 280.0 11. 50.0   SRM. 6. 150
ANSI 6. o o 318.0 12.1/2 50.0   SRM 6. 300-400
ANSI 6. o 356.0 14. 50.0   SRM 6. 600
ANSI 8. o 343.0 13.1/2 50.0   SRM. 8. 150
ANSI 8. o o 381.0 15. 50.0   SRM. 8. 300-400
ANSI 8. o 419.0 16.1/2 50.0   SRM. 8. 600
ANSI 10. o 406.0 16. 50.0   SRM. 10. 150
ANSI 10. o o 445.0 17.1/2 50.0   SRM. 10. 300-400
ANSI 10. o 508.0 20. 50.0   SRM. 10. 600
ANSI 12. o 483.0 19. 50.0   SRM. 12. 150
ANSI 12. o o 521.0 20.1/2 50.0   SRM. 12. 300-400
ANSI 12. o 559.0 22. 50.0   SRM. 12. 600
ANSI 14. o 533.0 21. 50.0   SRM. 14. 150
ANSI 14. o o 584.0 23. 50.0   SRM. 14. 300-400
ANSI 14. o 603.0 23.3/4 50.0   SRM. 14. 600
ANSI 16. o 597.0 23.1/2 50.0   SRM. 16. 150
ANSI 16. o o 648.0 25.1/2 50.0   SRM. 16. 300-400
ANSI 16. o 686.0 27. 50.0   SRM. 16. 600
ANSI 18. o 635.0 25. 50.0   SRM. 18. 150
ANSI 18. o o 711.0 28. 50.0   SRM. 18. 300-400
ANSI 18. o 743.0 29.1/4 50.0   SRM. 18. 600
ANSI 20. o 699.0 27.1/2 50.0   SRM. 20. 150
ANSI 20. o o 775.0 30.1/2 50.0   SRM. 20. 300-400
ANSI 20. o 813.0 32. 50.0   SRM. 20. 600
ANSI 24. o 813.0 32. 50.0   SRM. 24. 150
ANSI 24. o o 914.0 36. 50.0   SRM. 24. 300-400
ANSI 24. o 940.0 37. 50.0   SRM. 24. 600

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
