EPN 750  Brass Thread Adapters M -> PG

From metric external thread up to PG internal thread and from PG external thread up to metric internal thread.

Nickel plated.

Material   :   Brass, nickel plated

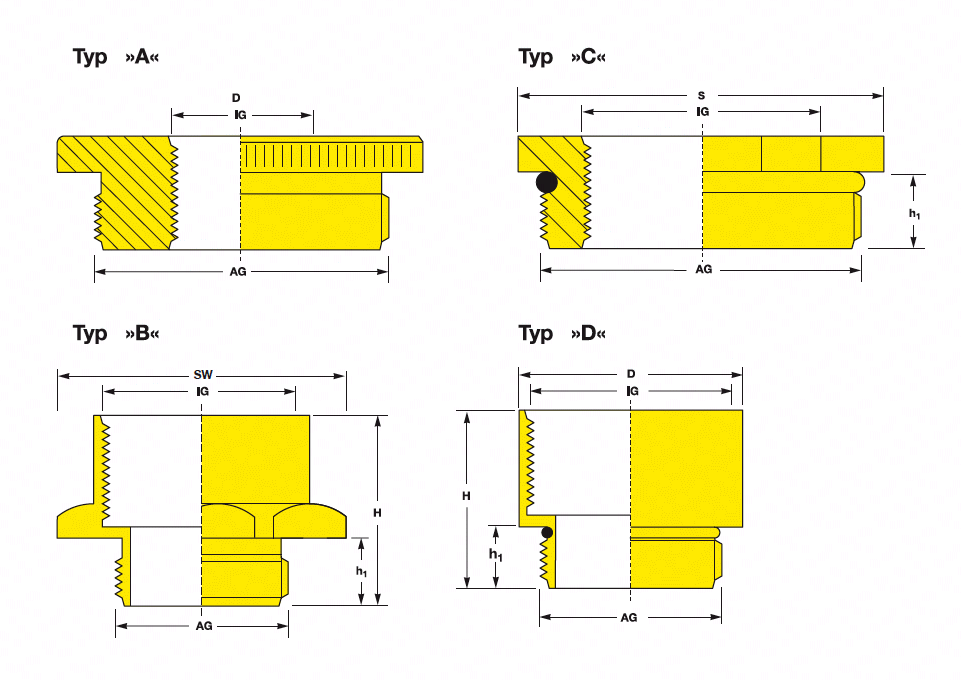

Brass Thread Adapters M -> PG


from Thread
external
AG
to Thread
internal
IG
Type Spanner-
size
SW
Diameter
outside
D
Height
H
Length of
Thread
h1
Article No. Selection
M 12 PG 7 B SW 14 - 16.0 6.0   EPN 750/ M 12 - PG 7
M 12 PG 9 D - 17.0 16.0 5.0   EPN 750/ M 12 - PG 9
M 16 PG 7 C SW 17 - 8.0 5.0   EPN 750/ M 16 - PG 7
M 16 PG 9 B SW 18 - 17.5 7.0   EPN 750/ M 16 - PG 9
M 16 PG 11 D - 20.0 16.5 5.0   EPN 750/ M 16 - PG 11
M 20 PG 9 C SW 22 - 9.1 5.9   EPN 750/ M 20 - PG 9
M 20 PG 11 B SW 22 - 17.5 6.4   EPN 750/ M 20 - PG 11
M 20 PG 13.5 B SW 22 - 19.0 6.5   EPN 750/ M 20 - PG 13.5
M 20 PG 16 D - 24.0 19.5 6.0   EPN 750/ M 20 - PG 16
M 25 PG 9 C SW 27 - 10.0 7.0   EPN 750/ M 25 - PG 9
M 25 PG 11 A - 30.0 10.0 7.0   EPN 750/ M 25 - PG 11
M 25 PG 13.5 A - 30.0 10.0 7.0   EPN 750/ M 25 - PG 13.5
M 25 PG 16 B SW 27 30.0 18.1 7.0   EPN 750/ M 25 - PG 16
M 25 PG 21 D - 30.0 22.5 7.0   EPN 750/ M 25 - PG 21
M 32 PG 16 C SW 34 - 11.0 8.0   EPN 750/ M 32 - PG 13.5
M 32 PG 16 A - 39.0 11.5 8.0   EPN 750/ M 32 - PG 16
M 32 PG 21 C SW 34 11.1 8.0   EPN 750/ M 32 - PG 21
M 32 PG 29 D - 39.0 25.0 8.0   EPN 750/ M 32 - PG 29
M 40 PG 16 C SW 43 - 12.0 8.0   EPN 750/ M 40 - PG 16
M 40 PG 21 C SW 43 - 12.0 8.0   EPN 750/ M 40 - PG 21
M 40 PG 29 C SW 43 - 12.0 8.0   EPN 750/ M 40 - PG 29
M 40 PG 36 D - 50.0 27.5 8.0   EPN 750/ M 40 - PG 36
M 50 PG 21 C SW 55 - 13.0 9.0   EPN 750/ M 50 - PG 21
M 50 PG 29 A - 57.0 12.0 9.0   EPN 750/ M 50 - PG 29
M 50 PG 36 C SW 55 - 13.1 9.0   EPN 750/ M 50 - PG 36
M 50 PG 42 D - 57.0 31.0 9.0   EPN 750/ M 50 - PG 42
M 50 PG 48 D - 64.0 32.0 9.0   EPN 750/ M 50 - PG 48
M 63 PG 29 C SW 65 - 14.0 10.0   EPN 750/ M 63 - PG 29
M 63 PG 36 A - 70.0 14.5 10.5   EPN 750/ M 63 - PG 36
M 63 PG 42 A - 70.0 14.5 10.5   EPN 750/ M 63 - PG 42
M 63 PG 48 B SW 65 33.0 10.0   EPN 750/ M 63 - PG 48
PG 7 M 12 B SW 14 15.0 5.0   EPN 750/ PG 7 - M 12
PG 9 M 16 B SW 19 16.0 6.0   EPN 750/ PG 9 - M 16
PG 11 M 16 B SW 22 16.0 6.0   EPN 750/ PG 11 - M 16
PG 13.5 M 20 B SW 24 17.5 6.5   EPN 750/ PG 13.5 - M 20
PG 16 M 20 B SW 27 17.5 6.5   EPN 750/ PG 16 - M 20
PG 16 M 25 B SW 27 18.0 7.0   EPN 750/ PG 16 - M 25
PG 21 M 25 A - 10.0 7.0   EPN 750/ PG 21 - M 25
PG 21 M 32 B SW 36 19.5 8.0   EPN 750/ PG 21 - M 32
PG 29 M 40 B SW 42 20.0 8.5   EPN 750/ PG 29 - M 40
PG 36 M 50 B SW 55 23.0 9.0   EPN 750/ PG 36 - M 50
PG 42 M 63 B SW 65 25.0 10.0   EPN 750/ PG 42 - M 63

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
