EPN 740  Brass Thread Enlargers

These components enlarge the threaded entry diameter on any threaded interface from a smaller to larger thread size in order to accept a suitable gland. Configuration: from small external Metric to large internal Metric and from small external PG to large internal PG.

Material   :   Brass, nickel plated

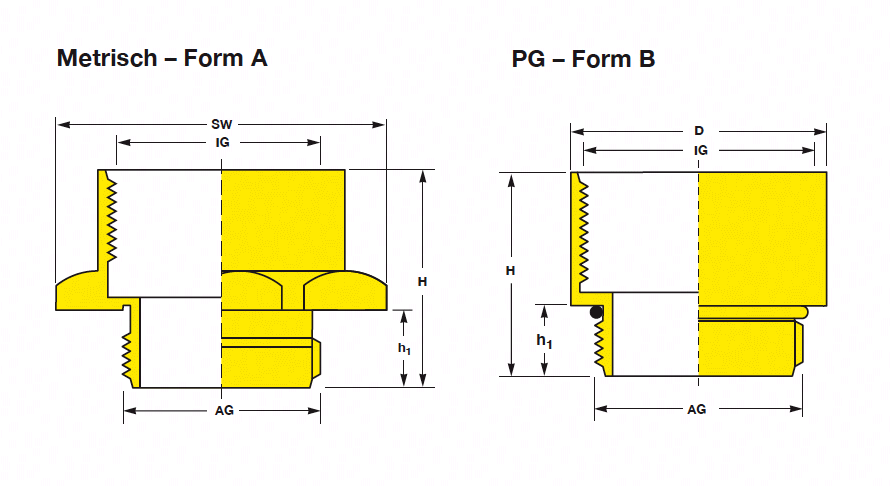

Brass Thread Enlargers


from Thread external
AG
to Thread internal
IG
SW/D Length of
Thread
h1
Height
H
Form Article No. Selection
M 12 M 16 18.0 5.0 16.0 A   EPN 740/ M 12 - M 16
M 16 M 20 22.0 5.0 16.5 A   EPN 740/ M 16 - M 20
M 20 M 25 27.0 6.0 18.5 A   EPN 740/ M 20 - M 25
M 25 M 32 34.0 7.0 20.5 A   EPN 740/ M 25 - M 32
M 32 M 40 42.0 8.0 23.5 A   EPN 740/ M 32 - M 40
M 40 M 50 52.0 8.0 30.5 A   EPN 740/ M 40 - M 50
M 50 M 63 65.0 9.0 32.5 A   EPN 740/ M 50 - M 63
PG 7 PG 9 17.0 5.0 15.0 B   EPN 740/ PG 7 - PG 9
PG 9 PG 11 20.0 6.0 16.5 B   EPN 740/ PG 9 - PG 11
PG 11 PG 13.5 22.0 6.0 17.7 B   EPN 740/ PG 11 - PG 13.5
PG 11 PG 16 24.0 5.9 18.5 B   EPN 740/ PG 11 - PG 16
PG 13.5 PG 16 24.0 6.5 19.0 B   EPN 740/ PG 13.5 - PG 16
PG 16 PG 21 30.0 6.5 21.0 B   EPN 740/ PG 16 - PG 21
PG 21 PG 29 39.0 7.0 23.0 B   EPN 740/ PG 21 - PG 29
PG 29 PG 36 50.0 8.0 27.5 B   EPN 740/ PG 29 - PG 36
PG 36 PG 42 50.0 9.0 31.0 B   EPN 740/ PG 36 - PG 42
PG 42 PG 48 64.0 10.0 33.0 B   EPN 740/ PG 42 - PG 48

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
