EPN 730  Brass Blanking Plugs

Nickel plated.

This range fits a variety of Metirc and PG thread sizes and can be applied for plugging threads in panels from 12mm to 63mm in diameter.

Material   :   Brass, nickel plated


Brass Blanking Plugs

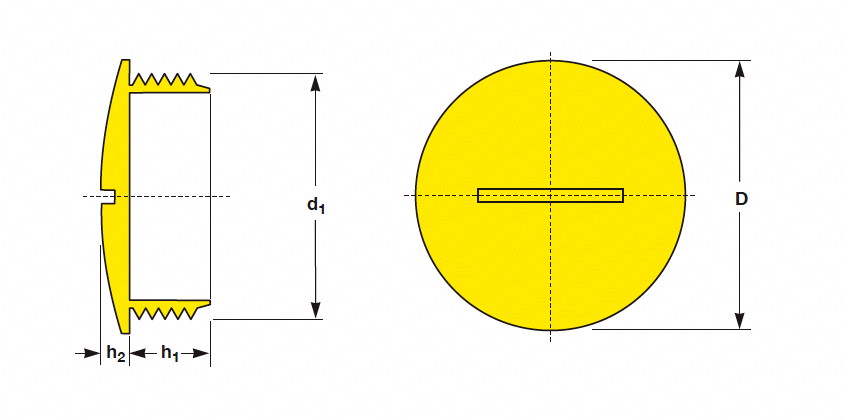

Thread size
d1
Flange Diameter
H
Length of Thread
h1
Article No. Selection
M 12 16.0 5.0   EPN 730/ M 12
M 16 20.0 6.0   EPN 730/ M 16
M 20 24.0 6.5   EPN 730/ M 20
M 25 28.0 7.0   EPN 730/ M 25
M 32 35.0 8.0   EPN 730/ M 32
M 40 45.0 8.0   EPN 730/ M 40
M 50 55.0 9.0   EPN 730/ M 50
M 63 68.0 10.0   EPN 730/ M 63
PG 7 14.0 5.0   EPN 730/ PG 7
PG 9 18.0 6.0   EPN 730/ PG 9
PG 11 21.0 6.0   EPN 730/ PG 11
PG 13.5 23.0 6.5   EPN 730/ PG 13.5
PG 16 25.5 6.5   EPN 730/ PG 16
PG 21 31.0 7.0   EPN 730/ PG 21
PG 29 39.0 8.0   EPN 730/ PG 29
PG 36 50.0 9.0   EPN 730/ PG 36
PG 42 57.0 10.0   EPN 730/ PG 42
PG 48 64.0 10.0   EPN 730/ PG 48

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
