EPN 720  Brass Thread Reducers

These components reduce the threaded entry diameter on any threaded interface from a larger to smaller thread size in order to accept a suitable gland. Configuration: from large external Metric to small internal Metric and from large external PG to small internal PG.

Material   :   Brass, nickel plated


Brass Thread Reducers

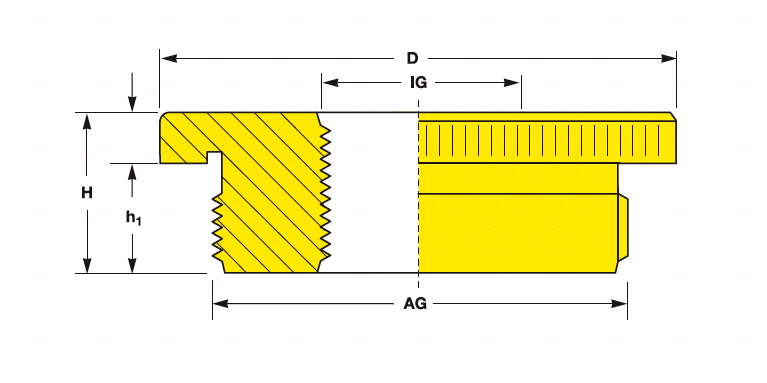

from Thread external
AG
to Thread internal
IG
Diameter
outside
D
Length of
Thread
h1
Height
H
Article No. Selection
M 16 M 12 20.0 6.0 8.5   EPN 720/ M 16 - M 12
M 20 M 12 24.0 6.5 9.0   EPN 720/ M 20 - M 12
M 20 M 16 24.0 6.5 9.0   EPN 720/ M 20 - M 16
M 25 M 16 30.0 7.0 10.0   EPN 720/ M 25 - M 16
M 25 M 20 30.0 7.0 10.0   EPN 720/ M 25 - M 20
M 32 M 20 39.0 8.0 11.5   EPN 720/ M 32 - M 20
M 32 M 25 39.0 8.0 11.5   EPN 720/ M 32 - M 25
M 40 M 25 50.0 9.0 12.5   EPN 720/ M 40 - M 25
M 40 M 32 50.0 9.0 12.5   EPN 720/ M 40 - M 32
M 50 M 32 57.0 10.0 14.0   EPN 720/ M 50 - M 32
M 50 M 40 57.0 10.0 14.0   EPN 720/ M 50 - M 40
M 63 M 40 70.0 10.0 14.0   EPN 720/ M 63 - M 40
M 63 M 50 70.0 10.0 14.0   EPN 720/ M 63 - M 50
PG 9 PG 7 17.0 6.0 8.5   EPN 720/ PG 9 - PG 7
PG 11 PG 7 20.0 6.0 8.5   EPN 720/ PG 11 - PG 7
PG 11 PG 9 20.0 6.0 8.5   EPN 720/ PG 11 - PG 9
PG 13.5 PG 7 22.0 6.5 9.0   EPN 720/ PG 13.5 - PG 7
PG 13.5 PG 9 22.0 6.5 9.0   EPN 720/ PG 13.5 - PG 9
PG 13.5 PG 11 22.0 6.5 9.0   EPN 720/ PG 13.5 - PG 11
PG 16 PG 7 24.0 6.5 9.5   EPN 720/ PG 16 - PG 7
PG 16 PG 9 24.0 6.5 9.5   EPN 720/ PG 16 - PG 9
PG 16 PG 11 24.0 6.5 9.5   EPN 720/ PG 16 - PG 11
PG 16 PG 13.5 24.0 6.5 9.5   EPN 720/ PG 16 - PG 13.5
PG 21 PG 11 30.0 7.0 10.0   EPN 720/ PG 21 - PG 11
PG 21 PG 13.5 30.0 7.0 10.0   EPN 720/ PG 21 - PG 13.5
PG 21 PG 16 30.0 7.0 10.0   EPN 720/ PG 21 - PG 16
PG 29 PG 13.5 39.0 8.0 11.5   EPN 720/ PG 29 - PG 13.5
PG 29 PG 16 39.0 8.0 11.5   EPN 720/ PG 29 - PG 16
PG 29 PG 21 39.0 8.0 11.5   EPN 720/ PG 29 - PG 21
PG 36 PG 16 50.0 9.0 12.5   EPN 720/ PG 36 - PG 16
PG 36 PG 21 50.0 9.0 12.5   EPN 720/ PG 36 - PG 21
PG 36 PG 29 51.0 9.0 12.5   EPN 720/ PG 36 - PG 29
PG 42 PG 21 57.0 10.0 14.0   EPN 720/ PG 42 - PG 21
PG 42 PG 29 57.0 10.0 14.0   EPN 720/ PG 42 - PG 29
PG 42 PG 36 57.0 10.0 14.0   EPN 720/ PG 42 - PG 36
PG 48 PG 29 64.0 10.0 14.0   EPN 720/ PG 48 - PG 29
PG 48 PG 36 64.0 10.0 14.0   EPN 720/ PG 48 - PG 36
PG 48 PG 42 64.0 10.0 14.0   EPN 720/ PG 48 - PG 42

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
