EPN 700  Brass Cable Glands with Domed Head and Parallel Shank

A wide range of high strength compresion type cable glands manufactured in nickel plated brass with eiter PG or metric thread.

Protection similar to IP 68 is achieved by employing a fully insulated Neoprene cable seal and Perbunan O-Ring on external fixing thread.

Material   :   Brass, nickel plated


Brass Cable Glands with Domed Head and Parallel Shank

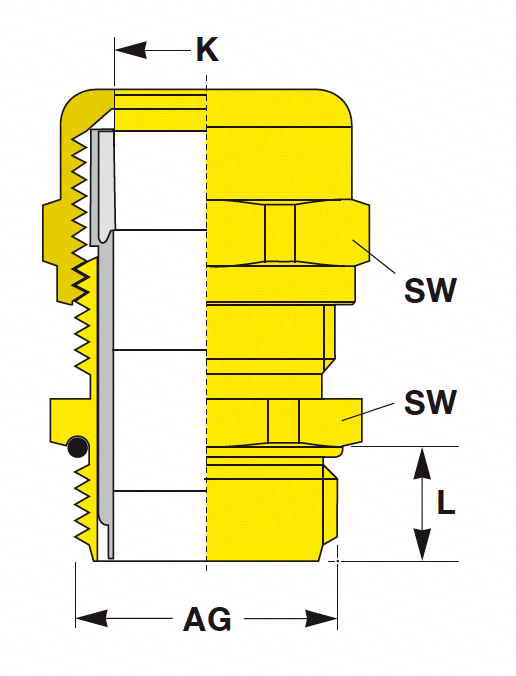

Thread-
Size
AG
Clamping
Range
K
Length of
Thread
L
Spanner
Size
SW
Article No. Selection
M 12x1.5 3.0 - 6.0 5.0 SW 14   EPN 700/ M 12 MS
M 16x1.5 5.0 - 9.0 5.0 SW 17   EPN 700/ M 16 MS
M 20x1.5 8.0 - 13.0 6.0 SW 22   EPN 700/ M 20 MS
M 25x1.5 11.0 - 16.0 7.0 SW 27   EPN 700/ M 25 MS
M 32x1.5 15.0 - 21.0 8.0 SW 34   EPN 700/ M 32 MS
M 40x1.5 19.0 - 27.0 8.0 SW 43   EPN 700/ M 40 MS
M 50x1.5 24.0 - 35.0 9.0 SW 55   EPN 700/ M 50 MS
M 63x1.5 34.0 - 44.0 10.0 SW 65   EPN 700/ M 63 MS
PG 7 3.0 - 6.0 5.0 SW 14   EPN 700/ PG 7 MS
PG 9 4.0 - 8.0 6.0 SW 17   EPN 700/ PG 9 MS
PG 11 5.0 - 10.0 6.3 SW 20   EPN 700/ PG 11 MS
PG 13.5 6.0 - 12.0 6.5 SW 22   EPN 700/ PG 13.5 MS
PG 16 10.0 - 14.0 6.8 SW 24   EPN 700/ PG 16 MS
PG 21 13.0 - 18.0 7.0 SW 30   EPN 700/ PG 21 MS
PG 29 16.0 - 25.0 8.0 SW 40   EPN 700/ PG 29 MS
PG 36 19.0 - 32.0 9.0 SW 50   EPN 700/ PG 36 MS
PG 42 28.0 - 38.0 10.0 SW 57   EPN 700/ PG 42 MS
PG 48 34.0 - 44.0 10.0 SW 64   EPN 700/ PG 48 MS

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
