EPN 650  Thread Enlargers

These components enlarge the threaded entry diameter on any threaded interface from a smaller to larger thread size in order to accept a suitable gland. Configuration: from small external Metric to large internal Metric and from small external PG to large internal PG.

Material   :   Nylon PA 6, GF modified
Standard Colour   :   RAL 7035, light grey

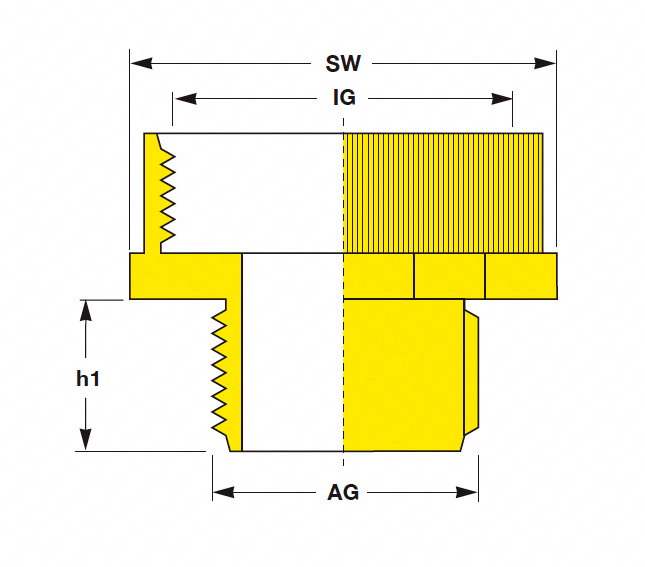

Thread Enlargers


from Thread external
AG
to Thread internal
IG
Spanner-
size
S
Length of
Thread
h1
Article No. Selection
M 12 M 16 SW 20 8.0   EPN 650/ M 12 - M 16
M 16 M 20 SW 24 8.0   EPN 650/ M 16 - M 20
M 20 M 25 SW 30 8.0   EPN 650/ M 20 - M 25
M 25 M 32 SW 37 8.0   EPN 650/ M 25 - M 32
M 32 M 40 SW 45 10.0   EPN 650/ M 32 - M 40
PG 7 PG 9 SW 19 7.0   EPN 650/ PG 7 - PG 9
PG 9 PG 11 SW 22 8.0   EPN 650/ PG 9 - PG 11
PG 11 PG 13.5 SW 24 8.0   EPN 650/ PG 11 - PG 13.5
PG 11 PG 16 SW 27 8.0   EPN 650/ PG 11 - PG 16
PG 13.5 PG 16 SW 27 9.0   EPN 650/ PG 13.5 - PG 16
PG 16 PG 21 SW 32 9.0   EPN 650/ PG 16 - PG 21
PG 21 PG 29 SW 42 10.0   EPN 650/ PG 21 - PG 29
PG 29 PG 36 SW 53 11.0   EPN 650/ PG 29 - PG 36
PG 36 PG 42 SW 60 13.0   EPN 650/ PG 36 - PG 42
PG 42 PG 48 SW 65 13.0   EPN 650/ PG 42 - PG 48

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
