EPN 550  Thread Reducers

This component reduces the threaded entry diameter on any threaded connector from a larger to smaller thread size to accept a gland.

Configuration: from large external Metric to small Metric and from large external PG to small internal PG.

Material   :   Nylon PA 6, GF modified
Standard Colour   :   RAL 7035, light grey

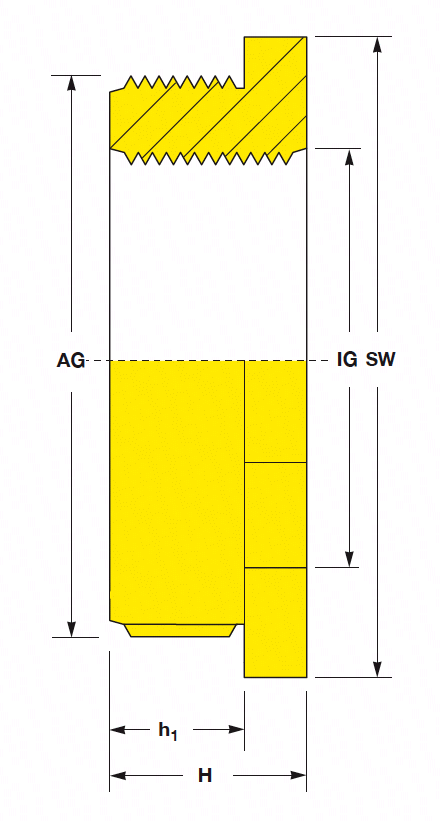

Thread Reducers


from Thread external
AG
to Thread internal
IG
Spanner-
size
Article No. Selection
M 16 M 12 SW 19   EPN 550/ M 16 - M 12
M 20 M 12 SW 24   EPN 550/ M 20 - M 12
M 20 M 16 SW 24   EPN 550/ M 20 - M 16
M 25 M 12 SW 32   EPN 550/ M 25 - M 12
M 25 M 16 SW 29   EPN 550/ M 25 - M 16
M 25 M 20 SW 29   EPN 550/ M 25 - M 20
M 32 M 12 SW 36   EPN 550/ M 32 - M 12
M 32 M 16 SW 36   EPN 550/ M 32 - M 16
M 32 M 20 SW 36   EPN 550/ M 32 - M 20
M 32 M 25 SW 36   EPN 550/ M 32 - M 25
M 40 M 16 SW 46   EPN 550/ M 40 - M 16
M 40 M 20 SW 46   EPN 550/ M 40 - M 20
M 40 M 25 SW 46   EPN 550/ M 40 - M 25
M 40 M 32 SW 46   EPN 550/ M 40 - M 32
M 50 M 20 SW 55   EPN 550/ M 50 - M 20
M 50 M 25 SW 55   EPN 550/ M 50 - M 25
M 50 M 32 SW 55   EPN 550/ M 50 - M 32
M 50 M 40 SW 55   EPN 550/ M 50 - M 40
M 63 M 25 SW 68   EPN 550/ M 63 - M 25
M 63 M 32 SW 68   EPN 550/ M 63 - M 32
M 63 M 40 SW 68   EPN 550/ M 63 - M 40
M 63 M 50 SW 68   EPN 550/ M 63 - M 50
PG 9 PG 7 SW 19   EPN 550/ PG 9 - PG 7
PG 11 PG 7 SW 22   EPN 550/ PG 11 - PG 7
PG 11 PG 9 SW 22   EPN 550/ PG 11 - PG 9
PG 13.5 PG 7 SW 24   EPN 550/ PG 13.5 - PG 7
PG 13.5 PG 9 SW 24   EPN 550/ PG 13.5 - PG 9
PG 13.5 PG 11 SW 27   EPN 550/ PG 13.5 - PG 11
PG 16 PG 9 SW 27   EPN 550/ PG 16 - PG 9
PG 16 PG 11 SW 27   EPN 550/ PG 16 - PG 11
PG 16 PG 13.5 SW 30   EPN 550/ PG 16 - PG 13.5
PG 21 PG 11 SW 32   EPN 550/ PG 21 - PG 11
PG 21 PG 13.5 SW 36   EPN 550/ PG 21 - PG 13.5
PG 21 PG 16 SW 32   EPN 550/ PG 21 - PG 16
PG 29 PG 13.5 SW 40   EPN 550/ PG 29 - PG 13.5
PG 29 PG 16 SW 40   EPN 550/ PG 29 - PG 16
PG 29 PG 21 SW 40   EPN 550/ PG 29 - PG 21
PG 36 PG 16 SW 60   EPN 550/ PG 36 - PG 16
PG 36 PG 21 SW 60   EPN 550/ PG 36 - PG 21
PG 36 PG 29 SW 50   EPN 550/ PG 36 - PG 29
PG 42 PG 21 SW 65   EPN 550/ PG 42 - PG 21
PG 42 PG 29 SW 65   EPN 550/ PG 42 - PG 29
PG 42 PG 36 SW 55   EPN 550/ PG 42 - PG 36
PG 48 PG 29 SW 70   EPN 550/ PG 48 - PG 29
PG 48 PG 36 SW 60   EPN 550/ PG 48 - PG 36
PG 48 PG 42 SW 70   EPN 550/ PG 48 - PG 42

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
