EPN 470  Threaded Sealing Grommets, open

Wire management. Threaded screw grommets ensure accurate protection of cables and wires passing through threads in metal panels

Hexagon-Head, with open membrane


Material   :   LD-PE, low density polyethylene
Standard Colour   :   RAL 7035, light grey


Threaded Sealing Grommets, open

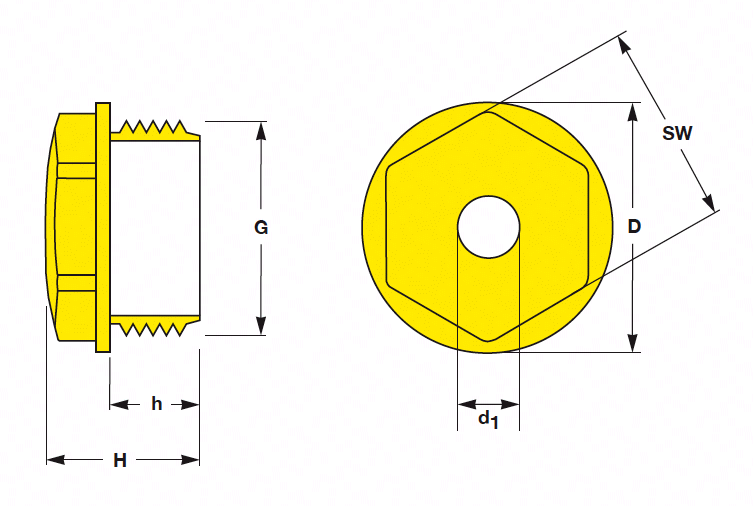

Thread
Size
G
Clamping
Range
Flange
D
Centered
Hole
d1
Spanner-
Size
SW
Length of
Thread
h
Depth
H
Article No. Selection
M 16 x 1.5 5.0 - 10.0 19.8 4.5 SW 15 9.5 17.0   EPN 470/ M 16
M 20 x 1.5 8.0 - 13.5 24.0 7.0 SW 19 12.0 20.0   EPN 470/ M 20
M 25 x 1.5 9.0 - 16.0 29.5 8.0 SW 24 12.0 22.0   EPN 470/ M 25
M 32 x 1.5 11.0 - 22.0 37.5 9.5 SW 30 14.8 26.0   EPN 470/ M 32
M 40 x 1.5 17.0 - 24.0 45.5 15.0 SW 37 16.0 29.0   EPN 470/ M 40
M 50 x 1.5 22.0 - 35.0 55.5 20.0 SW 46 18.0 32.0   EPN 470/ M 50
M 63 x 1.5 24.0 - 43.0 68.8 22.0 SW 56 20.0 38.0   EPN 470/ M 63

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
