EPN 460  Threaded Sealing Grommets, semi - blind

Wire management. Self-sealing threaded screw grommets ensure accurate sealing of pre-installated threads in metal panels. Can be pierced by wires or cables to be used as an open grommet

Ingress Rating IP 54. With piercing membrane

Material   :   LD-PE, low density polyethylene
Standard Colour   :   RAL 7035, light grey

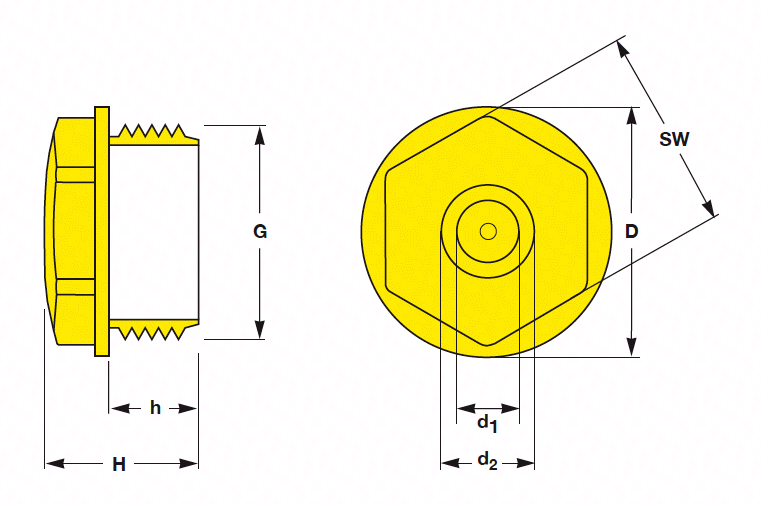

Threaded Sealing Grommets, semi - blind


Thread
Size
G
Clamping
Range
Flange
D
d1 d2 Spanner-
Size
SW
Length of
Thread
h
Depth
H
Article No. Selection
PG 13.5 7.0 - 10.0 22.8 11.0 SW 17 11.0 18.2   EPN 460/ PG 13.5
PG 16 7.0 - 10.0 22.5 7.0 SW 19 11.0 18.5   EPN 460/ PG 16
M 16 x 1.5 5.0 - 10.0 19.8 4.5 SW 15 9.5 17.0   EPN 460/ M 16
M 20 x 1.5 8.0 - 13.5 24.0 7.0 SW 19 12.0 20.0   EPN 460/ M 20
M 25 x 1.5 9.0 - 16.0 29.5 8.0 SW 24 12.9 22.0   EPN 460/ M 25
M 32 x 1.5 11.0 - 22.0 37.5 9.0 SW 30 14.0 25.0   EPN 460/ M 32
M 40 x 1.5 17.0 - 24.0 45.8 15.0 SW 37 16.0 29.0   EPN 460/ M 40
M 50 x 1.5 22.0 - 35.0 55.8 20.0 28.0 SW 46 18.0 32.0   EPN 460/ M 50
M 63 x 1.5 24.0 - 43.0 68.8 22.0 33.0 SW 56 19.5 38.0   EPN 460/ M 63

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
