EPN 355  Hexagonal Locknuts flangeless

This range fits a variety of thread sizes and can be applied for a range of applications.


These locknuts are durable, non-conductive and resistant to corrosion.

Material   :   Strong Nylon 6
Standard Colour   :   black, white, red, light grey, dark grey

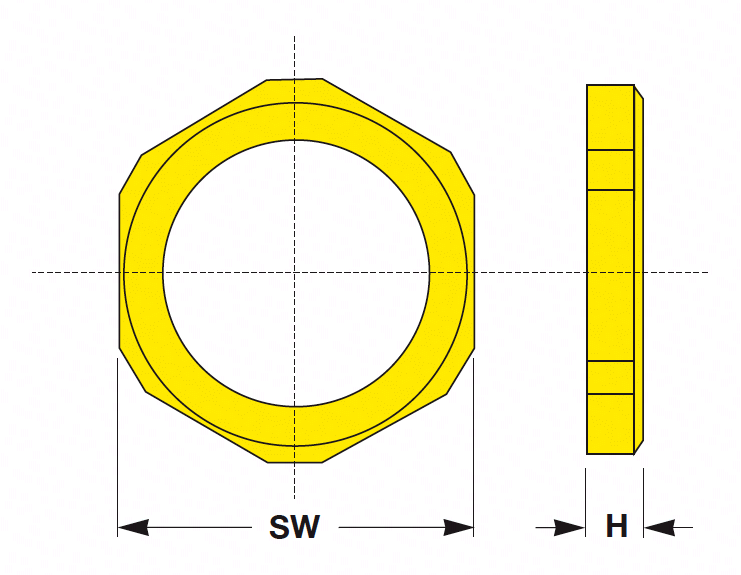

Hexagonal Locknuts flangeless


Thread
Size
Depth
H
Spanner Size
SW
Material Article No. Selection
M 12 x 1.5 5.5 17 PA   EPN 355 / M 12 PA-GF
M 16 x 1.5 5.5 22 PA   EPN 355 / M 16 PA-GF
M 20 x 1.5 6.5 24 PA   EPN 355 / M 20 PA-GF
M 25 x 1.5 7.0 32 PA   EPN 355 / M 25 PA-GF
M 32 x 1.5 7.0 41 PA   EPN 355 / M 32 PA-GF
M 40 x 1.5 7.0 50 PA   EPN 355 / M 40 PA-GF
M 50 x 1.5 8.5 60 PA   EPN 355 / M 50 PA-GF
M 63 x 1.5 8.5 75 PA   EPN 355 / M 63 PA-GF
PG 7 5.0 19 PA-GF   EPN 355 / PG 7 PS
PG 9 5.5 22 PA-GF   EPN 355 / PG 9 PS
PG 11 6.0 24 PA-GF   EPN 355 / PG 11 PS
PG 13.5 6.0 27 PA-GF   EPN 355 / PG 13 PS
PG 16 6.5 30 PA-GF   EPN 355 / PG 16 PS
PG 21 7.0 36 PA-GF   EPN 355 / PG 21 PS
PG 29 7.5 46 PA-GF   EPN 355 / PG 29 PS
PG 36 8.0 60 PA-GF   EPN 355 / PG 36 PS
PG 42 8.0 65 PA-GF   EPN 355 / PG 42 PS
PG 48 8.0 70 PA-GF   EPN 355 / PG 48 PS

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
