EPN 255  Nylon Cable Glands with Spiral Flex Protector

This is critical in cases involving flexible cable and leads to hand tools, mobile machine parts and in many other instances in the electrical appliance industry.

The EPN 250 nylon Cable Glands with Spiral Flex Protector offer an improved level of safety against damaged cables and cores and in doing so guarantees lasting operation.

Standard colours: sz = black gr = grey

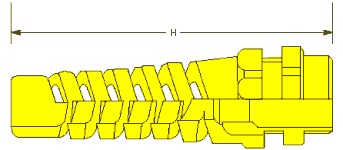

Nylon Cable Glands with Spiral Flex Protector


Thread
Size
Standard
Colour
Clamping
Range
Length of
Thread
Spanner
Size
Length of
flex
H
Article No. Selection
PG 7 gr 3.0 - 6.5 8.0 SW 15 63.0   EPN 255/PG 7 RAL 7001
PG 9 gr 4.0 - 8.0 8.0 SW 19 74.6   EPN 255/PG 9 RAL 7001
PG 11 gr 5.0 - 10.0 8.0 SW 22 86.0   EPN 255/PG 11 RAL 7001
PG 13.5 gr 6.0 - 12.0 9.0 SW 24 98.0   EPN 255/PG 13.5 RAL 7001
PG 16 gr 10.0 - 14.0 10.0 SW 27 111.5   EPN 255/PG 16 RAL 7001
PG 21 gr 13.0 - 18.0 11.0 SW 33 129.0   EPN 255/PG 21 RAL 7001
PG 7 sz 3.0 - 6.5 8.0 SW 15 62.8   EPN 255/PG 7 RAL 9005
PG 9 sz 4.0 - 8.0 8.0 SW 19 74.5   EPN 255/PG 9 RAL 9005
PG 11 sz 5.0 - 10.0 8.0 SW 22 86.0   EPN 255/PG 11 RAL 9005
PG 13.5 sz 6.0 - 12.0 9.0 SW 24 98.0   EPN 255/PG 13.5 RAL 9005
PG 16 sz 10.0 - 14.0 10.0 SW 27 111.5   EPN 255/PG 16 RAL 9005
PG 21 sz 13.0 - 18.0 11.0 SW 33 129.0   EPN 255/PG 21 RAL 9005
M 12x1.5 gr 3.0 - 7.0 8.0 SW 15 62.0   EPN 255/M 12x1.5 RAL 7001
M 16x1.5 gr 5.0 - 10.0 15.0 SW 22 94.0   EPN 255/M 16x1.5 RAL 7001
M 20x1.5 gr 6.0 - 12.0 11.0 SW 24 100.0   EPN 255/M 20x1.5 RAL 7001
M 20x1.5 gr 10.0 - 14.0 11.0 SW 27 112.0   EPN 255/M 20x1.5 RAL 7001
M 25x1.5 gr 10.0 - 18.0 11.0 SW 27 112.0   EPN 255/M 25x1.5 RAL 7001
M 12x1.5 sz 3.0 - 7.0 8.0 SW 15 63.0   EPN 255/M 12x1.5 RAL 9005
M 16x1.5 sz 5.0 - 10.0 15.0 SW 22 94.0   EPN 255/M 16x1.5 RAL 9005
M 20x1.5 sz 6.0 - 12.0 9.0 SW 24 98.0   EPN 255/M 20x1.5 RAL 9005
M 20x1.5 sz 10.0 - 14.0 11.0 SW 27 112.0   EPN 255/M 20x1.5 RAL 9005
M 25x1.5 sz 10.0 - 18.0 15.0 SW 33 131.5   EPN 255/M 25x1.5 RAL 9005

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
