EPN 250  Nylon Cable Glands

Our EPN 250 Nylon Cable Glands provide you with both the highest degree of functionality and safety:

Sealing Nut Designed for a perfect grip and effortless spanner tight seal.
Vibration Proof    Built-in vibration protection system to eliminate loss of torque.
Neoprene Seal For a perfect, watertight seal IP 68 - 5 bar.
Blade System For optimal strain relief and cable protection combined with a generous clamping range
Multiple Threads   For secure and rapid assembly



Material   :   Strong Nylon 6
Standard Colour   :   black, white, red, light grey, dark grey

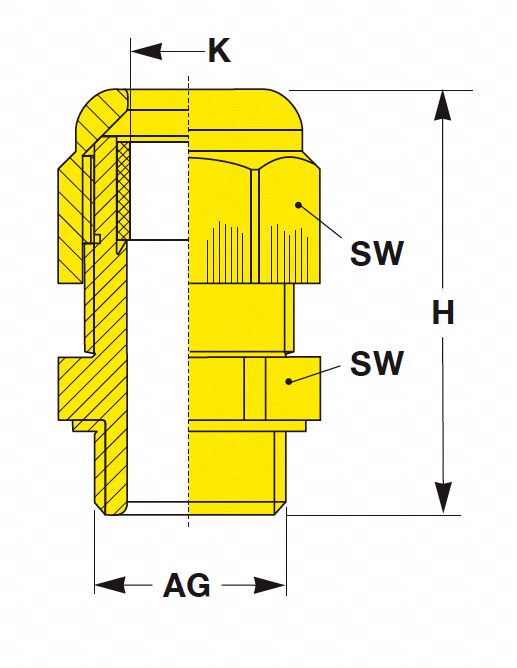

Nylon Cable Glands


Type Model Thread
Size
Clamping-
Range
Length
of Thread
Spanner
Size
Article No. Selection
A standard M 12 x 1.5 3.0 - 6.5 SW 15 8.0   EPN250/ M 12 N
A standard M 16 x 1.5 4.5 - 10.0 SW 19 8.0   EPN250/ M 16 N
A standard M 20 x 1.5 6.0 - 12.0 SW 24 9.0   EPN250/ M 20 N
A standard M 25 x 1.5 9.0 - 17.0 SW 30 10.0   EPN250/ M 25 N
A standard M 32 x 1.5 11.0 - 21.0 SW 36 10.0   EPN250/ M 32 N
A standard M 40 x 1.5 19.0 - 28.0 SW 46 10.0   EPN250/ M 40 N
A standard M 50 x 1.5 27.0 - 35.0 SW 55 12.0   EPN250/ M 50 N
A standard M 63 x 1.5 34.0 - 45.0 SW 66 12.0   EPN250/ M 63 N
A long thread M 12 x 1.5 3.0 - 6.5 SW 15 15.0   EPN250/ M 12 LN
A long thread M 16 x 1.5 4.5 - 10.0 SW 19 15.0   EPN250/ M 16 LN
A long thread M 20 x 1.5 6.0 - 12.0 SW 24 15.0   EPN250/ M 20 LN
A long thread M 25 x 1.5 9.0 - 17.0 SW 30 15.0   EPN250/ M 25 LN
A long thread M 32 x 1.5 11.0 - 21.0 SW 36 15.0   EPN250/ M 32 LN
A long thread M 40 x 1.5 19.0 - 28.0 SW 46 18.0   EPN250/ M 40 LN
A long thread M 50 x 1.5 27.0 - 35.0 SW 55 18.0   EPN250/ M 50 LN
A long thread M 63 x 1.5 34.0 - 45.0 SW 66 18.0   EPN250/ M 63 LN
A reduced M 12 x 1.5 2.0 - 5.0 SW 15 8.0   EPN250/ M 12 RN
A reduced M 16 x 1.5 2.0 - 7.0 SW 19 8.0   EPN250/ M 16 RN
A reduced M 20 x 1.5 5.0 - 9.0 SW 24 9.0   EPN250/ M 20 RN
A reduced M 25 x 1.5 6.0 - 13.0 SW 30 10.0   EPN250/ M 25 RN
A reduced M 32 x 1.5 7.0 - 15.0 SW 36 10.0   EPN250/ M 32 RN
A reduced M 40 x 1.5 15.0 - 23.0 SW 46 10.0   EPN250/ M 40 RN
A reduced M 50 x 1.5 22.0 - 29.0 SW 55 12.0   EPN250/ M 50 RN
A reduced M 63 x 1.5 28.0 - 39.0 SW 66 12.0   EPN250/ M 63 RN
A reduced. long thread M 12 x 1.5 2.0 - 5.0 SW 15 15.0   EPN250/ M 12 LRN
A reduced. long thread M 16 x 1.5 2.0 - 7.0 SW 19 15.0   EPN250/ M 16 LRN
A reduced. long thread M 20 x 1.5 5.0 - 9.0 SW 24 15.0   EPN250/ M 20 LRN
A reduced. long thread M 25 x 1.5 6.0 - 13.0 SW 30 15.0   EPN250/ M 25 LRN
A reduced. long thread M 32 x 1.5 7.0 - 15.0 SW 36 15.0   EPN250/ M 32 LRN
A reduced. long thread M 40 x 1.5 15.0 - 23.0 SW 46 18.0   EPN250/ M 40 LRN
A reduced. long thread M 50 x 1.5 22.0 - 29.0 SW 55 18.0   EPN250/ M 50 LRN
A reduced. long thread M 63 x 1.5 28.0 - 39.0 SW 66 18.0   EPN250/ M 63 LRN
B expanded M 16 x 1.5 4.0 - 8.0 SW 19 8.0   EPN250/ M 16
B expanded M 20 x 1.5 10.0 - 14.0 SW 27 10.2   EPN250/ M 20
B expanded M 25 x 1.5 10.0 - 14.0 SW 27 11.0   EPN 250/M 25
B expanded M 32 x 1.5 18.0 - 25.0 SW 42 12.0   EPN250/ M 32
B expanded M 40 x 1.5 22.0 - 32.0 SW 53 13.0   EPN250/ M 40
B expanded M 50 x 1.5 30.0 - 38.0 SW 60 13.0   EPN250/ M 50
B expanded. long thread M 20 x 1.5 10.0 - 14.0 SW 27 15.0   EPN250/ M 20 L
B expanded. long thread M 25 x 1.5 13.0 - 18.0 SW 33 15.0   EPN 250/M 25 L
B expanded. long thread M 32 x 1.5 18.0 - 25.0 SW 42 15.0   EPN250/ M 32 L
B expanded. long thread M 40 x 1.5 22.0 - 32.0 SW 53 18.0   EPN250/ M 40 L
B expanded. long thread M 50 x 1.5 30.0 - 38.0 SW 60 18.0   EPN250/ M 50 L
B reduced M 16 x 1.5 2.0 - 6.0 SW 19 8.0   EPN250/ M 16 R
B reduced M 20 x 1.5 7.0 - 12.0 SW 27 11.0   EPN250/ M 20 R
B reduced M 25 x 1.5 7.0 - 12.0 SW 27 11.0   EPN250/ M 25 R
B reduced M 32 x 1.5 12.0 - 20.0 SW 42 10.0   EPN250/ M 32 R
B reduced M 40 x 1.5 20.0 - 26.0 SW 53 13.0   EPN250/ M 40 R
B reduced M 50 x 1.5 25.0 - 31.0 SW 60 13.0   EPN250/ M 50 R
B reduced. long thread M 20 x 1.5 7.0 - 12.0 SW 27 15.0   EPN250/ M 20 LR
B reduced. long thread M 25 x 1.5 9.0 - 16.0 SW 33 15.0   EPN250/ M 25 LR
B reduced. long thread M 32 x 1.5 12.0 - 20.0 SW 42 15.0   EPN250/ M 32 LR
B reduced. long thread M 40 x 1.5 20.0 - 26.0 SW 53 18.0   EPN250/ M 40 LR
B reduced. long thread M 50 x 1.5 25.0 - 31.0 SW 60 18.0   EPN250/ M 50 LR
B standard PG 7 3.0 - 6.5 SW 15 8.0   EPN250/ PG 7
B standard PG 9 4.0 - 8.0 SW 19 8.0   EPN250/ PG 9
B standard PG 11 4.5 - 10.0 SW 22 8.0   EPN250/ PG 11
B standard PG 13.5 6.0 - 12.0 SW 24 9.0   EPN250/ PG 13
B standard PG 16 10.0 - 14.0 SW 27 10.2   EPN250/ PG 16
B standard PG 21 13.0 - 18.0 SW 33 11.0   EPN250/ PG 21
B standard PG 29 18.0 - 25.0 SW 42 11.0   EPN250/ PG 29
B standard PG 36 22.0 - 32.0 SW 53 13.0   EPN250/ PG 36
B standard PG 42 30.0 - 38.0 SW 60 13.0   EPN250/ PG 42
B standard PG 48 34.0 - 44.0 SW 65 14.0   EPN250/ PG 48
B reduced PG 7 2.0 - 5.0 SW 15 8.0   EPN250/ PG 7 R
B reduced PG 9 2.0 - 6.0 SW 19 8.0   EPN250/ PG 9 R
B reduced PG 11 3.0 - 7.0 SW 22 8.0   EPN250/ PG 11 R
B reduced PG 13.5 5.0 - 9.0 SW 24 9.0   EPN250/ PG 13 R
B reduced PG 16 7.0 - 12.0 SW 27 11.0   EPN250/ PG 16 R
B reduced PG 21 9.0 - 16.0 SW 33 11.0   EPN250/ PG 21 R
B reduced PG 29 12.0 - 20.0 SW 42 13.0   EPN250/ PG 29 R
B reduced PG 36 20.0 - 26.0 SW 53 13.0   EPN250/ PG 36 R

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
