EP 283  Tapered plugs with pull ring tab

Easy removal due to ring tab.

Protects threads, pipes, hoses and bores.

No loss of construction space due to flat-type ring tab.

Tapered body design of the plug accommodates larger tolerances.

Can also be used as a cap.

Standard Colour: yellow

Material: LLD-PE, linear low density polyethylene


Tapered plugs with pull ring tab

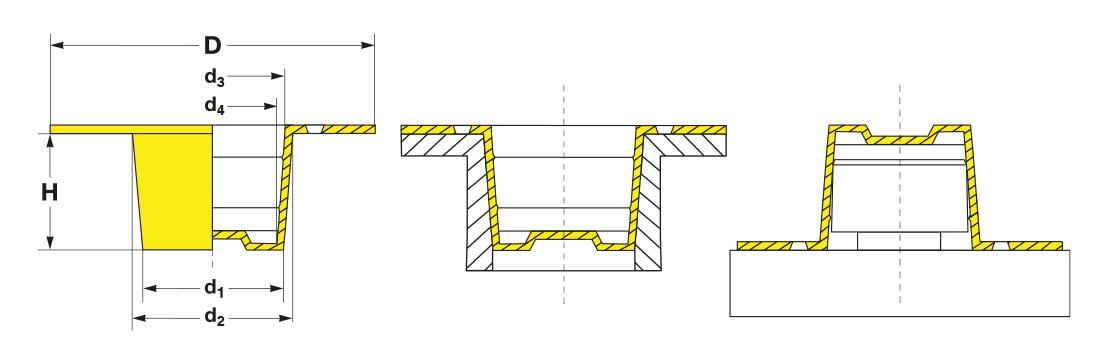

d1 d2 d3 d4 D H Article No. Selection
5.0 7.0 6.0 3.5 17.4 9.5   EP 283 RL 050
6.0 8.0 7.0 4.5 18.2 9.5   EP 283 RL 060
7.0 9.5 8.7 5.5 20.4 9.5   EP 283 RL 070
8.0 10.0 9.0 6.5 20.2 9.5   EP 283 RL 080
9.5 11.5 10.5 8.1 22.0 9.5   EP 283 RL 095
10.5 12.5 11.5 9.2 22.7 9.5   EP 283 RL 105
11.5 13.5 12.5 10.2 23.8 9.5   EP 283 RL 115
12.5 14.5 13.5 11.2 24.4 10.0   EP 283 RL 125
13.5 15.5 14.6 12.2 25.7 10.0   EP 283 RL 135
14.2 16.2 15.2 12.8 26.5 10.0   EP 283 RL 142
14.5 17.0 16.1 13.1 27.1 10.0   EP 283 RL 145
15.5 18.0 17.5 14.8 28.2 10.0   EP 283 RL 155
17.5 19.5 18.5 16.1 30.2 10.0   EP 283 RL 175
18.0 20.0 18.6 16.1 30.3 10.0   EP 283 RL 180
19.0 21.5 20.5 17.6 32.2 11.0   EP 283 RL 190
21.0 23.5 22.6 19.7 34.6 12.0   EP 283 RL 210
22.5 25.5 25.0 21.4 36.0 12.0   EP 283 RL 225
25.0 28.0 27.2 24.3 38.2 12.0   EP 283 RL 250
29.0 31.5 29.2 26.8 42.0 12.0   EP 283 RL 290
29.5 31.8 29.2 26.8 42.6 12.0   EP 283 RL 295

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
