EP 265  Banjo union caps

Banjo union caps provide external protection to banjo bolts.

These caps provide a quick application and removal. Banjo Swivel Joints provide 360° rotation in a single plane without leakage.

The units establish mechanical flexibility into high pressure and temperature systems such as fuel pressure systems, turbo charging, air-conditioning and brake installations.

Banjo union caps are typically used in hydraulic, pneumatic and automotive industries.

Fit hydraulic banjo unions to DIN 7642 B/E

Standard Colour: yellow

Material: LLD-PE, linear low density polyethylene


Banjo union caps

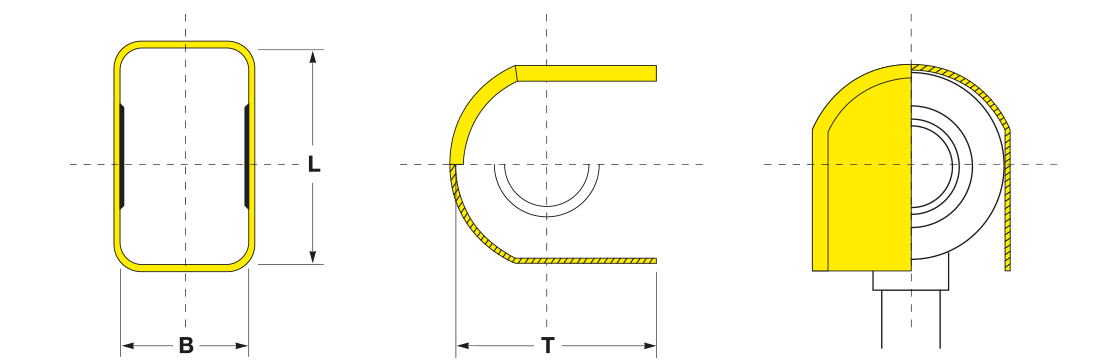

Pipe Diameter L B T Article No. Selection
4.0 14.0 7.8 17.0   EP 265 / BE 4
5.0 14.0 7.8 17.0   EP 265 / BE 5
6.0 17.0 9.8 19.6   EP 265 / BE 6
8.0 20.0 11.6 23.5   EP 265 / BE 8
10.0 24.0 13.8 27.6   EP 265 / BE 10
12.0 28.0 15.8 31.2   EP 265 / BE 12
15.0 32.2 19.6 35.3   EP 265 / BE 15
18.0 40.0 24.8 43.0   EP 265 / BE 18

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
