EP 211  Flexible pull tab caps

Handy handle ensures quick and easy assembly and disassembly.

Flexible material guarantees a perfect fit and effective protection.

Short time heat-resistant up to 150 ° C.

Additional dimensions are available upon request.


Flexible pull tab caps

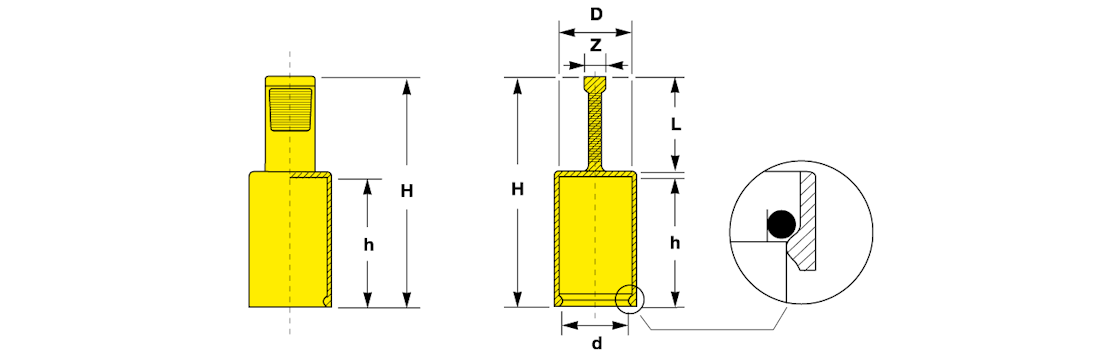

d D h H L Z Article No. Selection
4.0 4.0 5.0 20.0 37.0 15.1 3.2   EP 211 ZL 4 x 20
5.0 4.8 6.0 20.0 37.0 15.1 3.2   EP 211 ZL 5 x 20
6.0 5.9 7.5 20.0 37.0 15.1 3.2   EP 211 ZL 6 x 20
8.0 7.7 9.0 20.0 37.0 15.1 3.2   EP 211 ZL 8 x 20
9.0 8.9 10.5 20.0 37.0 15.1 3.3   EP 211 ZL 9 x 20
10.0 9.7 10.5 20.0 36.3 15.1 3.2   EP 211 ZL 10 x 20
11.0 10.7 12.5 20.0 37.0 15.1 3.0   EP 211 ZL 11 x 20
12.0 11.7 12.5 20.0 37.0 15.1 3.2   EP 211 ZL 12 x 20
13.0 12.7 15.0 20.0 36.5 15.0 3.3   EP 211 ZL 13 x 20
14.0 13.8 14.5 20.0 36.5 15.0 3.3   EP 211 ZL 14 x 20
15.0 14.8 17.0 20.0 37.0 15.0 3.3   EP 211 ZL 15 x 20
16.0 15.8 18.0 20.0 37.0 15.0 3.3   EP 211 ZL 16 x 20
18.0 17.7 20.0 20.0 36.7 15.0 3.3   EP 211 ZL 18 x 20
20.0 19.8 22.0 20.0 37.0 15.0 3.3   EP 211 ZL 20 x 20
20.0 19.8 22.0 30.0 47.0 15.0 3.3   EP 211 ZL 20 x 30
23.7 21.8 24.0 19.8 36.4 15.0 3.3   EP 211 ZL 24 x 20

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
