EP 303  Valve Flange Face Protection Plugs

Provides cushioned protection for flange face. Suitable for DIN 2631-2635 flanges.


Stuff : LD-PE, low density polyethylene

Color : yellow

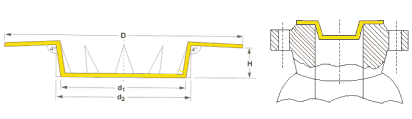

Valve Flange Face Protection Plugs


Pipe DN Flange Pressure Group d1 d2 D H Article No. Selection
33.7 x 2.6 DN 25 PN 6. 10. 16. 25. 40 20.2 30.5 68.7 15.0   EP 303 / DN 25 - R
42.4 x 2.6 DN 32 PN 6. 10. 16. 25. 40 26.8 38.7 78.0 14.6   EP 303 / DN 32 - R
48.3 x 2.6 DN 40 PN 6. 10. 16. 25. 40 35.3 44.8 88.0 15.0   EP 303 / DN 40 - R
60.3 x 2.9 DN 50 PN 6. 10. 16. 25. 40 45.5 57.7 102.0 15.0   EP 303 / DN 50 - R

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
