EP 185  Pressure pipe protection uniplugs

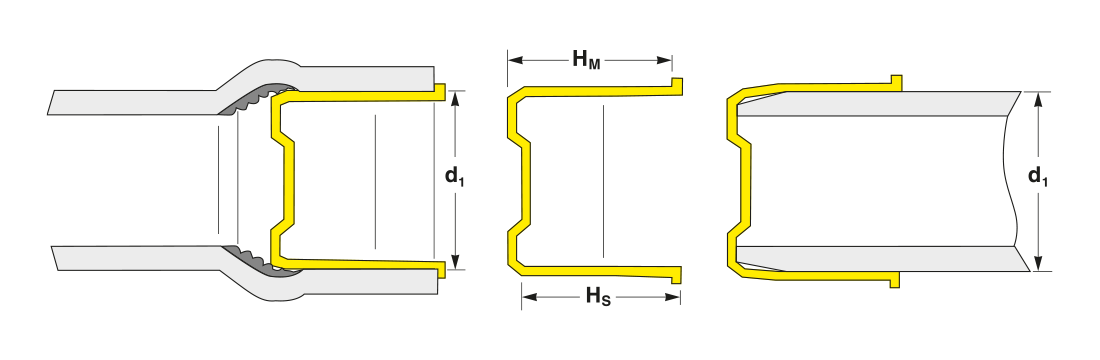

This specially designed vented uniplug offers protection for both the socket and spigot ends of PVC pressure pipes and are equally adaptable for use on PE pipes.

Retention rips offer added security during transit.

The perforated handgrip allows easy removal.

Available from DN 350 to DN 600.

Stuff : LD-PE, low density polyethylene

Color : natural



Pressure pipe protection uniplugs


Socket Spigot HM HS Colour Article No. Selection
DN 350 375.0 80.0 80.0 RAL 5012   EP 185/DN 350/375
DN 400 425.0 100.0 100.0 RAL 5012   EP 185/DN 400/425
DN 450 475.0 100.0 100.0 RAL 5012   EP 185/DN 450/475
DN 500 528.0 105.0 105.0 RAL 5012   EP 185/DN 500/528
DN 600 631.0 110.0 110.0 RAL 5012   EP 185/DN 600/631

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
