EP 810 Typ 1  Bolt and Nut Anti-Corrosion Snap Caps

Durable snap-on installation
With anti-vibration locking lip
175 Designs and Sizes

Designed to fit bolts, bolt ends, nuts and screws and developed to provide almost total protection against corrosion, humidity and operational damage.


Stuff : LD-PE, low density polyethylene

Color : black



Bolt and Nut Anti-Corrosion Snap Caps

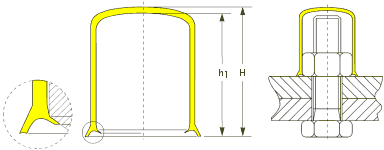

SW Typ h1 H S M1 M2 M3 DIN 11 UNC Article No. Selection
SW 10 -1- 15.9 17.2 - M 6   EP 810 / SW 10 - M 6 -1-G 16
SW 10 -1- 33.6 34.7 - M 6   EP 810 / SW 10 - M 6 -1- G 34
SW 13 -1- 18.0 19.1 - M 8 .1/4"   EP 810 / SW 13 - M 8 -1- G 18
SW 13 -1- 27.0 28.6 - M 8 .1/4"   EP 810 / SW 13 - M 8 -1- G 27
SW 17 -1- 31.2 33.2 - M 10 M 10x1 .3/8"   EP 810 / SW 17 - M 10 -1- G 29
SW 17 -1- 44.2 46.0 - M 10 M 10x1 .3/8"   EP 810 / SW 17 - M 10 -1- G 45
SW 19 -1- 29.0 31.0 - M 12 M 12x1.5 .7/16"   EP 810 / SW 19 - M 12 -1- G 29
SW 19 -1- 50.0 52.0 - M 12 M 12x1.5 .7/16"   EP 810 / SW 19 - M 12 -1- G 50
SW 24 -1- 34.2 36.3 - M 16 M 16x1.5 .9/16"   EP 810 / SW 24 - M 16 -1- G 31
SW 24 -1- 50.5 52.0 - M 16 M 16x1.5 .9/16"   EP 810 / SW 24 - M 16 -1- G 51
SW 30 -1- 33.5 36.0 - M 20 M 20x2 M 20x1.5   EP 810 / SW 30 - M 20 -1- G 34
SW 30 -1- 116.0 118.0 - M 20 M 20x2 M 20x1.5   EP 810 / SW 30 - M 20 -1- G 120
SW 36 -1- 41.8 45.0 - M 24 M 24x2 M 24x1.5 .7/8"   EP 810 / SW 36 - M 24 -1- G 43
SW 36 -1- 72.6 75.0 - M 24 M 24x2 M 24x1.5 .7/8"   EP 810 / SW 36 - M 24 -1- G 73
SW 41 -1- 50.1 54.0 - M 27 M 27x2 M 27x1.5 1."   EP 810 / SW 41 - M 27 -1- G 46
SW 41 -1- 73.8 78.0 - M 27 M 27x2 M 27x1.5 1."   EP 810 / SW 41 - M 27 -1- G 76
SW 46 -1- 148.0 151.0 - M 30 M 30x2 M 30x1.5 1.1/8"   EP 810 / SW 46 - M 30 -1- G 144
SW 46 -1- 50.7 53.0 - M 30 M 30x2 M 30x1.5 1.1/8"   EP 810 / SW 46 - M 30 -1- G 49
SW 50 -1- 56.0 58.0 - M 33 M 33x2 M 33x1.5 1.1/4"   EP 810 / SW 50 - M 33 -1- G 51
SW 50 -1- 85.5 88.0 - M 33 M 33x2 M 33x1.5 1.1/4"   EP 810 / SW 50 - M 33 -1- G 81
SW 55 -1- 56.8 60.0 - M 36 M 36x3 M 36x1.5 1.3/8"   EP 810 / SW 55 - M 36 -1- G 55
SW 55 -1- 164.5 167.5 - M 36 M 36x3 M 36x1.5 1.3/8"   EP 810 / SW 55 - M 36 -1- G 155
SW 60 -1- 58.1 60.5 - M 39 M 39x3 M 39x1.5 1.1/2"   EP 810 / SW 60 - M 39 -1- G 57
SW 60 -1- 109.4 113.0 - M 39 M 39x3 M 39x1.5 1.1/2"   EP 810 / SW 60 - M 39 -1- G 107
SW 65 -1- 61.5 64.0 - M 42 M 42x3 M 42x1.5 1.5/8"   EP 810 / SW 65 - M 42 -1- G 61
SW 65 -1- 123.0 126.0 - M 42 M 42x3 M 42x1.5 1.5/8"   EP 810 / SW 65 - M 42 -1- G 123
SW 70 -1- 113.5 118.0 - M 45 1.3/4"   EP 810 / SW 70 - M 45 -1- G 113
SW 70 -1- 62.0 65.0 - M 45 1.3/4"   EP 810 / SW 70 - M 45 -1- G 63
SW 75 -1- 63.0 70.0 - M 48 1.7/8"   EP 810 / SW 75 - M 48 -1- G 66
SW 75 -1- 95.0 97.0 - M 48 1.7/8"   EP 810 / SW 75 - M 48 -1- G 96
SW 80 -1- 130.0 133.0 - M 52 2."   EP 810 / SW 80 - M 52 -1- G 130
SW 80 -1- 71.0 77.0 - M 52 2."   EP 810 / SW 80 - M 52 -1- G 70
SW 85 -1- 74.0 76.5 - M 56   EP 810 / SW 85 - M 56 -1- G 74
SW 85 -1- 133.6 138.0 - M 56   EP 810 / SW 85 - M 56 -1- G 134
SW 90 -1- 140.0 145.0 - M 60 2.1/4"   EP 810 / SW 90 - M 60 -1- G 140
SW 90 -1- 85.5 88.0 - M 60 2.1/4"   EP 810 / SW 90 - M 60 -1- G 78
SW 95 -1- 88.0 91.5 - M 64   EP 810 / SW 95 - M 64 -1- G 86
SW 95 -1- 143.0 148.0 - M 64   EP 810 / SW 95 - M 64 -1- G 143
SW 100 -1- 89.8 94.0 - M 68   EP 810 / SW 100 - M 68 -1- G 90
SW 100 -1- 153.5 157.5 - M 68   EP 810 / SW 100 - M 68 -1- G 150
SW 105 -1- 92.7 98.0 - M 72   EP 810 / SW 105 - M 72 -1- G 90
SW 105 -1- 149.1 154.0 - M 72   EP 810 / SW 105 - M 72 -1- G 150
SW 107 -1- 95.0 102.5 - M 76 2. 3/4"   EP 810 / SW 107 - M 76 -1- G 95
SW 115 -1- 97.0 106.0 - M 80   EP 810 / SW 115 - M 80 -1- G 97
SW 115 -1- 180.2 187.0 - M 80   EP 810 / SW 115 - M 80 -1- G 180
SW 117 -1- 100.0 108.0 - M 85 3."   EP 810 / SW 117 - M 85 -1- G 100
SW 130 -1- 108.5 115.0 - M 90 3.1/4"   EP 810 / SW 130 - M 90 -1- G 100

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
