EP 210  Flexible Pull Tab Caps

These Push-Fit Caps provide good tensile strength, toughness and increased flexibility between +1 mm and +2.5 mm in diameter.

They can be used to cap threaded and non-threaded applications and are ideal for use on hydraulic hoses or pipe ends fitted with pressure-sensitive external O-rings.

The internal lip ensures a firm and clean fit and prevents ingress of dirt and contaminants.

Large Pull-Tab allows easy removal.

Material   :   EVA
Standard Colour   :   yellow


Flexible Pull Tab Caps


to fit external
diameters

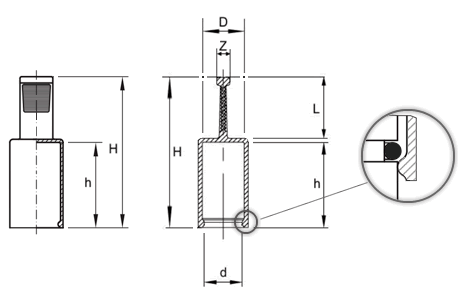

d D h H L Z Article No. Selection
4.0 4.0 5.0 20.0 37.0 15.1 3.2   EP 210 ZL 4 x 20
5.0 4.8 6.0 20.0 37.0 15.1 3.2   EP 210 ZL 5 x 20
6.0 5.9 7.5 20.0 37.0 15.1 3.2   EP 210 ZL 6 x 20
8.0 7.7 9.0 20.0 37.0 15.1 3.2   EP 210 ZL 8 x 20
9.0 8.9 10.5 20.0 37.0 15.1 3.3   EP 210 ZL 9 x 20
10.0 9.7 10.5 20.0 36.3 15.1 3.2   EP 210 ZL 10 x 20
11.0 10.7 12.5 20.0 37.0 15.1 3.0   EP 210 ZL 11 x 20
12.0 11.7 12.5 20.0 37.0 15.1 3.2   EP 210 ZL 12 x 20
13.0 12.7 15.0 20.0 36.5 15.0 3.3   EP 210 ZL 13 x 20
14.0 13.8 14.5 20.0 36.5 15.0 3.3   EP 210 ZL 14 x 20
15.0 14.8 17.0 20.0 37.0 15.0 3.3   EP 210 ZL 15 x 20
16.0 15.8 18.0 20.0 37.0 15.0 3.3   EP 210 ZL 16 x 20
18.0 17.7 20.0 20.0 36.7 15.0 3.3   EP 210 ZL 18 x 20
20.0 19.8 22.0 20.0 37.0 15.0 3.3   EP 210 ZL 20 x 20
20.0 19.8 22.0 30.0 47.0 15.0 3.3   EP 210 ZL 20 x 30
24.0 23.7 24.0 20.0 36.4 15.0 3.3   EP 210 ZL 24 x 20

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
