EP 436  Threaded Sealing Plugs with drain head design

Designed to protect unified / straight threaded ports. Each plug features an integral tight fit sealing lip along with five complete threads. Exist in a wide range of thread types. Head designed to drain liquids. Large flange design.


Stuff : Nylon (PA 6)

Color : yellow, natural



Threaded Sealing Plugs with drain head design

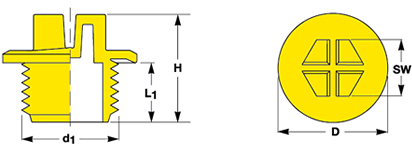

d1 D L1 H SW Colour Article No. Selection
DIN 3852-1 M 10 x 1 15.4 8.0 15.0 7 yellow   EP 436 - M 10 x 1
DIN 3852-1 M 12 x 1.5 18.5 9.0 16.0 10 yellow   EP 436 - M 12 x 1.5
DIN 3852-1 M 14 x 1.5 20.3 9.0 17.0 10 yellow   EP 436 - M 14 x 1.5
DIN 3852-1 M 16 x 1.5 23.6 10.0 20.0 13 yellow   EP 436 - M 16 x 1.5
DIN 3852-1 M 18 x 1.5 25.5 11.0 21.0 13 yellow   EP 436 - M 18 x 1.5
DIN 3852-1 M 22 x 1.5 28.4 11.8 21.7 15 yellow   EP 436 - M 22 x 1.5
DIN 3852-1 M 27 x 2 33.4 15.0 25.0 19 yellow   EP 436 - M 27 x 2
DIN 3852-1 M 30 x 2 35.9 10.0 20.0 24 yellow   EP 436 - M 30 x 2
DIN 3852-1 M 33 x 2 42.5 15.0 25.0 24 yellow   EP 436 - M 33 x 2
DIN 3852-1 M 36 x 2 44.1 10.0 20.0 24 yellow   EP 436 - M 36 x 2
DIN 3852-1 M 42 x 2 51.3 15.0 26.0 24 yellow   EP 436 - M 42 x 2
DIN 3852-1 M 45 x 2 55.3 15.0 26.0 30 yellow   EP 436 - M 45 x 2
DIN 3852-1 M 48 x 2 56.7 17.0 28.0 30 yellow   EP 436 - M 48 x 2
DIN 3852-1 M 52 x 2 60.5 17.0 28.0 30 yellow   EP 436 - M 52 x 2
ISO 11926 .7/16" - 20 UNF 17.4 9.0 16.0 10 yellow   EP 436 - .7/16" - 20 UNF
ISO 11926 .9/16" - 18 UNF 21.4 10.0 18.0 10 yellow   EP 436 - .9/16" - 18 UNF
ISO 11926 .3/ 4" - 16 UNF 27.3 11.0 21.0 13 yellow   EP 436 - .3/ 4" - 16 UNF
ISO 11926 .7/ 8" - 14 UNF 30.5 13.0 23.0 15 yellow   EP 436 - .7/ 8" - 14 UNF
ISO 11926 1.1/16" - 12 UN 38.2 15.0 25.0 19 yellow   EP 436 - 1.1/16" - 12 UN
ISO 11926 1.5/16" - 12 UN 44.8 15.0 25.0 24 yellow   EP 436 - 1.5/16" - 12 UN
ISO 11926 1.5/ 8" - 12 UN 56.0 15.0 26.0 30 yellow   EP 436 - 1.5/ 8" - 12 UN
ISO 11926 1.7/ 8" - 12 UN 63.7 15.0 26.0 30 yellow   EP 436 - 1.7/ 8" - 12 UN

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
