EP 385  Push-Fit Side Release Plug with 2 strong Fins

Push fit. With continuous sealing lip and strong flexible side-tab for quick removal. Fit threaded or plain ports. Low-abrasion fit.


Stuff : LD-PE, low density polyethylene

Color : red, RAL 3000



Push-Fit Side Release Plug with 2 strong Fins

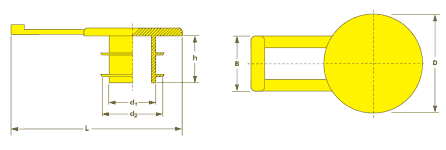

Metric Thread d1 d2 D h L B Article No. Selection
M 10 x 1 6.4 9.5 16.0 8.0 31.5 12.0   EP 385 / M 10 x 1
M 12 x 1.5 7.9 11.1 19.0 8.0 34.5 12.0   EP 385 / M 12 x 1.5
M 14 x 1.5 9.9 13.1 20.0 10.0 35.5 12.0   EP 385 / M 14 x 1.5
M 16 x 1.5 11.9 15.1 24.0 11.0 40.5 14.0   EP 385 / M 16 x 1.5
M 22 x 1.5 17.4 21.5 29.0 11.5 45.5 14.0   EP 385 / M 22 x 1.5

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
