EP 500  Threaded Caps - Flanged

These Threaded End Caps effectively protect external threads on pipes and fittings. They are produced in hard polyethylene and designed with an easy to grip head for ease of hand installation.

Internal neoprene rubber sealing disk to limit fluid leakage

For particularly high demands on tightness, we recommend a factory-made fitting of an internal neoprene rubber sealing disk. We shall be pleased to advise you on your own specific application.

These Threaded End Caps are recommended to cover thread sizes and styles for both the high pressure and the low pressure sides of metric, Whitworth and UNF thread types.

Material   :   LD-PE, low density polyethylene
Standard Colour   :   yellow


Threaded Caps - Flanged

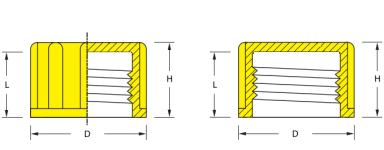

D L H Article No. Selection
DIN 259 ISO 228 G .1/4" 18.0 12.0 13.5   EP 500 - G .1/4"
DIN 259 ISO 228 G .3/8" 21.0 12.0 13.5   EP 500 - G .3/8"
DIN 259 ISO 228 G .1/2" 25.4 14.0 15.5   EP 500 - G .1/2"
DIN 259 ISO 228 G .5/8" 28.0 14.0 15.5   EP 500 - G .5/8"
DIN 259 ISO 228 G .3/4" 32.0 14.0 16.0   EP 500 - G .3/4"
DIN 259 ISO 228 G 1." 39.5 14.0 16.0   EP 500 - G 1."
DIN 259 ISO 228 G 1.1/4" 47.7 17.7 19.7   EP 500 - G 1.1/4"
DIN 259 ISO 228 G 1.1/2" 56.0 17.0 19.0   EP 500 - G 1.1/2"
DIN 259 ISO 228 G 2." 67.0 18.0 20.0   EP 500 - G 2."
DIN 13 / Metr. M 10 x 1 14.0 8.0 9.0   EP 500 - M 10 x 1
DIN 13 / Metr. M 12 x 1.5 16.0 12.0 13.5   EP 500 - M 12 x 1.5
DIN 13 / Metr. M 14 x 1.5 18.0 12.0 13.5   EP 500 - M 14 x 1.5
DIN 13 / Metr. M 16 x 1.5 21.0 11.7 13.1   EP 500 - M 16 x 1.5
DIN 13 / Metr. M 18 x 1.5 22.0 12.0 13.5   EP 500 - M 18 x 1.5
DIN 13 / Metr. M 20 x 1.5 25.0 14.0 15.5   EP 500 - M 20 x 1.5
DIN 13 / Metr. M 22 x 1.5 28.0 14.0 15.5   EP 500 - M 22 x 1.5
DIN 13 / Metr. M 24 x 1.5 30.0 14.0 15.5   EP 500 - M 24 x 1.5
DIN 13 / Metr. M 26 x 1.5 34.0 11.0 13.0   EP 500 - M 26 x 1.5
DIN 13 / Metr. M 30 x 2 38.0 14.0 16.0   EP 500 - M 30 x 2
DIN 13 / Metr. M 36 x 2 44.0 17.3 19.0   EP 500 - M 36 x 2
DIN 13 / Metr. M 42 x 2 50.0 15.0 17.0   EP 500 - M 42 x 2
DIN 13 / Metr. M 45 x 2 53.0 14.4 16.5   EP 500 - M 45 x 2
DIN 13 / Metr. M 52 x 2 60.0 15.0 17.0   EP 500 - M 52 x 2
ISO 11926-1 . 7/16" -20 UNF 15.0 12.0 13.5   EP 500 - . 7/16"- 20 UNF
ISO 11926-1 . 1/ 2" -20 UNF 18.0 15.0 16.5   EP 500 - . 1/ 2"- 20 UNF
ISO 11926-1 . 9/16" -18 UNF 18.0 12.0 13.5   EP 500 - . 9/16"- 18 UNF
ISO 11926-1 . 5/ 8" -18 UNF 19.3 14.2 15.0   EP 500 - . 5/ 8"- 18 UNF
ISO 11926-1 . 3/ 4" -16 UNF 24.0 18.0 19.5   EP 500 - . 3/ 4"- 16 UNF
ISO 11926-1 . 7/ 8" -14 UNF 27.0 20.0 21.5   EP 500 - . 7/ 8" -14 UNF
ISO 11926-1 1. 1/16"-12 UN 34.0 22.2 24.0   EP 500 - 1. 1/16"-12 UN
ISO 11926-1 1. 5/16"-12 UN 40.0 24.0 26.0   EP 500 - 1. 5/16"-12 UN
ISO 11926-1 1. 5/ 8"-12 UN 50.0 17.0 19.0   EP 500 - 1. 5/ 8"-12 UN
ISO 11926-1 1. 7/ 8"-12 UN 55.0 18.0 20.0   EP 500 - 1. 7/ 8"-12 UN

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
