EP 445  Threaded Sealing Plugs with drain head design

To protect unified/straight threaded ports and fittings according to DIN 3852-1 Metric, ISO 6149-1 BSP, SAE J 1926 UN/UNF.

This plug is engineered with five complete threads to provide a tight fit.
The sealing lip enables each plug to provide a secure seal to a specific torque for each size.

EP 436 plugs can be fitted and removed with a screwdriver, socket wrench, power tool or by hand.

Nylon offers high resistance against hydraulic fluids, acids, base alkalines and solvents.

Material   :   Nylon (PA 6)
Standard Colour   :   yellow


Threaded Sealing Plugs with drain head design

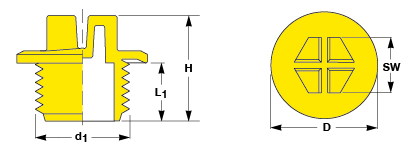

d1 D L1 H SW Colour Article No. Selection
M 10 x 1 14.2 8.0 15.0 7.0 yellow. natural   EP 445 - M 10 x 1
M 12 x 1.5 17.2 11.0 18.0 10.0 yellow. natural   EP 445 - M 12 x 1.5
M 14 x 1.5 19.3 11.0 19.0 10.0 yellow. natural   EP 445 - M 14 x 1.5
M 16 x 1.5 22.0 11.0 21.0 13.0 yellow. natural   EP 445 - M 16 x 1.5
M 18 x 1.5 24.1 11.0 21.0 13.0 yellow. natural   EP 445 - M 18 x 1.5
M 20 x 1.5 26.0 11.0 21.0 15.0 yellow. natural   EP 445 - M 20 x 1.5
M 22 x 1.5 27.2 11.0 21.0 15.0 yellow. natural   EP 445 - M 22 x 1.5
M 26 x 1.5 32.0 13.5 23.5 19.0 yellow. natural   EP 445 - M 26 x 1.5
M 27 x 2 32.3 11.0 21.0 19.0 yellow. natural   EP 445 - M 27 x 2
M 33 x 2 40.4 13.5 23.5 24.0 yellow. natural   EP 445 - M 33 x 2
M 42 x 2 50.0 13.5 23.5 24.0 yellow. natural   EP 445 - M 42 x 2
M 48 x 2 55.4 13.5 24.5 30.0 yellow. natural   EP 445 - M 48 x 2
M 60 x 2 68.5 13.5 24.5 30.0 yellow. natural   EP 445 - M 60 x 2
G .1/4" 19.4 7.5 15.8 10.0 yellow. natural   EP 445 - G .1/4"
G .3/8" 22.4 7.5 17.5 13.0 yellow. natural   EP 445 - G .3/8"
G .1/2" 27.4 9.5 19.5 15.0 yellow. natural   EP 445 - G .1/2"
G .3/4" 32.4 9.5 19.5 19.0 yellow. natural   EP 445 - G .3/4"
G 1." 40.0 9.5 21.5 24.0 yellow. natural   EP 445 - G 1."
G 1.1/4" 50.4 11.5 22.5 24.0 yellow. natural   EP 445 - G 1.1/4"
G 1.1/2" 55.4 11.5 22.5 30.0 yellow. natural   EP 445 - G 1.1/2"
.9/16" - 18 UNF 17.8 11.0 18.0 10.0 yellow. natural   EP 445 - 9/16" - 18 UNF

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
