EP 440  Threaded Sealing Plugs with assembled O-Ring

EP 436 body design .

For particularly high demands on tightness with additional factory-made fitting of an neoprene rubber sealing O-Ring.

Exist in a wide range of metric, Whitworth and UNF thread types.
Head designed to drain leakage.

Large flange design.

Material   :   Nylon (PA 6)
Standard Colour   :   yellow, natural


Threaded Sealing Plugs with assembled O-Ring

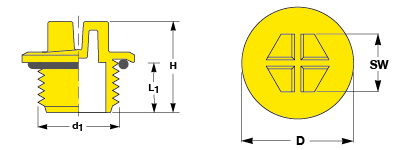

d1 D L1 H SW Colour Article No. Selection
M 10 x 1 15.4 8.0 15.0 7 yellow   EP 440 - M 10 x 1
M 12 x 1.5 18.5 9.0 16.0 10 yellow   EP 440 - M 12 x 1.5
M 14 x 1.5 20.3 9.0 17.0 10 yellow   EP 440 - M 14 x 1.5
M 16 x 1.5 23.6 10.0 20.0 13 yellow   EP 440 - M 16 x 1.5
M 18 x 1.5 25.5 11.0 21.0 13 yellow   EP 440 - M 18 x 1.5
M 22 x 1.5 28.4 11.8 21.7 15 yellow   EP 440 - M 22 x 1.5
M 27 x 2 33.6 15.0 25.0 19 yellow   EP 440 - M 27 x 2
M 30 x 2 35.9 10.0 20.0 24 yellow   EP 440 - M 30 x 2
M 33 x 2 42.5 15.0 25.0 24 yellow   EP 440 - M 33 x 2
M 36 x 2 44.1 15.0 25.0 24 yellow   EP 440 - M 36 x 2
M 42 x 2 51.3 15.0 26.0 24 yellow   EP 440 - M 42 x 2
M 45 x 2 55.3 15.0 26.0 30 yellow   EP 440 - M 45 x 2
M 48 x 2 56.7 17.0 28.0 30 yellow   EP 440 - M 48 x 2
M 52 x 2 60.5 17.0 28.0 30 yellow   EP 440 - M 52 x 2
.7/16" - 20 UNF 17.4 9.0 16.0 10 yellow   EP 440 - .7/16" - 20 UNF
.9/16" - 18 UNF 21.4 10.0 18.0 10 yellow   EP 440 - .9/16" - 18 UNF
.3/ 4" - 16 UNF 27.3 11.0 21.0 13 yellow   EP 440 - .3/ 4" - 16 UNF
.7/ 8" - 14 UNF 30.5 13.0 23.0 15 yellow   EP 440 - .7/ 8" - 14 UNF
1.1/16" - 12 UN 38.2 15.0 25.0 19 yellow   EP 440 - 1.1/16" - 12 UN
1.5/16" - 12 UN 44.8 15.0 25.0 24 yellow   EP 440 - 1.5/16" - 12 UN
1.5/ 8" - 12 UN 56.0 15.0 26.0 30 yellow   EP 440 - 1.5/ 8" - 12 UN
1.7/ 8" - 12 UN 63.7 15.0 26.0 30 yellow   EP 440 - 1.7/ 8" - 12 UN

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
