EP 310  Outside Fitting Flange Protectors

The Original
The most universal Push-In Protectors in the market. Low cost full face flange protection with flexible fins, which ensure a snug fit into bores. Per size - these protectors can be used on a variety of classifications.


Stuff : LD-PE, low density polyethylene

Color : yellow



Outside Fitting Flange Protectors

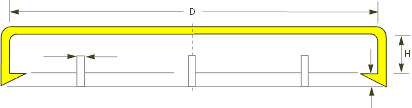

Series Pressure Group D H SP Article No. Selection
DIN DN 15 PN 10. 16. 25. 40 95.0 17.0 4.5 200   EP 310/ 15/10-40
DIN DN 20 PN 10. 16. 25. 40 105.0 19.0 7.5 150   EP 310/ 20/10-40
DIN DN 25 PN 10. 16. 25. 40 115.0 19.0 7.5 150   EP 310/ 25/10-40
DIN DN 32 PN 10. 16. 25. 40 140.0 19.0 7.5 150   EP 310/ 32/10-40
DIN DN 40 PN 10. 16. 25. 40 150.0 19.5 7.5 125   EP 310/ 40/10-40
DIN DN 50 PN 10. 16. 25. 40 165.0 21.0 4.5 100   EP 310/ 50/10-40
DIN DN 65 PN 10. 16. 25. 40 185.0 22.0 4.5 75   EP 310/ 65/10-40
DIN DN 80 PN 10. 16. 25. 40 200.0 24.0 7.5 60   EP 310/ 80/10-40
DIN DN 80 PN 10. 16. 25. 40 200.0 24.0 7.5 60   EP 310/ 80/10-40
DIN DN 100 PN 10. 16 220.0 24.0 7.5 50   EP 310/100/10-16
DIN DN 100 PN 10. 16 220.0 24.0 7.5 50   EP 310/100/10-16
DIN DN 100 PN 25. 40 235.0 24.0 7.5 50   EP 310/100/25-40
DIN DN 125 PN 10. 16 250.0 25.0 7.5 40   EP 310/125/10-16
DIN DN 125 PN 10. 16 250.0 25.0 7.5 40   EP 310/125/10-16
DIN DN 150 PN 10. 16 285.0 25.0 7.5 30   EP 310/150/10-16
DIN DN 150 PN 10. 16 285.0 25.0 7.5 30   EP 310/150/10-16
DIN DN 150 PN 25. 40 300.0 27.0 7.5 30   EP 310/150/25-40
DIN DN 200 PN 10. 16 340.0 27.0 7.5 20   EP 310/200/10-16
DIN DN 200 PN 10. 16 340.0 27.0 7.5 20   EP 310/200/10-16
DIN DN 200 PN 25 360.0 30.0 12.0 20   EP 310/200/25
DIN DN 200 PN 40 375.0 34.0 7.5 20   EP 310/200/40
DIN DN 250 PN 10 395.0 29.0 12.0 20   EP 310/250/10
DIN DN 250 PN 16 406.5 30.0 8.5 20   EP 310/250/16
DIN DN 300 PN 10 445.0 29.0 7.8 25   EP 310/300/10
DIN DN 300 PN 16 460.0 31.0 8.0 20   EP 310/300/16
DIN .1/2" 150 89.0 14.2 4.5 250   EP 310/ .1/2" /150
DIN .1/2" 300 95.0 17.0 4.5 250   EP 310/ .1/2" /300
DIN .1/2" 600 95.0 17.0 4.5 250   EP 310/ .1/2" /600
DIN .3/4" 150 98.5 15.7 4.5 200   EP 310/ .3/4" /150
DIN 1." 150 108.0 17.5 7.5 150   EP 310/ 1." /150
DIN 1." 300 124.0 20.5 4.5 175   EP 310/ 1." /300
DIN 1." 600 124.0 20.5 4.5 150   EP 310/ 1." /600
DIN 1.1/2" 150 127.0 20.5 7.5 175   EP 310/ 1.1/2"/150
DIN 2." 150 152.4 22.1 7.5 100   EP 310/ 2." /150
DIN 2." 300 165.0 21.0 4.5 100   EP 310/ 2." /300
DIN 3." 150 190.5 27.0 7.5 60   EP 310/ 3." /150
DIN 4." 150 228.5 28.0 7.3 40   EP 310/ 4." /150
DIN 6." 150 279.5 29.0 7.5 25   EP 310/ 6." /150
DIN 10." 150 406.5 30.0 12.0 20   EP 310/10." /150

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
