EP 380  Push-Fit Side Release Plug with 1 strong Fin

Push fit. With strong, flexible side-tab for quick removal. Designed to protect DKO-compression fittings. Fin gives a firm fit into threaded or plain ports. Low-abrasion fit.


Stuff : LD-PE, low density polyethylene

Color : blue, RAL 5012



Push-Fit Side Release Plug with 1 strong Fin

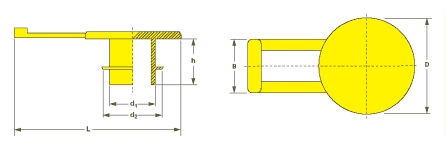

Metric Thread d1 d2 D h L B Article No. Selection
M 12 x 1.5 9.8 11.8 16.0 7.0 26.0 12.0   EP 380 / M 12 x 1.5
M 14 x 1.5 11.2 13.8 19.0 7.0 29.0 12.0   EP 380 / M 14 x 1.5
M 16 x 1.5 14.0 15.8 21.5 7.0 33.75 14.0   EP 380 / M 16 x 1.5
M 18 x 1.5 15.5 17.8 25.0 7.5 37.5 14.0   EP 380 / M 18 x 1.5
M 20 x 1.5 17.5 19.8 27.0 7.5 39.5 14.0   EP 380 / M 20 x 1.5
M 22 x 1.5 19.5 21.8 29.0 7.5 45.5 14.0   EP 380 / M 22 x 1.5
M 24 x 1.5 21.5 23.8 30.0 7.5 46.0 14.0   EP 380 / M 24 x 1.5
M 26 x 1.5 22.8 25.8 32.0 8.0 47.0 14.0   EP 380 / M 26 x 1.5
M 30 x 2 26.5 29.5 35.0 10.0 48.5 14.8   EP 380 / M 30 x 2
M 36 x 2 32.5 35.5 39.6 10.0 54.0 14.0   EP 380 / M 36 x 2
M 42 x 2 38.5 41.5 49.2 10.0 64.0 15.0   EP 380 / M 42 x 2
M 45 x 2 41.5 44.5 50.0 10.0 65.0 15.0   EP 380 / M 45 x 2
M 52 x 2 48.5 51.5 59.0 10.0 74.0 15.0   EP 380 / M 52 x 2

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
