EP 434  Threaded Sealing Plugs, HD-PE, red

Designed to protect unified / straight threaded ports. Each plug features an integral tight fit sealing lip along with five complete threads. Exist in a wide range of metric, Whitworth and UNF thread types.


Stuff : Polyethlene HD-PE

Color : red



Threaded Sealing Plugs, HD-PE, red

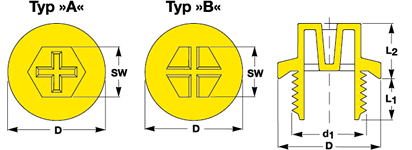

Typ d1 D L1 L2 SW Article No. Selection
DIN ISO 6149-1 A G .1/8" 16.5 7.5 11.2 13   EP 434 - .1/8"
DIN ISO 6149-1 A G .1/4" 18.9 7.5 11.3 13   EP 434 - .1/4"
DIN ISO 6149-1 A G .3/8" 21.8 7.6 12.5 17   EP 434 - .3/8"
DIN ISO 6149-1 A G .1/2" 26.3 10.6 14.7 19   EP 434 - .1/2"
DIN ISO 6149-1 A G .3/4" 32.0 10.5 14.2 24   EP 434 - .3/4"
DIN ISO 6149-1 B G 1." 39.2 13.6 15.8 27   EP 434 - 1."
DIN ISO 6149-1 B G 1.1/4" 49.5 13.5 17.8 36   EP 434 - 1.1/4"
DIN ISO 6149-1 B G 1.1/2" 54.5 13.5 16.5 41   EP 434 - 1.1/2"
DIN ISO 6149-1 B G 2." 67.5 13.5 16.9 55   EP 434 - 2."
DIN 3852-1 B M 10 x 1 13.9 5.5 11.5 10   EP 434 - M 10 x 1
DIN 3852-1 A M 12 x 1.5 16.9 8.2 11.5 13   EP 434 - M 12 x 1.5
DIN 3852-1 A M 14 x 1.5 18.9 8.5 11.5 13   EP 434 - M 14 x 1.5
DIN 3852-1 A M 16 x 1.5 21.6 7.5 11.6 17   EP 434 - M 16 x 1.5
DIN 3852-1 A M 18 x 1.5 23.5 8.6 12.3 17   EP 434 - M 18 x 1.5
DIN 3852-1 A M 20 x 1.5 25.6 8.5 15.5 19   EP 434 - M 20 x 1.5
DIN 3852-1 A M 22 x 1.5 26.9 8.4 15.5 19   EP 434 - M 22 x 1.5
DIN 3852-1 A M 24 x 1.5 31.0 10.6 15.2 24   EP 434 - M 24 x 1.5
DIN 3852-1 A M 26 x 1.5 31.4 8.5 15.5 24   EP 434 - M 26 x 1.5
DIN 3852-1 A M 27 x 2 31.9 11.5 15.9 24   EP 434 - M 27 x 2
DIN 3852-1 B M 33 x 2 39.3 11.5 15.6 27   EP 434 - M 33 x 2
DIN 3852-1 B M 42 x 2 49.0 11.5 16.6 36   EP 434 - M 42 x 2
ISO 11926 A .7 / 16" - 20 UNF 20.6 10.0 10.2 13   EP 434 - .7 / 16" - 20 UNF
ISO 11926 A .1/ 2" - 20 UNF 22.6 9.6 11.3 13   EP 434 - .1/ 2" - 20 UNF
ISO 11926 A .9 / 16" - 18 UNF 24.8 9.5 11.3 13   EP 434 - .9 / 16" - 18 UNF
ISO 11926 A .5 / 8" - 18 UNF 24.7 10.5 13.2 17   EP 434 - .5 / 8" - 18 UNF
ISO 11926 A .3 / 4" - 16 UNF 25.5 8.9 14.5 17   EP 434 - .3 / 4" - 16 UNF
ISO 11926 A .7 / 8" - 14 UNF 33.7 12.5 13.6 19   EP 434 - .7 / 8" - 14 UNF
ISO 11926 A 1.1 /16" - 12 UN 40.3 12.5 13.4 24   EP 434 - 1.1 / 16" - 12 UN
ISO 11926 A 1.5 /16" - 12 UN 41.2 13.5 16.5 27   EP 434 - 1.5 / 16" - 12 UN
ISO 11926 A 1.5 / 8" - 12 UN 55.2 15.7 16.3 36   EP 434 - 1.5 / 8" - 12 UN
ISO 11926 A 1.5 / 8" - 16 UN 57.2 15.8 16.6 36   EP 434 - 1.5 / 8" - 16 UN

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
