EP 305  Push-In Full-Face Flange Protectors

The Original
These low cost full face flange protectors are the most universal in the market. Flexible fins ensure a tight fit into the center bore. Can be used on a variety of different sized flanges and flange classifications.


Stuff : LD-PE, low density polyethylene

Color : yellow



Push-In Full-Face Flange Protectors

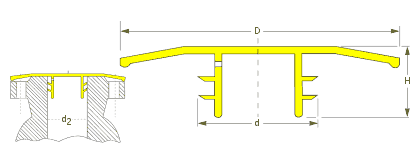

D d H SP Article No. Selection
DN 10 .3/8" 86.0 13.7 15.0 1.000   EP 305 / DN 10
DN 15 .1/2" 90.0 19.0 15.0 1.000   EP 305 / DN 15
DN 20 .3/4" 100.0 24.0 20.0 700   EP 305 / DN 20
DN 25 1." 110.0 30.0 20.0 500   EP 305 / DN 25
DN 32 1.1/4" 136.0 39.0 20.0 300   EP 305 / DN 32
DN 40 1.1/2" 146.0 45.0 20.0 250   EP 305 / DN 40
DN 50 2." 160.0 56.0 20.0 200   EP 305 / DN 50
DN 65 2.1/2" 180.0 72.0 20.0 200   EP 305 / DN 65
DN 80 3." 196.0 85.0 25.0 150   EP 305 / DN 80
DN 100 4." 216.0 109.0 25.0 100   EP 305 / DN 100
DN 125 5." 246.0 134.0 25.0 75   EP 305 / DN 125
DN 150 6." 280.0 161.0 35.0 40   EP 305 / DN 150
DN 200 8." 336.0 210.0 43.0 40   EP 305 / DN 200
DN 250 10." 390.0 262.0 41.0 28   EP 305 / DN 250
DN 300 12." 450.0 318.0 48.0 20   EP 305 / DN 300
DN 400 16." 586.0 410.0 62.0 10   EP 305 / DN 400

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
