EP 340  Plugs with Flat Head and Parallel Shank

Low-cost, quick fitting plugs suitable for most applications.
Convex sides to ensure secure fit.


Stuff : LD-PE, low density polyethylene

Color : natural

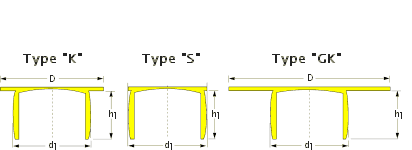

Plugs with Flat Head and Parallel Shank


d1 D h1 H M1 M2 M3 M4 DIN1 DIN2 Article No. Selection
7.2 14.0 4.8 6.8 M 8 M 8 x 1   K 2
7.2 14.0 4.6 6.8 M 8 M 8 x 1   S 2
8.4 14.0 5.3 7.1 M 10   K 3
8.4 14.0 5.3 7.3 M 10   S 3
9.0 14.0 4.5 6.5 M 10 x 1   K 4
9.0 14.0 4.1 6.2 M 10 x 1   S 4
10.4 14.0 4.6 7.0 M 12 M 12 x 1.5 PG 7   K 5
10.4 14.0 4.6 7.0 M 12 M 12 x 1.5 PG 7   S 5
10.7 14.0 4.7 7.0   K 501
11.7 16.0 5.8 9.0 M 14 M 12 x 1 M 12 x 1.5   S 7
11.7 16.0 6.5 8.5 M 14 M 12 x 1 M 12 x 1.5   K 7
12.3 16.0 6.5 8.5 M 14 x 1.5 .1/4"   S 9
12.3 16.0 6.5 8.5 M 14 x 1.5 .1/4"   K 9
13.7 20.0 7.2 9.5   S 10
13.7 20.0 7.0 10.0   K 10
14.3 20.0 5.5 7.5 M 16 M 16 x 1.5 PG 9   S 11
14.3 20.0 5.5 7.5 M 16 M 16 x 1.5 PG 9   K 11
15.6 20.0 7.6 10.0 M 18 .3/8"   S 12
15.6 20.0 8.0 10.0 M 18 .3/8"   K 12
16.5 22.0 5.5 7.5 M 18 x 2 M 18 x 1.5   S 14
16.5 22.0 5.5 7.5 M 18 x 2 M 18 x 1.5   K 14
17.1 22.0 8.0 10.5 M 20   K 15
17.1 22.0 7.5 10.2 M 20   S 15
18.4 25.0 8.0 10.5 M 20 x 1.5   K 17
18.4 25.0 8.0 10.5 M 20 x 1.5   S 17
19.6 25.0 8.0 10.5 M 22 .1/2" PG 13.5   K 18
19.6 25.0 8.0 10.5 M 22 .1/2" PG 13.5   S 18
19.6 30.0 8.0 10.5 M 22 .1/2" PG 13.5   K 18 GK
21.2 25.0 7.5 10.0 M 24 M 22 x 1.5 .5/8"   K 181
21.2 25.0 7.5 9.5 M 24 M 22 x 1.5 .5/8"   S 181
21.7 25.0 7.5 10.0 M 24 x 2 PG 16   K 182
21.7 25.0 7.5 10.0 M 24 x 2 PG 16   S 182
20.7 25.0 7.5 9.9 M 22 x 1.5   S 19
20.7 24.5 7.5 10.2 M 22 x 1.5   K 19
22.4 28.0 8.5 11.5 M 24 x 1.5   K 21
22.4 28.0 8.5 11.5 M 24 x 1.5   S 21
23.6 28.0 8.5 11.5 M 27   K 211
23.6 28.0 8.5 11.5 M 27   S 211
24.6 28.0 8.5 11.5 M 26 x 1.5 .3/4"   K 23
24.6 28.0 8.0 12.0 M 26 x 1.5 .3/4"   S 23
25.5 28.0 7.5 9.5 M 27 x 2 M 27 x 1.5   K 232
25.5 28.0 7.0 10.0 M 27 x 2 M 27 x 1.5   S 232
26.5 28.0 9.0 12.0 M 30 M 28 x 1.5   K 233
26.5 28.0 9.0 12.0 M 30 M 28 x 1.5   S 233
29.0 36.0 12.0 15.0 M 30 x 2 M 30 x 1.5 .7/8" PG 21   K 24
29.0 36.0 12.0 15.0 M 30 x 2 M 30 x 1.5 .7/8" PG 21   S 24
31.0 36.0 11.0 14.0 M 33 M 30 x 1.5 .7/8"   K 241
31.8 36.0 10.0 12.5 M 36 M 33 x 2 M 33 x 1.5 1."   K 25
31.8 36.0 10.0 12.5 M 36 M 33 x 2 M 33 x 1.5 1."   S 25
33.5 36.0 11.0 24.3 M 35 x 1.5   K 26
33.5 36.0 12.0 15.0 M 35 x 1.5   S 26
34.8 42.0 15.0 18.0 M 36 x 2   K 27 / H 19
36.5 42.0 15.0 18.0 M 39 x 3 M 38 x 1.5 1.1/8" PG 29   K 28
36.5 42.0 14.5 17.6 M 39 x 3 M 38 x 1.5 1.1/8" PG 29   S 28
38.4 42.0 10.0 12.5 M 42 M 39 x 2 M 39 x 1.5   K 30
38.4 42.0 9.5 12.0 M 42 M 39 x 2 M 39 x 1.5   S 30
39.0 42.0 15.0 18.0 M 40 x 1.5   K 301
39.0 42.0 15.0 18.0 M 40 x 1.5   S 301
40.0 42.0 14.6 17.7 M 42 x 3 M 40 x 1.5 1.1/4" PG 36   K 31
40.0 42.0 14.5 18.0 M 42 x 3 M 40 x 1.5 1.1/4" PG 36   S 31
46.0 55.0 18.0 21.0 M 48 x 3 M 48 x 2 M 45 x 1.5 1.1/2"   K 32
46.0 55.0 17.0 20.6 M 48 x 3 M 48 x 2 M 45 x 1.5 1.1/2"   S 32
48.5 55.0 12.0 15.0 M 48 x 1.5   K 33
48.5 55.0 12.0 15.0 M 48 x 1.5   S 33
51.5 54.2 17.0 21.0 M 56 x 4 M 52 x 2 M 52 x 1.5 1.3/4"   K 35
51.5 55.0 17.0 21.0 M 56 x 4 M 52 x 2 M 52 x 1.5 1.3/4"   S 35
55.0 63.0 17.4 20.5 M 56 x 2 M 55 x 1.5 PG 42   K 37
55.0 63.0 17.3 21.0 M 56 x 2 M 55 x 1.5 PG 42   S 37
58.0 63.0 18.0 21.0 M 59 x 2 M 58 x 1.5 2."   K 40
58.0 63.0 18.0 21.0 M 59 x 2 M 58 x 1.5 2."   S 40
65.0 70.0 17.4 20.5   K 42
65.0 70.0 18.0 21.0   S 42
78.0 83.0 18.0 21.0   K 43
78.0 83.0 18.0 21.0   S 43
86.0 91.0 17.5 20.0 3."   K 44

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
