EP 190  Driveshaft Protection Caps

Heavy duty protection for cylindrical driving shafts including fitting key


Stuff : LD-PE, low density polyethylene

Color : yellow

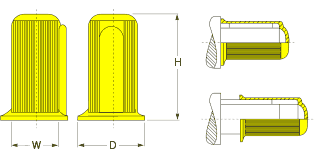

Driveshaft Protection Caps


Shaft diameter
W
Protection Cap
D
Protection Cap
H
SP Article No. Selection
9.0 14.5 24.0 15.000   EP 190 W 9
11.0 17.5 27.5 8.000   EP 190/W 11
14.0 22.5 35.0 4.500   EP 190/W 14
15.0 25.5 32.0 4.500   EP 190/W 15
16.0 25.5 47.0 2.700   EP 190/W 16
19.0 30.5 47.0 1.700   EP 190/W 19
20.0 32.0 58.5 1.500   EP 190/W 20
22.0 35.5 58.5 1.000   EP 190/W 22
24.0 38.5 58.5 900   EP 190/W 24
25.0 40.0 70.0 700   EP 190/W 25
28.0 45.0 70.0 600   EP 190/W 28
30.0 48.0 93.5 350   EP 190/W 30
32.0 51.0 93.5 500   EP 190/W 32
35.0 56.0 93.5 400   EP 190/W 35
38.0 61.0 93.5 350   EP 190/W 38
42.0 67.0 127.5 230   EP 190/W 42
45.0 72.0 117.5 200   EP 190/W 45
48.0 77.0 127.5 170   EP 190/W 48
55.0 88.0 127.5 125   EP 190/W 55
60.0 96.0 164.0 80   EP 190/W 60
65.0 104.0 164.0 60   EP 190/W 65
75.0 112.0 164.0 50   EP 190/W 75

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
