EP 300  Valve Flange Protection Plug

Provides cushioned protection for flange face. Suitable for DIN 2402 flanges.


Stuff : LD-PE, low density polyethylene

Color : yellow



Valve Flange Protection Plug

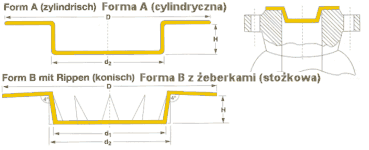

DIN 2402 d1 d2 Plug Design D H SP Article No. Selection
DN 10 9.0 10.5 tapered 40.0 10.0 .-.   EP 300 / 010 - R
DN 15 12.2 16.8 tapered 45.0 10.0 5.000   EP 300 / 015 - R
DN 20 16.5 22.5 tapered 58.0 14.5 2.000   EP 300 / 020 - R
DN 25 23.0 26.0 tapered 68.0 15.0 1.500   EP 300 / 025 - R
DN 32 30.0 33.5 tapered 78.0 15.0 1.000   EP 300 / 032 - R
DN 40 34.5 41.5 tapered 88.0 15.0 700   EP 300 / 040 - R
DN 50 45.0 51.6 tapered 103.6 15.0 500   EP 300 / 050 - R
DN 65 58.5 66.0 tapered 122.0 20.0 250   EP 300 / 065 - R
DN 80 74.0 81.0 tapered 138.0 20.0 200   EP 300 / 080 - R
DN 100 94.0 102.0 tapered 162.0 20.0 100   EP 300 / 100 - R
DN 125 118.0 127.0 tapered 188.0 20.0 125   EP 300 / 125 - R
DN 150 144.0 152.0 tapered 213.0 20.0 80   EP 300 / 150 - R
DN 200 193.0 202.0 tapered 268.0 25.0 60   EP 300 / 200 - R
DN 250 247.0 252.0 tapered 344.0 25.0 50   EP 300 / 250
DN 300 303.0 cylindrical 408.0 20.5 52   EP 300 / 300
DN 350 355.0 cylindrical 455.0 21.0 40   EP 300 / 350
DN 400 406.0 cylindrical 510.0 32.0 40   EP 300 / 400

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
