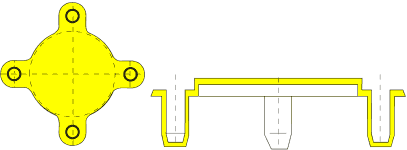

EP 304  Stud Hole Fitting Flange Pro-Tectors

Suitable for ASA/ANSI/BS1560 flanges. Quick fitting. Simply insert plugs into the bolt holes.


Stuff : LD-PE, low density polyethylene

Color : blue



Stud Hole Fitting Flange Pro-Tectors


Dimension Nom. Diameter lbs Series/Pressure Group SP Article No. Selection
.1/2" 125. 150 lbs 800   EP 304 / .1/2" / 150
.1/2" 300. 600 lbs 800   EP 304 / .1/2" / 300
.3/4" 125. 150 lbs 800   EP 304 / .3/4" / 150
.3/4" 300. 600 lbs 500   EP 304 / .3/4" / 300
1." 125. 150 lbs 600   EP 304 / 1." / 150
1." 300. 600 lbs 400   EP 304 / 1." / 300
1.1/2" 125. 150 lbs 400   EP 304 / 1.1/2" / 150
1.1/2" 300. 600 lbs 250   EP 304 / 1.1/2" / 300
2." 125. 150 lbs 250   EP 304 / 2." / 150
2." 300. 600 lbs 200   EP 304 / 2." / 300
3." 125. 150 lbs 200   EP 304 / 3." / 150
3." 300. 600 lbs 175   EP 304 / 3." / 300
4." 125. 150 lbs 200   EP 304 / 4." / 150
4." 300 lbs 175   EP 304 / 4." / 300
6." 125. 150 lbs 125   EP 304 / 6." / 150
6." 300 lbs 125   EP 304 / 6." / 300
8." 150 lbs 100   EP 304 / 8." / 150
8." 300 lbs 100   EP 304 / 8." / 300
10." 150 lbs 60   EP 304 / 10." / 150
10." 300 lbs 60   EP 304 / 10." / 300
12." 150 lbs 40   EP 304 / 12." / 150
12." 300 lbs 30   EP 304 / 12." / 300

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
