EPN 710  Brass Locknuts flangeless

Locknuts are required wherever varnished, anodized and powder coated housings are used. For secure tightening of cable glands and accessories.

flangeless

Material   :   Brass, nickel plated


Brass Locknuts flangeless

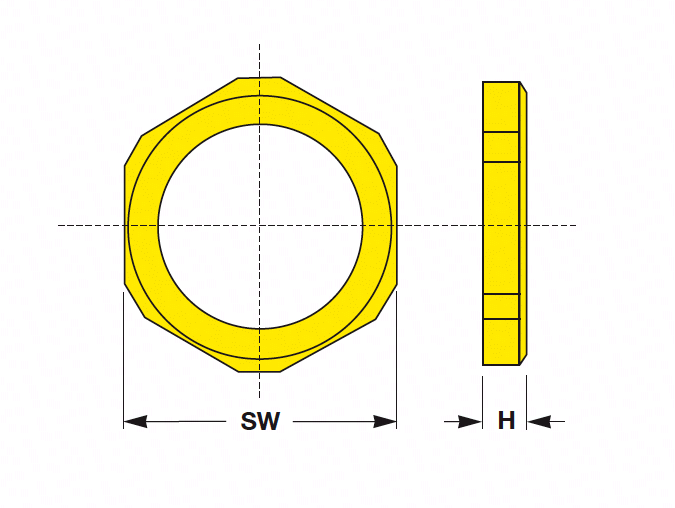

Thread Size Depth
H
Spanner Size
SW
Article No. Selection
M 12x1.5 2.8 15   EPN 710/ M 12
M 16x1.5 2.8 19   EPN 710/ M 16
M 20x1.5 3.0 24   EPN 710/ M 20
M 25x1.5 3.5 30   EPN 710/ M 25
M 32x1.5 4.0 36   EPN 710/ M 32
M 40x1.5 4.5 46   EPN 710/ M 40
M 50x1.5 5.0 60   EPN 710/ M 50
M 63x1.5 5.5 70   EPN 710/ M 63
PG 7 2.8 15   EPN 710/ PG 7
PG 9 2.8 18   EPN 710/ PG 9
PG 11 3.0 21   EPN 710/ PG 11
PG 13.5 3.0 23   EPN 710/ PG 13
PG 16 3.0 26   EPN 710/ PG 16
PG 21 3.5 32   EPN 710/ PG 21
PG 29 4.0 41   EPN 710/ PG 29
PG 36 5.0 51   EPN 710/ PG 36
PG 42 5.0 60   EPN 710/ PG 42
PG 48 5.5 64   EPN 710/ PG 48

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
